Assembly (continued)

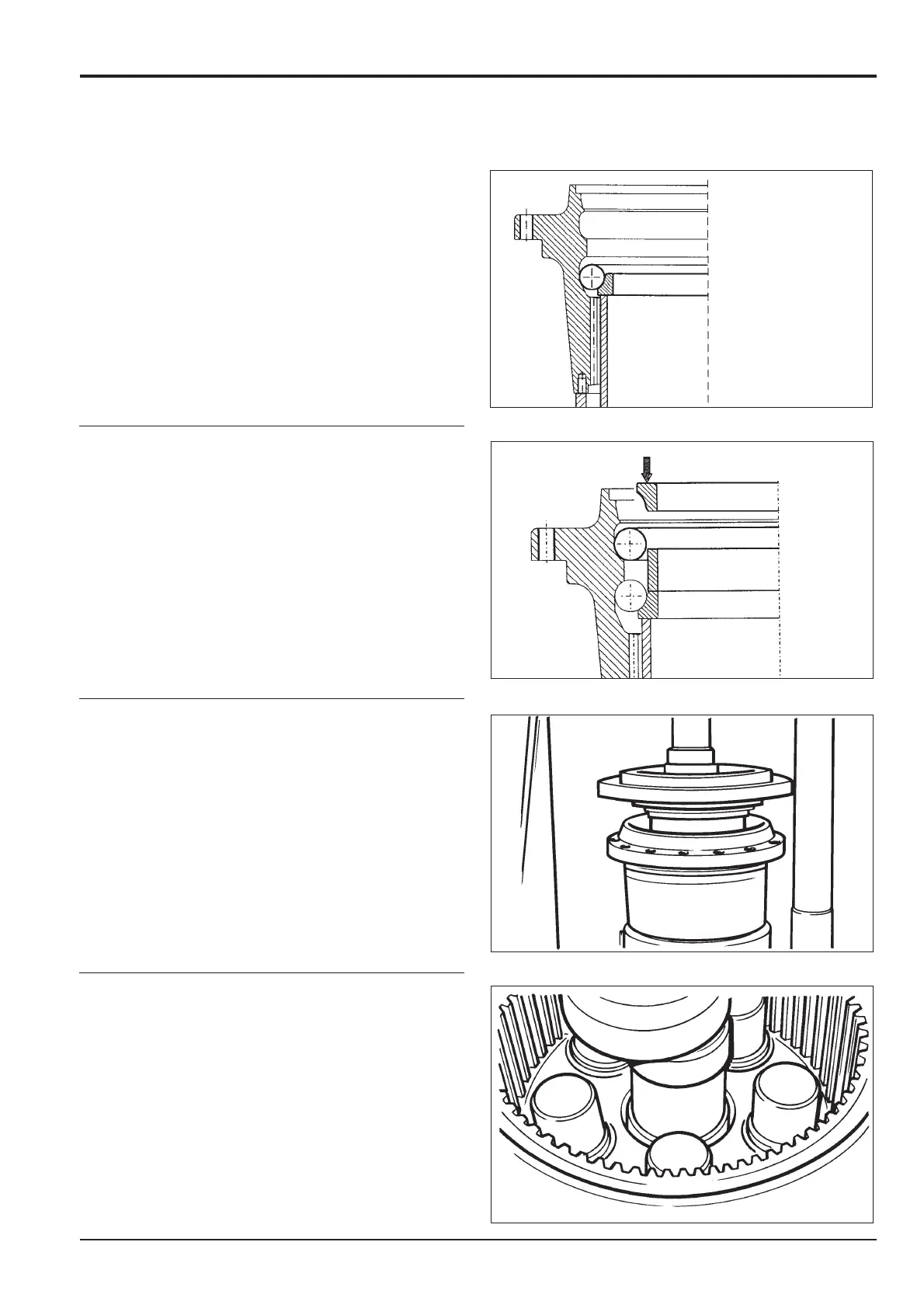

5. Fit the lower ball bearing sets in the housing, holding the
inner raceway in position with the spacer tools S1
and S2.
6. Place the bearing spacer into position and drop the
upper ball bearing sets into position. Then fit the inner
race.
7. Place the (17) flanged hub, inside the (14) gearbox
housing.
Using a press and a metal drift, push the (17) flanged
hub, against the shoulder on the (14) gearbox housing,
until it is seated.
8. By using a press and a drift, assemble the (16) centering
ring onto the (17) flanged hub.
