Drive Sprocket
Wear Limits

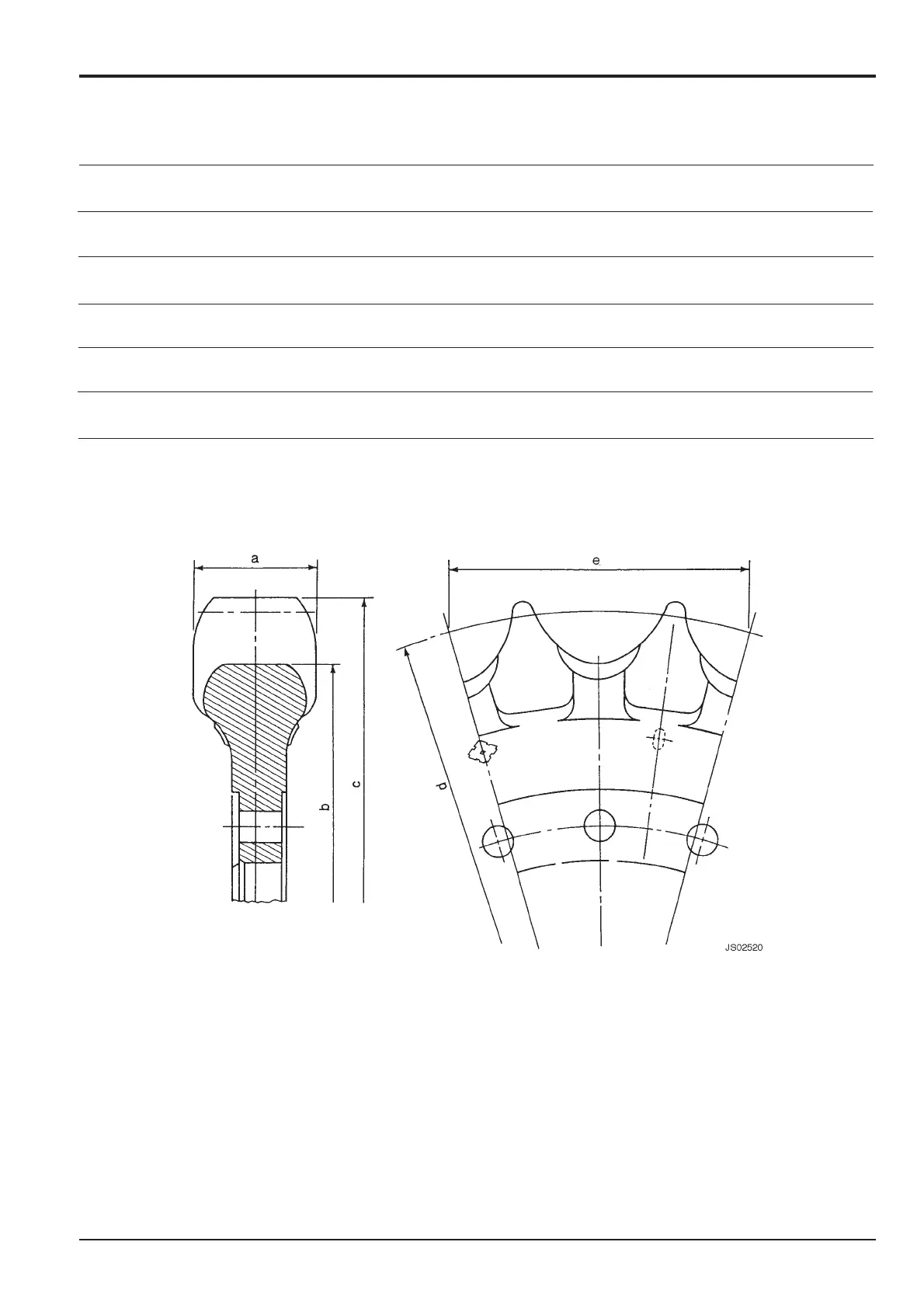

Item Dimension Machine Standard Size Service Limit Action
mm in mm in
Width a JS200 66 2.59 60 2.59 Renew
JS240
Diameter b JS200 582.5 22.93 576.5 22.69 Renew
JS240
Diameter c JS200 659 25.9 65.3 25.7 Renew
JS240
Diameter d JS200 644.6 25.37 Renew
JS240
Centres e JS200 190 7.4 Renew
JS240
*
