Routine Maintenance
Access Panels
122 122
9811/5700-7
Engine Side Panels
The machine is fitted with engine side panels A, located
either side of the engine. The panels can be removed to
provide better access for maintenance tasks.

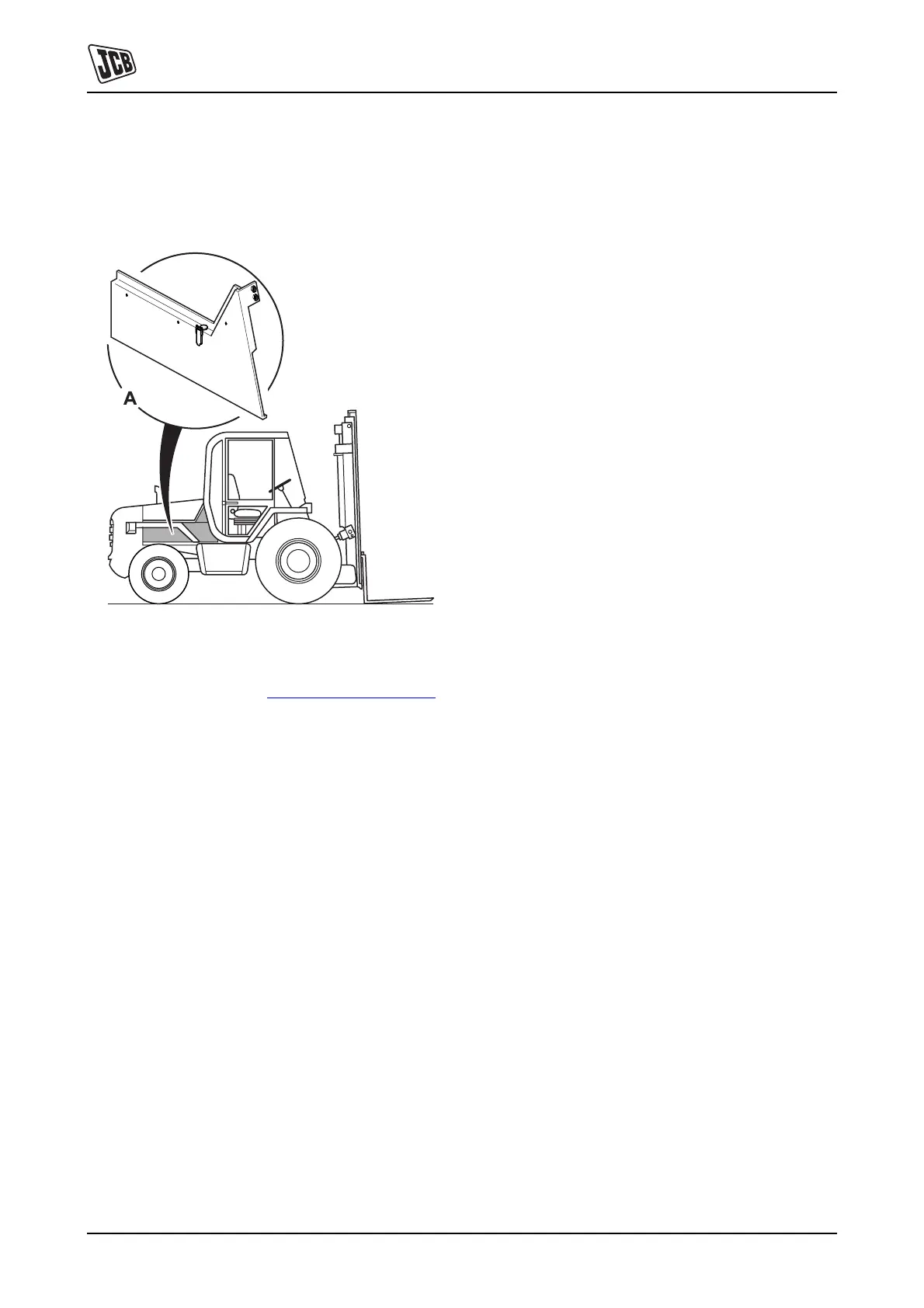

Fig 86.
To remove a panel:
1 Open the engine cover. K
Access Panels ( T 121).
2 Remove the four panel fasteners, located inside the
engine compartment.
3 Lift the panel clear.
Important: The engine side panels must be replaced upon
completion of maintenance work.
