Operation
Operating Levers
46 46
9811/5700-7
Auxiliary Controls
The machine can be fitted with a single or twin auxiliary
circuit. These can be used to operate optional attachments
when connected to the quick release couplings J mounted
at the front of the machine. K
Optional
Attachments ( T 163).

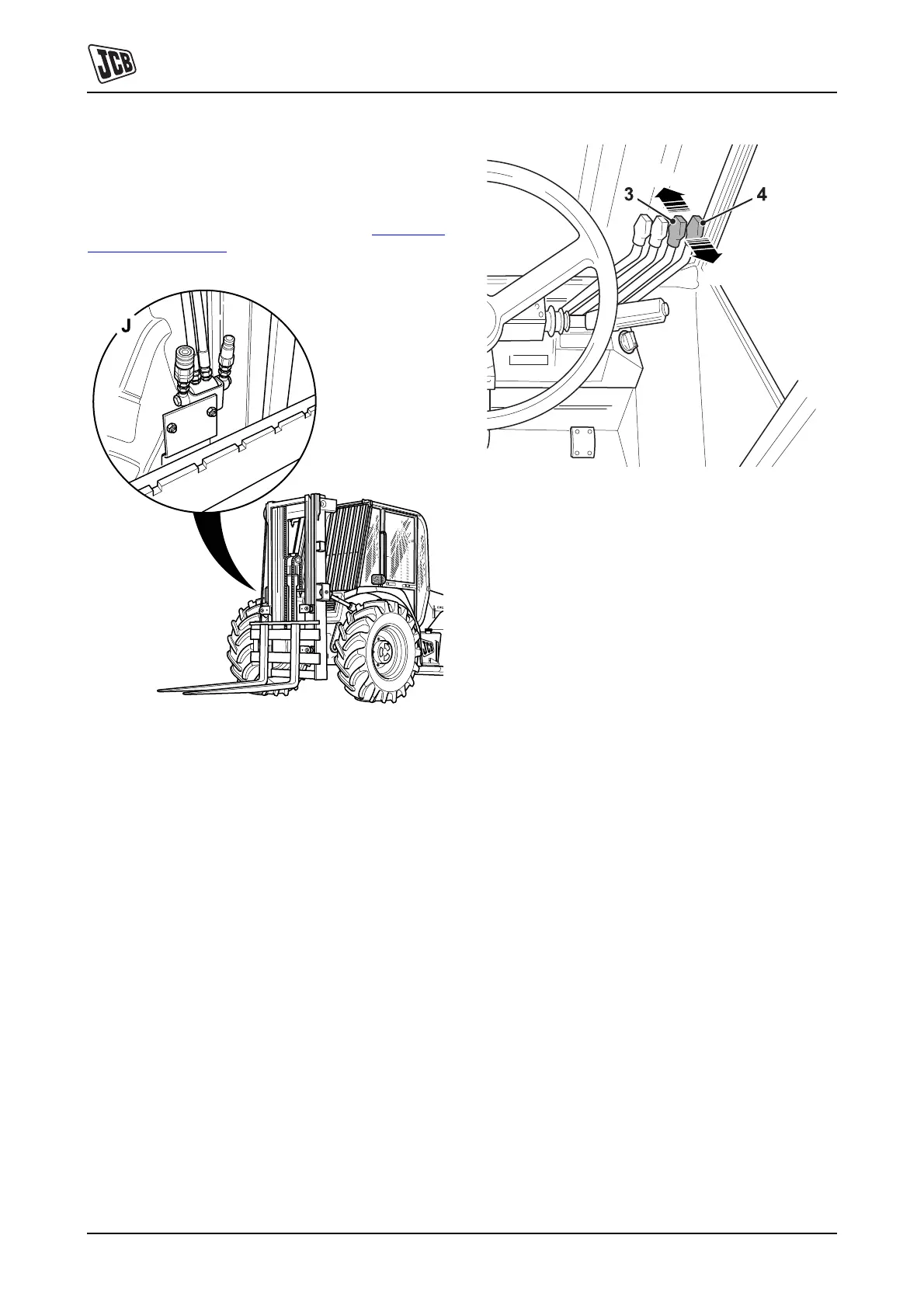

Fig 36. Single Auxiliary Installation
Single Auxiliary Option
To operate the auxiliary circuit:
– On machines fitted with a standard carriage, move
lever 3 in direction G or H depending on the
attachment fitted or the function required.
– On machines fitted with a Sideshift carriage, move
lever 4 in direction G or H depending on the
attachment fitted or the function required.
Fig 37.
Twin Auxiliary Option
To operate the auxiliary circuit, move lever 3 or 4 in
direction G or H depending on the attachment fitted or the
function required.
H
G
