jcb S2632E User Manual

About the Product
Description
7 9831/3200-3 7

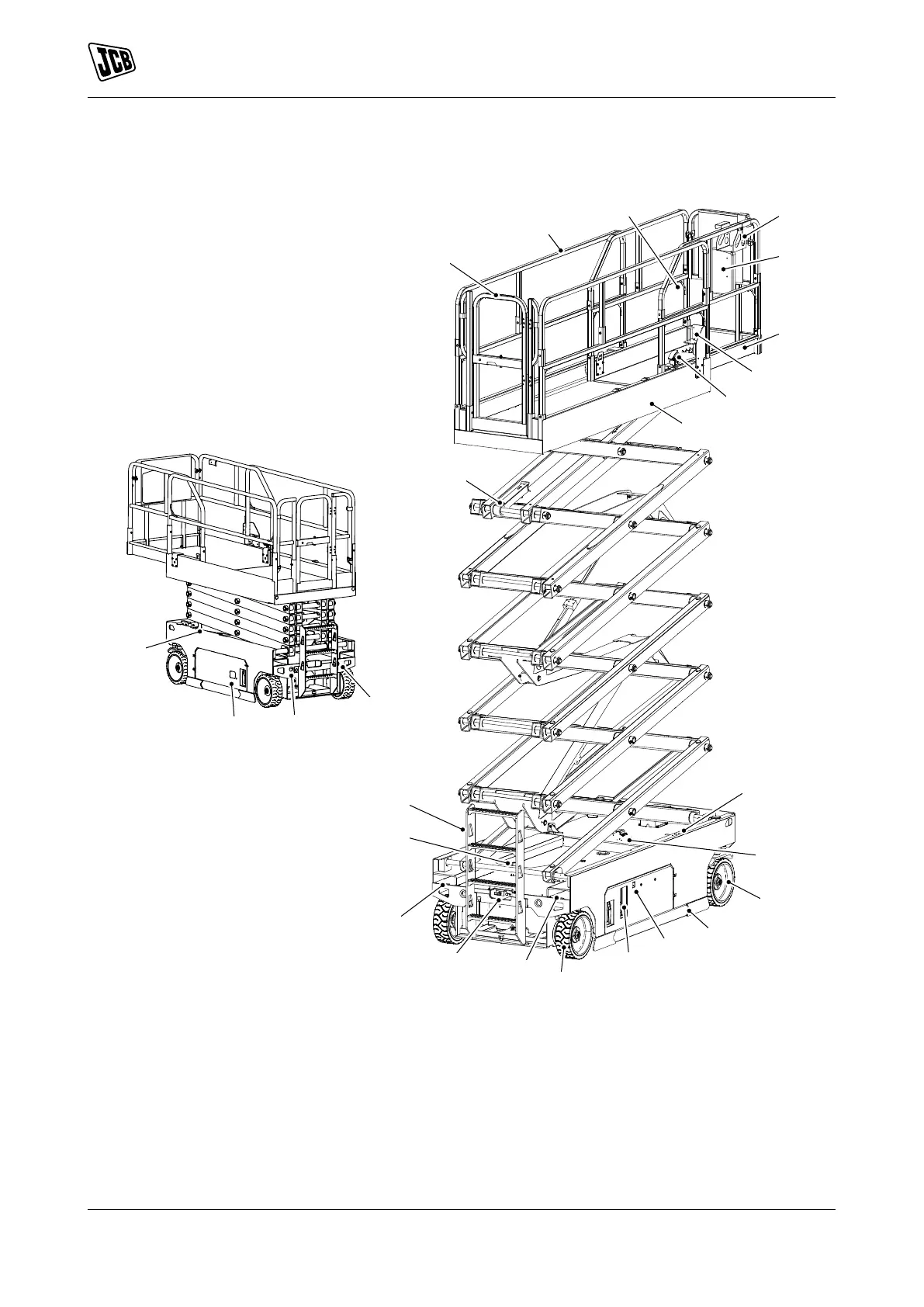

Main Component Locations
Figure 3.
K
W
U
T
S
R
K
L
M
N
Q
P
S
V
F
J
G
H
A
B
C
D
E
X
Y
Z
A Gate B Guardrail
C Harness fastening point D Platform control panel
E Operator's Manual F Platform extension
G AC (Alternating Current) Power socket (option) H Extension platform pedal
J Main platform K Warning lights
L Tilt sensor M Front wheel (steering)
N Pot hole protection plate P MECU (Machine Electronic Control Unit) display
Q Ground controller R Rear wheel
S Lift point/forklift position T Manual release valve and emergency lowering
handle
U Pot hole activation plungers V Ladder
W Safety strut X Battery charger

jcb S2632E Specifications

General

Machine Width	0.81 m
Power Source	Electric
Drive Speed - Stowed	4.0 km/h
Drive Speed - Elevated	0.8 km/h
Gradeability	25%
Tyre Type	Non-marking
Power Source Voltage	24V
Machine Length	2.3 m
Machine Height	2.3 m
