jcb S2632E User Manual

Operation
Operating Levers/Pedals
29 9831/3200-3 29
Operating Levers/Pedals
Control Layouts
CAUTION Keep the machine controls clean and dry. Your hands and feet could slide off slippery controls.
If that happens you could lose control of the machine.
Ground Controller
WARNING Do not operate the machine with the ground controller when there are personnel in the platform
except in an emergency.

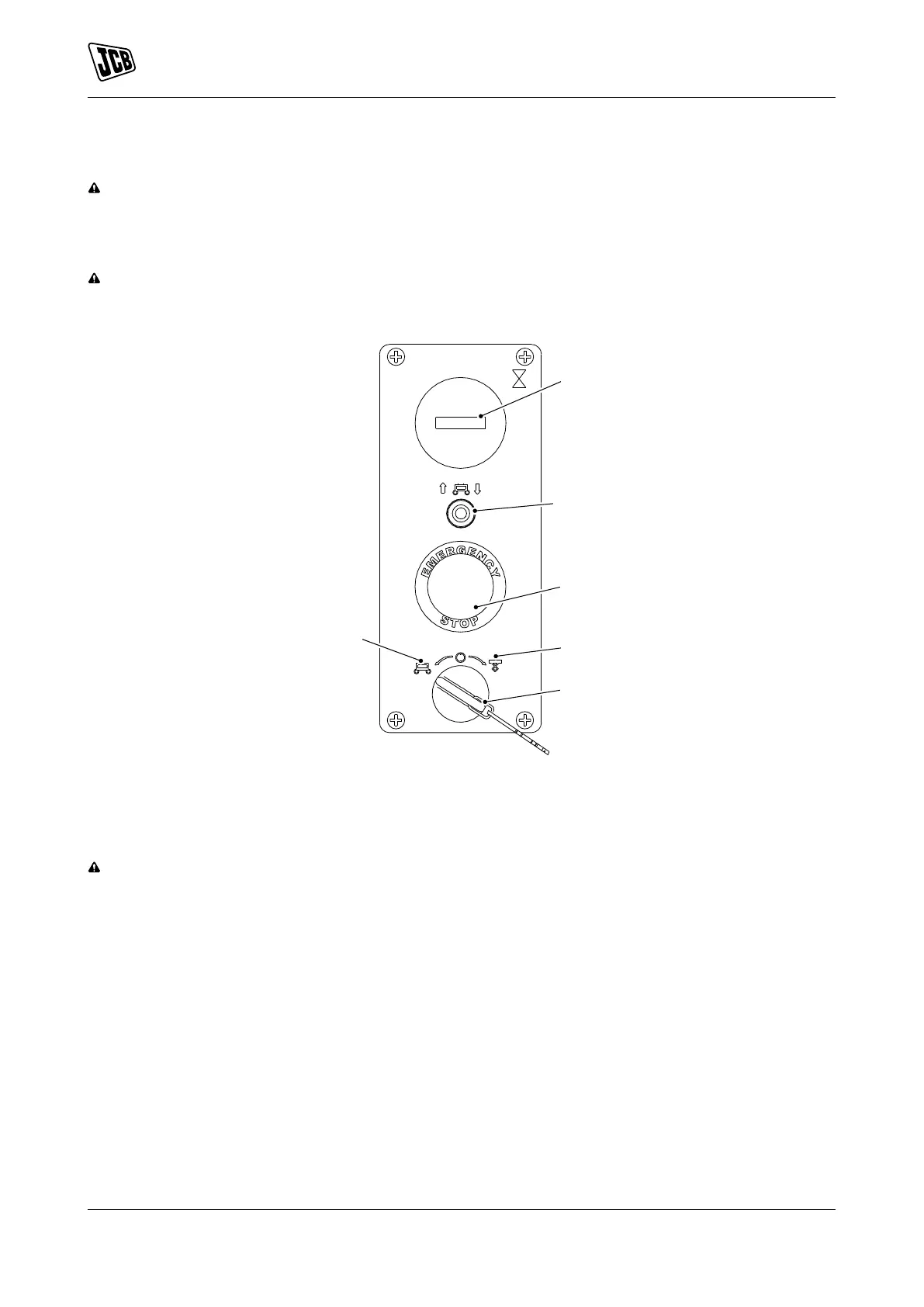

Figure 17.
E
F
AA
B
C
D
A Ground control position B Platform control position
C Key switch D Platform raising/lowering toggle switch
E Emergency stop switch F Hourmeter
Platform Controller
WARNING Do not drive the machine with the platform raised except on smooth, firm and level surface free
of obstructions and pot holes.

jcb S2632E Specifications

General

Machine Width	0.81 m
Power Source	Electric
Drive Speed - Stowed	4.0 km/h
Drive Speed - Elevated	0.8 km/h
Gradeability	25%
Tyre Type	Non-marking
Power Source Voltage	24V
Machine Length	2.3 m
Machine Height	2.3 m
