jcb S2632E User Manual

Operation
Battery Isolator
22 9831/3200-3 22
Battery Isolator
General
WARNING The batteries remain live even when the isolator key is removed.
Disconnect the Machine Electrics:
1. Turn the key switch to the off position.
2. Get access to the battery isolator.
Refer to: Access Apertures (Page 63).
3. Disconnect the battery isolator by pulling handle. Refer to Figure 13.
Connect the Machine Electrics:
1. Make sure the key switch is at off position.
2. Connect the battery isolator.

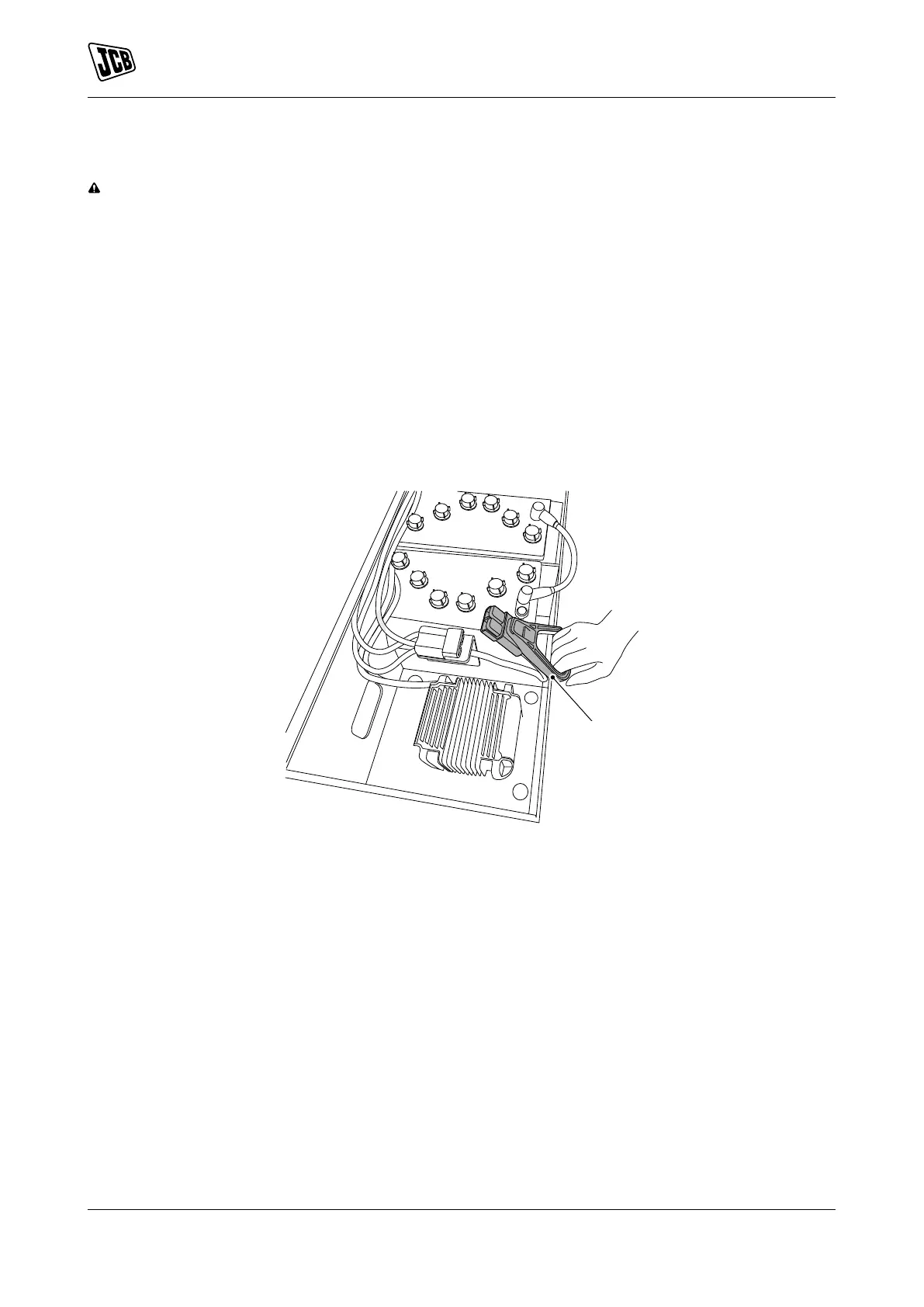

Figure 13. Lead Acid Battery
A
A Battery isolator

jcb S2632E Specifications

General

Machine Width	0.81 m
Power Source	Electric
Drive Speed - Stowed	4.0 km/h
Drive Speed - Elevated	0.8 km/h
Gradeability	25%
Tyre Type	Non-marking
Power Source Voltage	24V
Machine Length	2.3 m
Machine Height	2.3 m
