jcb TM320 - Hydraulic Quickhitch

03 - Attachments, Couplings and Load Handling
09 - Lift Arm Quickhitch
06 - Hydraulic Quickhitch
03 - 8 9813/2350-5 03 - 8
06 - Hydraulic Quickhitch
Lubricate .......................................................... 03-8
Remove and Install ......................................... 03-9
Lubricate
There are two greasing points for the lubrication of

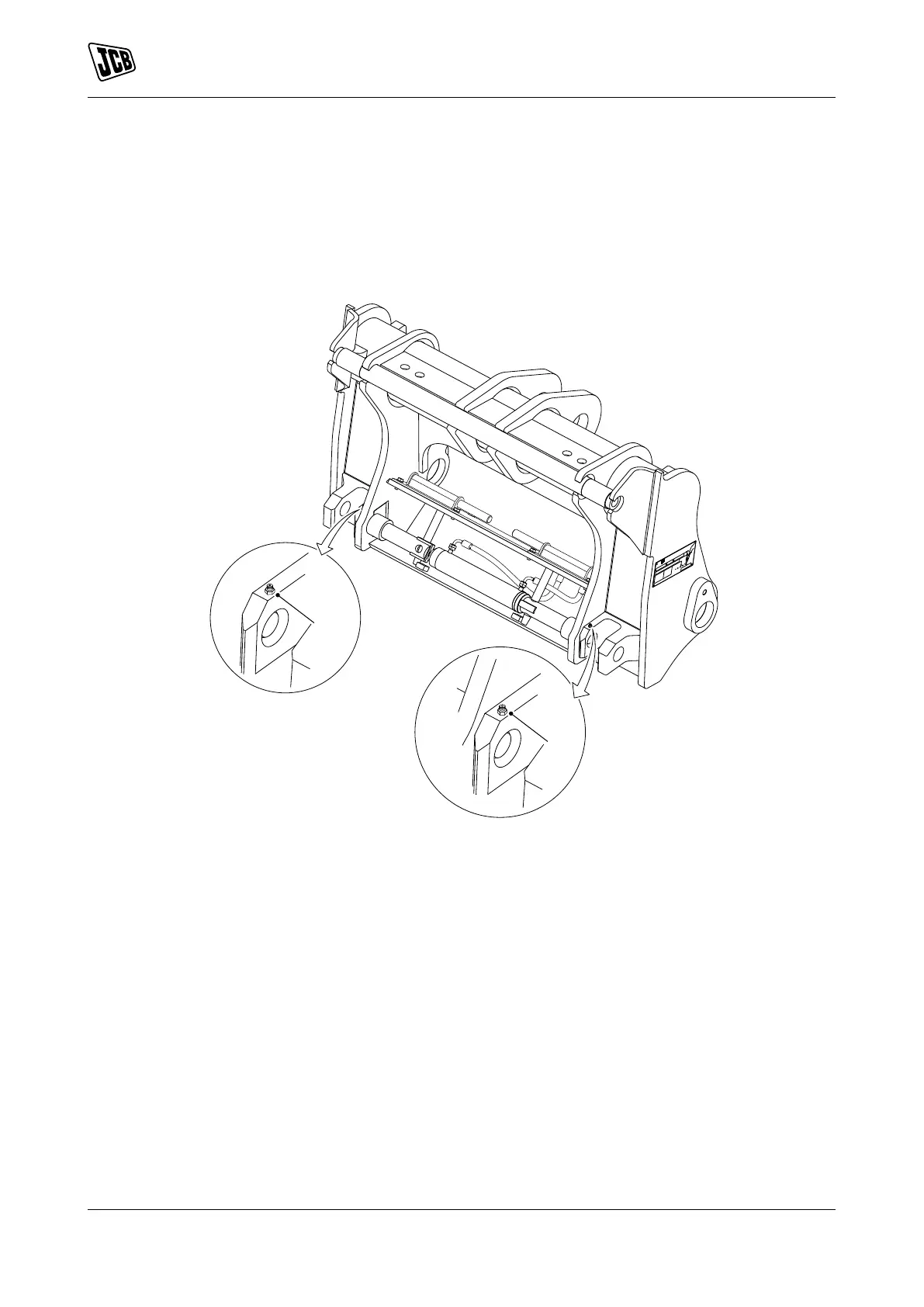

the quickhitch. Refer to Figure 4.
Figure 4.
2
1
