jcb TM420 User Manual

27 - Driveline
06 - Semi-Automatic Gearbox
12 - Clutch - Ratio
27 - 127 9813/6850-2 27 - 127

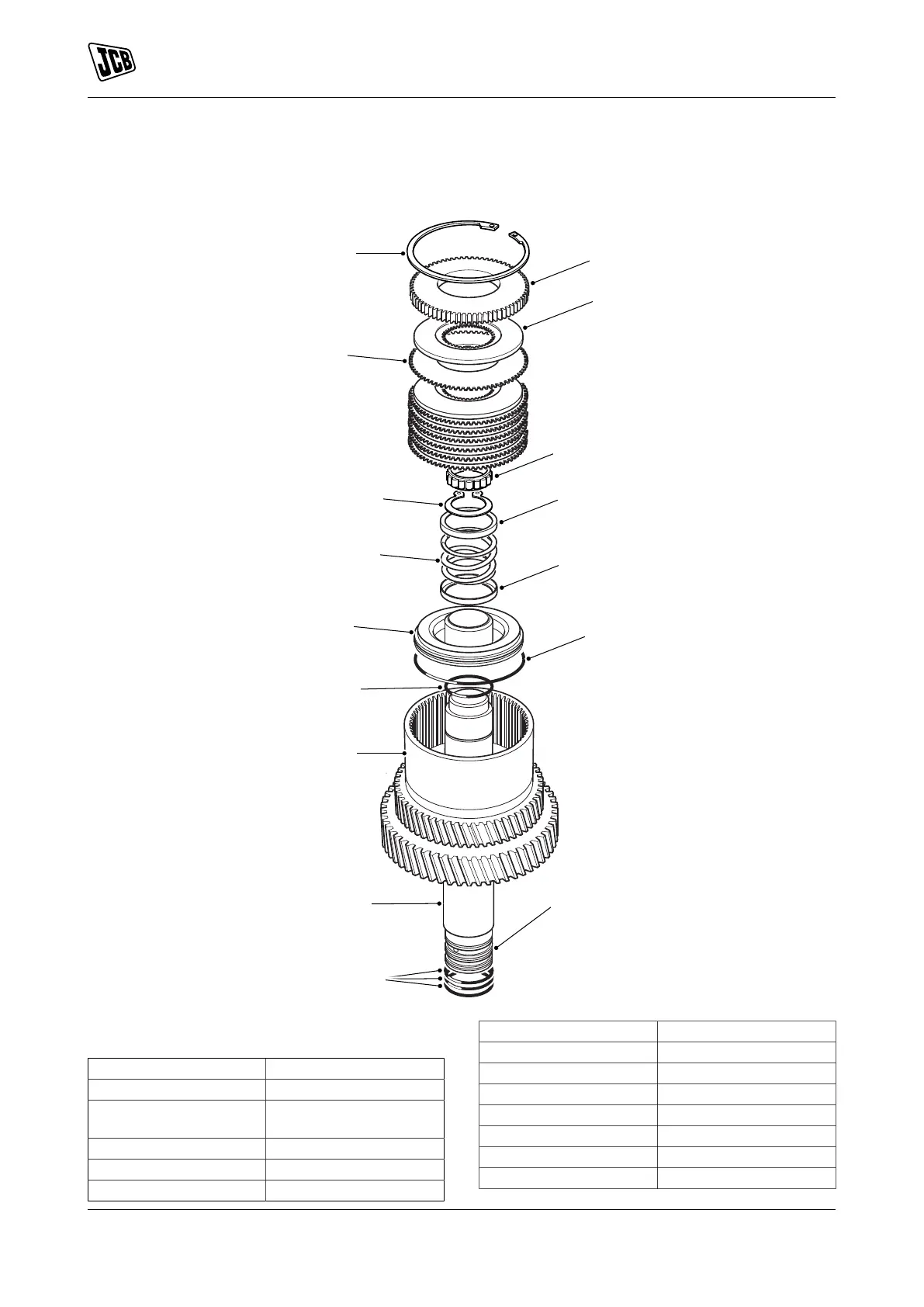

Figure 568.
B
R
S
M
Q
P
N
K
G
F
D
C
L
J
H
E
Table 242.
Item Description
B Circlip 1
C Thick pressure counter
plate
D Friction plate
E Counter plate
F Roller bearing race
Item Description
G Upper spring cup
H Circlip 2
J Spring
K Lower spring cup
L Piston
M Clutch shaft
N O-ring seal 2

jcb TM420 Specifications

General

Engine Power	108 kW
Transmission	4-speed powershift
Travel Speed	40 km/h
Maximum Lift Capacity	4, 200 kg
Bucket Capacity	1.8 - 2.2 m³
