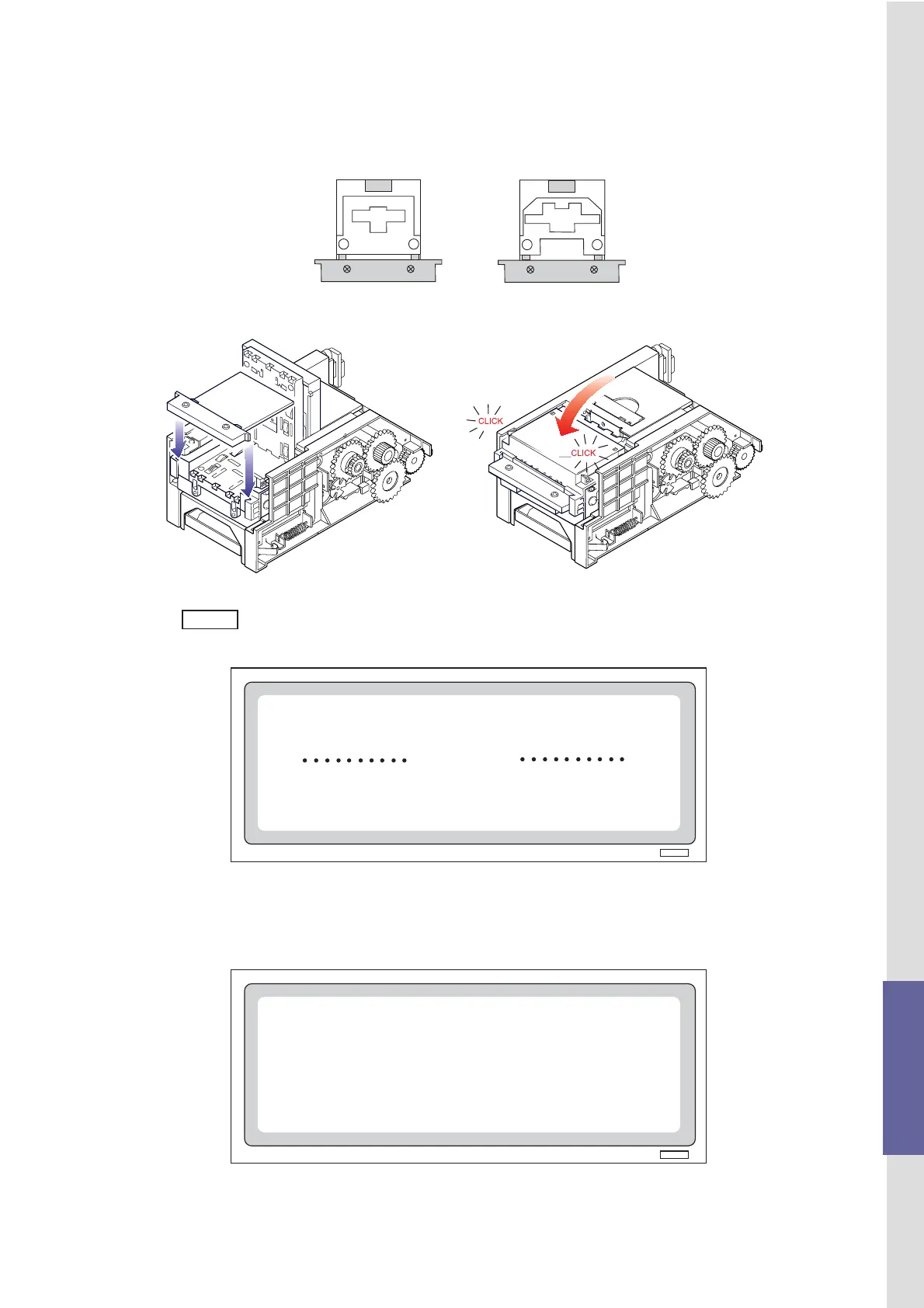

(3) Insert the white calibration paper (“KS-030” for WBA-12/13 and “KS-032” for WBA-22/23/24/25) as shown
below, and close the acceptor head. Make sure that the tabs on both side of the acceptor head are firmly
locked.
KS-030
(Part#: 055155)
KS-032
(Part #: 057487)
.
Adjusting XXXX
<scr 3>
Set Black reference paper. Hit Enter Key.
Adjustment BAR Sensor
(4) Press the ENTER key to start calibration. Do not move the acceptor head and calibration paper during
calibration.
<scr 4>
(5) When screen 4 appears, insert the black calibration paper.
Modelnumbers
Specifications
Operation Manual
Communication
Specifications
Disassembly
Assembly
Wiring Diagram Trouble Shooting
Calibration
Software Download
Parts List
WBA-SS Service Manual - 3 -
