Jconcepts BJ4 - Steering and Chassis Assembly; Steering Assembly Process

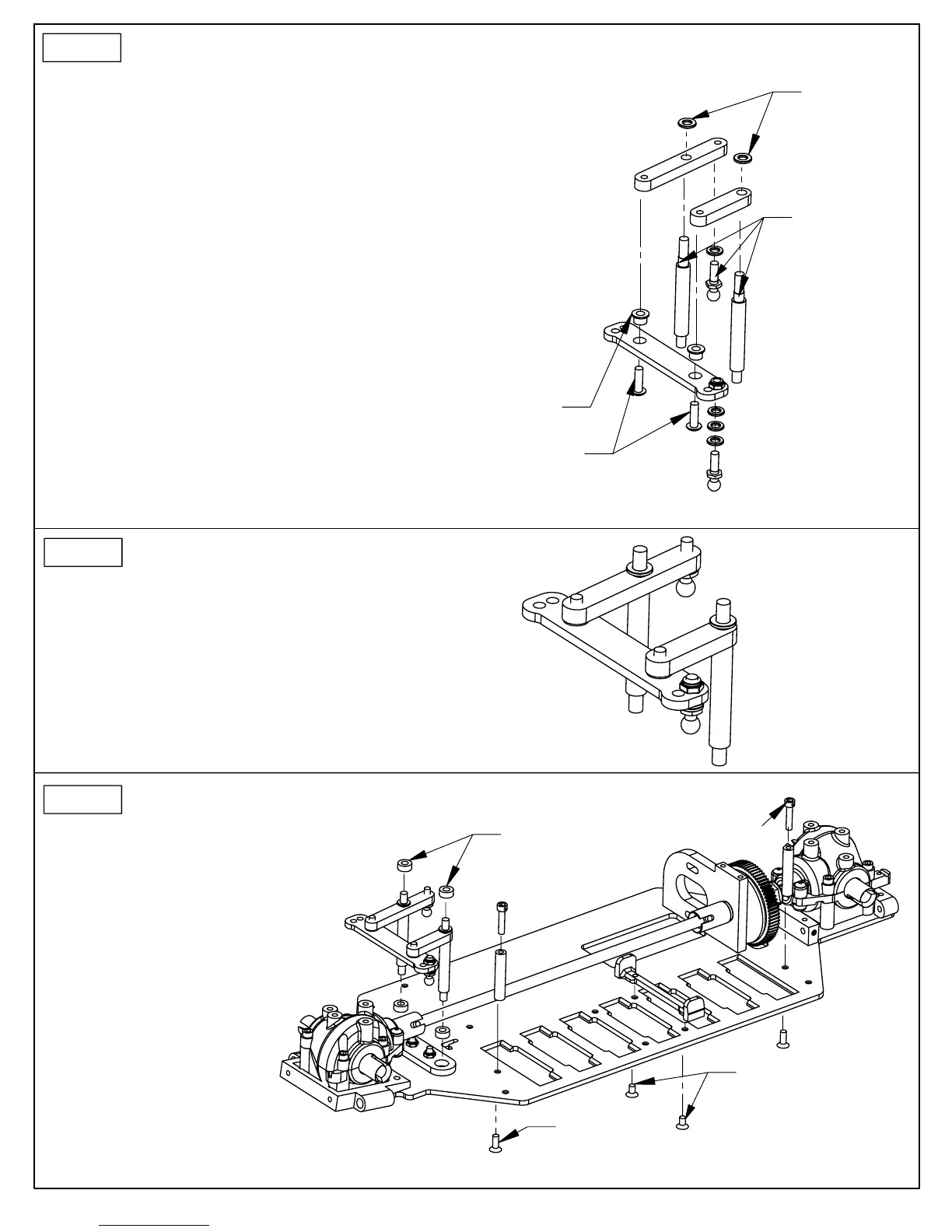

STEERING ASSEMBLY:
1. THREAD BOTH STEERING POSTS INTO THE STEERING BELLCRANKS AS SHOWN.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
2. SLIDE ONE .030" NYLON WASHER ONTO THE TOP OF EACH STEERING POST.
3. SLIDE ONE .030" ALUMINUM WASHER ON TO A SHORT BALL END AND
FASTEN IT TO THE LONG BELLCRANK AS SHOWN.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
4. SLIDE THREE .030" ALUMINUM WASHERS ONTO A LONG BALL END.
INSERT THE BALL END WITH THE THREE WASHERS INTO THE BACK
HOLE OF THE GRAPHITE STEERING RACK. SECURE THE BALL
END WITH ONE 4-40 MINI LOCKNUT. REPEAT FOR OTHER SIDE.
5. INSERT A STEERING BUSHING INTO THE GRAPHITE STEERING RACK.
(NOTE DIRECTION) SLIDE ONE 4-40 X 3/8" BUTTON HEAD SCREW
UP THROUGH THE BOTTOM OF THE RACK AND TIGHTEN THE SCREW
INTO THE BELLCRANK. REPEAT FOR OTHER SIDE.
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
COMPARE STEERING ASSEMBLY
APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND
NOTE DIRECTION
APPLY A SMALL
AMOUNT OF
THREAD LOCKING
COMPOUND
NYLON
STEERING AND CHASSIS COMPONENT ASSEMBLY:
1. ATTACH EACH BATTERY POST TO THE CHASSIS
WITH ONE 4-40 X 3/8" FLAT HEAD SCREW.
(APPLY THREAD LOCKING COMPOUND)
2. THREAD ONE SOCKET HEAD CAP SCREW WITH
HOLE INTO THE TOP OF EACH BATTERY POST.
(LENGTH WILL BE ADJUSTED LATER)
3. ATTACH THE BATTERY RETAINER USING TWO
4-40 X 1/4" FLAT HEAD SCREWS.
(APPLY THREAD LOCKING COMPOUND)
4. INSERT TWO 1/8 X 1/4 BEARINGS INTO THE
BEARING BLOCK ON THE CHASSIS.
5. SLIDE THE STEERING ASSEMBLY
INTO THE BEARINGS.
6. SLIDE ONE 1/8 X 1/4 BEARING
ONTO THE TOP OF EACH
STEERING POST.
4-40 X 3/8"
FLAT HEAD SCREW
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
4-40 X 1/4"
FLAT HEAD SCREW
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
SPECIAL 4-40 SOCKET
HEAD WITH HOLE
x 2
1/8 X 1/4 BEARING
x 4
STEP 1
STEP 2
STEP 3
