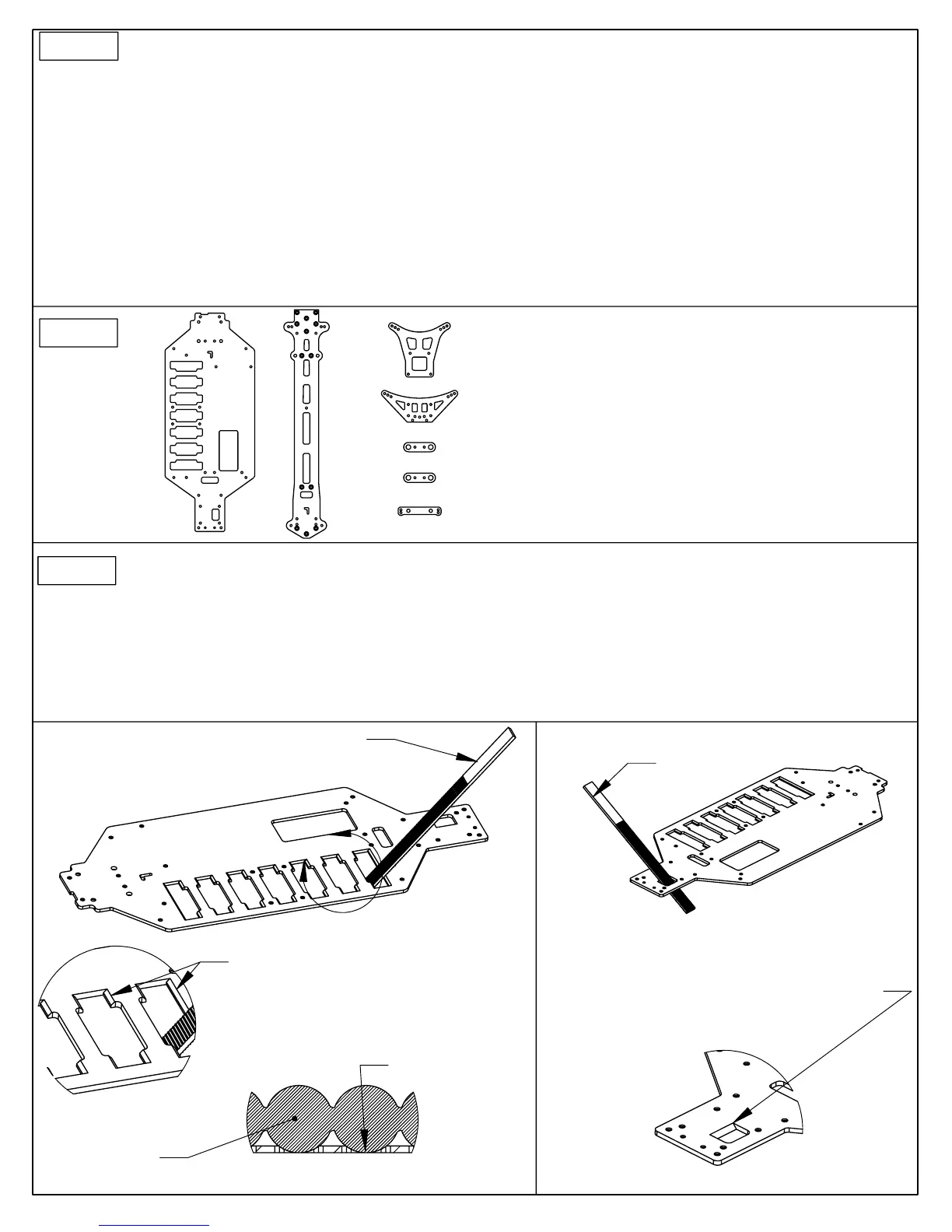

Jconcepts BJ4 - Chassis Preparation and Slot Filing; Chassis Battery Slot Preparation; Chassis Rear Transmission Slot Filing

A
2. REAR TRANSMISSION SLOT: THE PURPOSE OF THIS STEP IS TO FILE THE REAR TRANSMISSION SLOT TO
ALLOW THE REAR TRANSMISSION CASE TO SIT FLAT ON THE CHASSIS. (REFER TO PICTURES BELOW)
FILE
FILING BATTERY SLOTS:
FILE
FILING TRANSMISSION SLOT:
NOTE: THIS IS A CLEARANCE FOR THE BOTTOM OF THE REAR
TRANSMISSION CASE. A PROPERLY FILED CHASSIS WILL ALLOW
THE REAR TRANSMISSION CASE TO SIT FLAT ON THE CHASSIS.
FILE CAREFULLY! USE THE PROPER CASE TO CHECK THE FIT
WHILE REMOVING A SMALL AMOUNT OF MATERIAL AT A TIME.
TOOLS NEEDED TO BUILD THIS KIT:
1. ALLEN WRENCHES
A. .050"
B. 1/16"
C. 5/64"
D. 3/32"
E. 2.5mm
CHASSIS PREPARATION:
2. NUT DRIVERS
A. 3/16"
B. 1/4"
C. 11/32"
BAG "A" INCLUDES:
CHASSIS x 1
TOP DECK x 1
FRONT SHOCK TOWER x 1
REAR SHOCK TOWER x 1
BEARING BLOCK x 2
STEERING RACK x 1
3. MISC. TOOLS
A. NEEDLE NOSE PLIERS
B. THREAD LOCKING COMPOUND (BLUE)
C. HOBBY KNIFE (DANGER!) THIS KNIFE CUTS
PLASTIC AND FINGERS WITH EQUAL EASE.
D. PRECISION RULER
E. FLAT FILE
F. 7/16" OPEN END WRENCH
4. HELPFUL TOOLS (NOT REQUIRED)
A. VERNIER CALIPERS
B. HOBBY SCISSORS
C. 2.5mm BALL END HEX DRIVER
ITEMS NEEDED TO COMPLETE YOUR CAR:
1. R/C TWO CHANNEL SURFACE FREQUENCY RADIO SYSTEM.
2. BATTERY PACK (6 CELL)
3. BATTERY CHARGER (PEAK DETECTION CHARGER)
4. ELECTRONIC SPEED CONTROL
5. R/C ELECTRIC MOTOR
6. PINON GEAR (SIZE TO BE DETERMINED BY MOTOR CHOICE)
7. 1/10TH SCALE 4WD FRONT TIRES (BOX ART SHOWN: HOLESHOTS)
8. 1/10TH SCALE BUGGY REAR TIRES (BOX ART SHOWN: HOLESHOTS)
1. BATTERY SLOTS: THE PURPOSE OF THIS STEP IS TO FILE THE BATTERY SLOTS SO THAT WHEN THE BATTERY PACK
IS IN THE CAR, THE BOTTOM OF THE BATTERY IS ALMOST EVEN WITH THE CHASSIS. (REFER TO PICTURES BELOW)
NOTE: FILE SLOT WITH THE BOTTOM SURFACE OF THE FILE.
FILE AT THE GREATEST ANGLE POSSIBLE WITHOUT THE TOP
SURFACE OF THE FILE HITTING THE OTHER SIDE OF THE SLOT.
A PROPERLY FILED BATTERY SLOT SHOULD ALLOW THE
BATTERY TO SIT ALMOST EVEN WITH THE BOTTOM OF THE
CHASSIS. CHECK THE FIT USING A BATTERY PACK, AND
REMOVE A SMALL AMOUNT OF MATERIAL AT A TIME UNTIL
THE PROPER FIT IS ACHIEVED.
NOTE: PROPER FIT
BATTERY PACK
TOOLS
BAG A
STEP 1
