Jconcepts BJ4 - Shock Mounting

4-40 x 1/2"
SOCKET HEAD
x 2
GOLD WASHER
x2
4-40 X 3/4"
BUTTON HEAD
x 2
4-40 PLAIN NUT
x 2
SHOCK PIVOT
x 2
SHOCK NUT
x 2
A-ARM SPACER
x 2
4-40 X 1/2"
SOCKET HEAD
x 2
GOLD WASHER
x 2
4-40 X 3/4"
BUTTON HEAD
x 2
4-40 PLAIN NUT
x 2
SHOCK PIVOT
x 2
SHOCK NUT
x 2

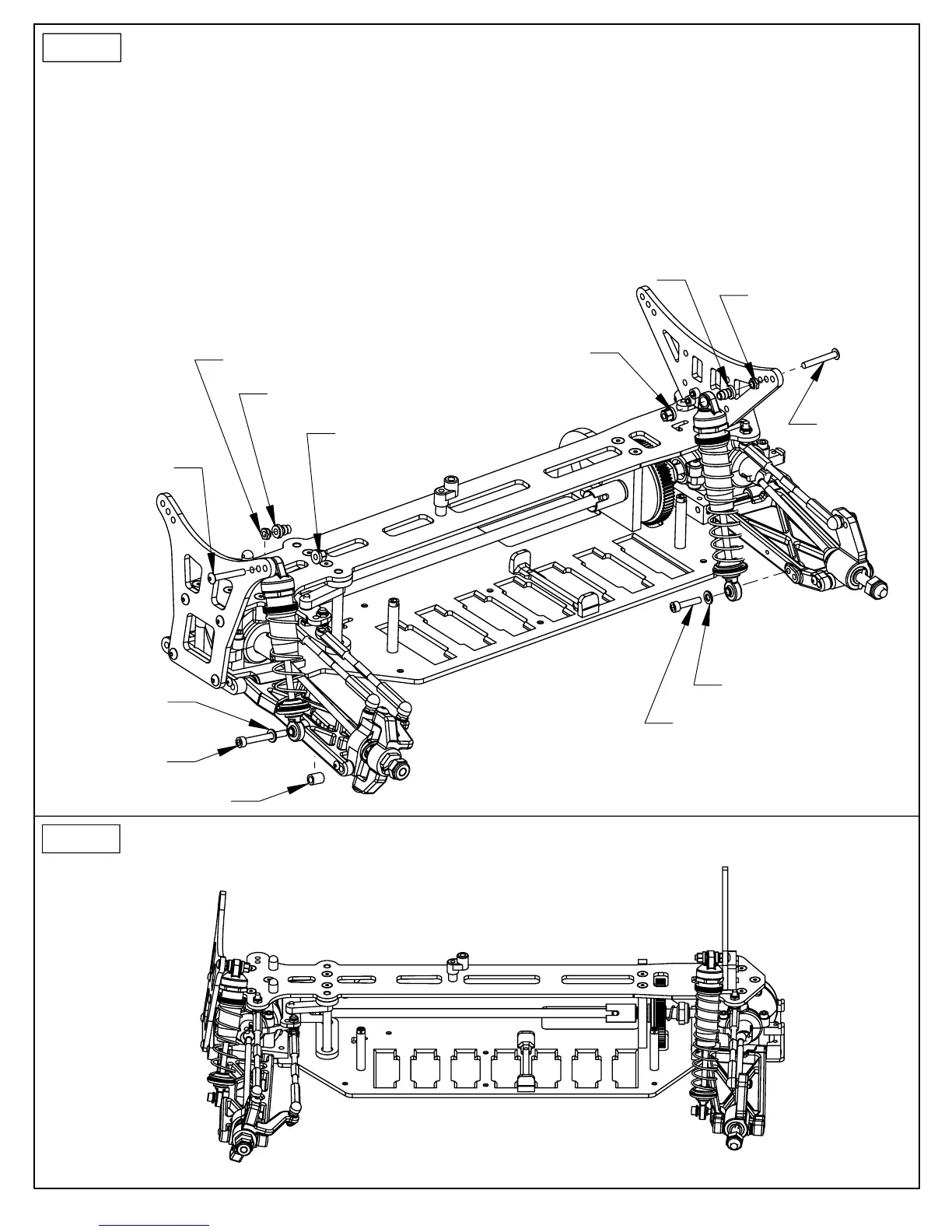

SHOCK MOUNTING:
1. MOUNT THE BOTTOM OF THE FRONT SHOCKS TO THE OUTSIDE HOLES ON THE FRONT A-ARMS USING THE
4-40 X 1" SOCKET HEAD SCREWS, WITH A GOLD WASHER ON EACH. MAKE SURE THE A-ARM SPACER IS IN
POSITION ON THE A-ARM. THE SCREW WILL SHOULD PASS THROUGH THE SPACER.
2. MOUNT THE BOTTOM OF THE REAR SHOCKS TO THE INSIDE HOLES ON THE REAR A-ARMS USING THE
4-40 X 1/2" SOCKET HEAD SCREWS, WITH A GOLD WASHER ON EACH.
3. SLIDE THE 4-40 X 3/4" BUTTON HEAD SCREWS THROUGH THE MIDDLE HOLES ON THE FRONT AND REAR
SHOCK TOWERS. SECURE THE SCREWS WITH THE 4-40 PLAIN NUTS. SLIDE THE SHOCK PIVOTS AND TOP
OF EACH SHOCK ONTO THE SCREWS. SECURE THE SHOCKS WITH THE PLASTIC SHOCK NUTS.
DO NOT OVER TIGHTEN. ALLOW THE SHOCKS TO PIVOT.
COMPLETED SUSPENSION ASSEMBLY
STEP 3
STEP 4
