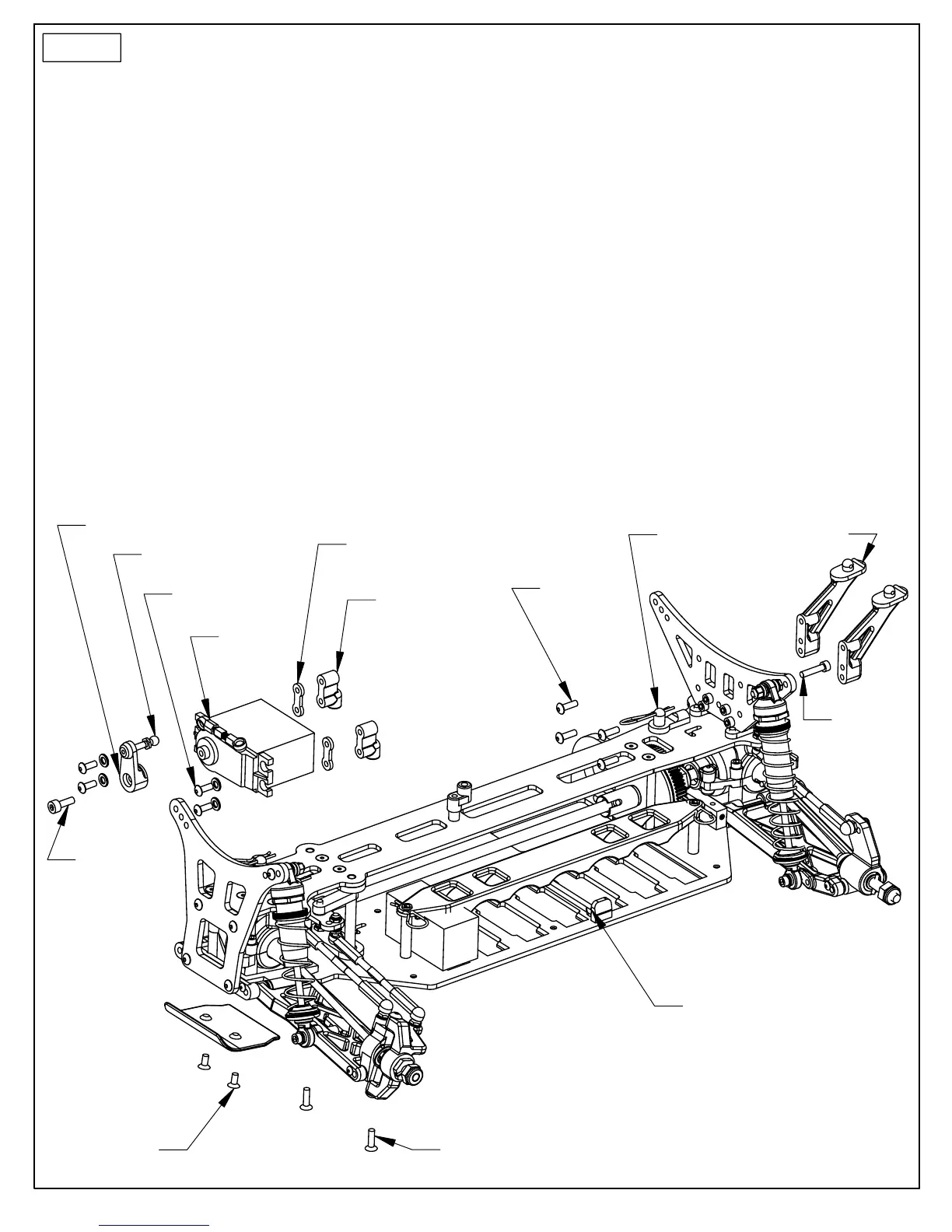

MISCELLANEOUS ASSEMBLY:
1. ATTACH THE SERVO MOUNTS TO YOUR SERVO BY USING FOUR 4-40 x 3/8" BUTTON HEAD SCREWS WITH THE GOLD WASHERS
IN PLACE. CHECK THE ALIGNMENT OF YOUR SERVO WITH THE SUPPLIED MOUNTS. TYPICALLY, AIRTRONICS, JR AND FUTABA
SERVOS WILL USE THE THIN SERVO MOUNT SPACERS IN FRONT OF THE ACTUAL SERVO MOUNTS.
2. INSTALL A SHORT BALL END INTO THE SERVO HORN THAT MATCHES THE BRAND OF YOUR SERVO. ALIGN THE SPLINES ON THE
SERVO HORN WITH YOUR SERVO AT A VERY SLIGHT ANGLE TOWARD THE CENTER OF THE CAR. PRESS THE SERVO HORN ONTO
THE SERVO. USE THE SCREW THAT WAS SUPPLIED WITH YOUR SERVO TO ATTACH THE SERVO HORN. AFTER ALL THE ELECTRONICS
ARE INSTALLED, IT MAY BE NECESSARY TO COME BACK AND ALIGN THE ACTUAL CENTER ON THE SERVO.
3. SECURE THE SERVO TO THE CHASSIS BY WITH TWO 4-40 x 3/8" FLAT HEAD SCREWS.
4. PUT THE BALL END DUST COVERS ON THE SERVO HORN AND THE STEERING BELLCRANK BALL ENDS.
5. ATTACH THE ASSEMBLED STEERING TURNBUCKLE TO THE BALL ENDS LOCATED ON THE SERVO HORN AND STEERING BELLCRANK.
6. INSTALL THE WING MOUNTS USING FOUR 4-40 x 3/8" BUTTON HEAD SCREWS.
7. INSTALL THE REAR BODY MOUNT USING ONE 4-40 x 3/8" SOCKET HEAD SCREW.
8. INSTALL THE CHASSIS TAPE ON THE BOTTOM OF THE CHASSIS. USE THE PHOTOS LOCATED AT THE END OF THE MANUAL FOR
A REFERENCE.
9. INSTALL A PIECE OF THE CHASSIS TAPE TO EACH INSIDE PORTION OF THE BATTERY RETAINER WHERE IT WOULD TOUCH THE
BATTERY PACK.
10. INSTALL THE FRONT BUMPER OVER THE CHASSIS TAPE WITH TWO 4-40 x 1/4" FLAT HEAD SCREWS.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
11. INSTALL THE BATTERY HOLD DOWN WITH THE SUPPLIED AE BODY CLIPS.
(THE BATTERY HOLD DOWN CAN ALSO BE SCREWED DOWN WITH WASHERS FOR A MORE SECURE ATTACHMENT)
THIN SPACER
x 2
SERVO HORN
4-40 x 3/8"
BUTTON HEAD
x 4
SERVO MOUNT
SCREW
SERVO MOUNTS
x 2
4-40 x 3/8"
FLAT HEAD
x 2
4-40 X 3/8"
BUTTON HEAD
x 4
REAR BODY
MOUNT
4-40 x 3/8"
SOCKET HEAD
x 1
WING MOUNT
SHORT BALL END
4-40 x 1/4"
FLAT HEAD
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
(SUPPLIED WITH
YOUR SERVO)
STEERING
TURNBUCKLE
INSTALL A PIECE OF CHASSIS
TAPE TO THE INSIDE PORTION OF
THE BATTERY RETAINER ON BOTH
SIDES.
STEP 2
