1. INSTALL YOUR MOTOR USING THE 3mm x 10mm SOCKET HEAD SCREWS WITH THE GOLD WASHERS IN PLACE. YOUR
PINON GEAR WILL BE DETERMINED BY YOUR MOTOR SELECTION. THE RECOMMENDEDPINON GEAR FOR A 10x2
MODIFIED MOTOR IS A 17 TOOTH. SET THE GEAR MESH SO THAT THE PINON GEAR AND THE SPUR GEAR ROCK BACK
AND FORTH JUST A SMALL AMOUNT.
2. ATTACH THE REST OF YOUR ELECTRICAL TO THE CHASSIS USING THE INCLUDED SPEED CONTROL AND RECEIVER TAPE.
KEEP IN MIND THAT THE GRAPHITE CHASSIS AND TOP DECK ARE VERY CONDUCTIVE. IT IS RECOMMENED THAT YOU
PUT 2 LAYERS OF SPEED CONTROL AND RECEIVER TAPE UNDER YOUR ELECTRONICS. IT IS ALSO RECOMMENED THAT
A SMALL AMOUNT OF ELECTRICAL TAPE BE PUT BETWEEN THE BATTERY PACK AND THE EXPOSED EDGES OF CHASSIS SLOTS.
ALSO PUT A PIECE OF ELECTRICAL TAPE BETWEEN THE TOP DECK AND THE RECEIVER ANTENNA WIRE. RUN YOUR RECEIVER
ANTENNA WIRE UP THROUGH THE ANTENNA MOUNT AND ANTENNA TUBE. PRESS THE ANTENNA TUBE DOWN INTO THE
MOUNT. INSTALL THE ANTENNA CAP TO HOLD THE ANTENNA WIRE IN PLACE. USE THE PHOTOS LOCATED AT THE END OF
THE MANUAL FOR A REFERENCE.
3. CUT OUT THE ILLUZION WING ALONG THE CUT LINES USING LEXAN SCISSORS. MOUNT THE WING TO THE MOUNTS USING
THE WING MOUNT SPACERS FIRST, THEN THE INCLUDED LARGER STYLE BODY CLIPS (LOSI).
4. MOUNT YOUR 4WD FRONT TIRES OF CHOICE ON THE FRONT WHEELS AND INSTALL THE TIRES AND WHEELS TO THE FRONT
AXLES USING THE THIN 8-32 LOCKNUTS.
5. MOUNT YOUR BUGGY REAR TIRES OF CHOICE ON THE REAR WHEELS AND INSTALL THE TIRES AND WHEELS TO THE REAR
AXLES USING THE STANDARD 8-32 LOCKNUTS.
MISCELLANEOUS ASSEMBLY:
WING MOUNT
SPACERS
x 2
LARGE STYLE
BODY CLIPS
(LOSI)
3mm x 10mm
SOCKET HEAD SCREWS
WITH GOLD WASHERS
x 2 EA

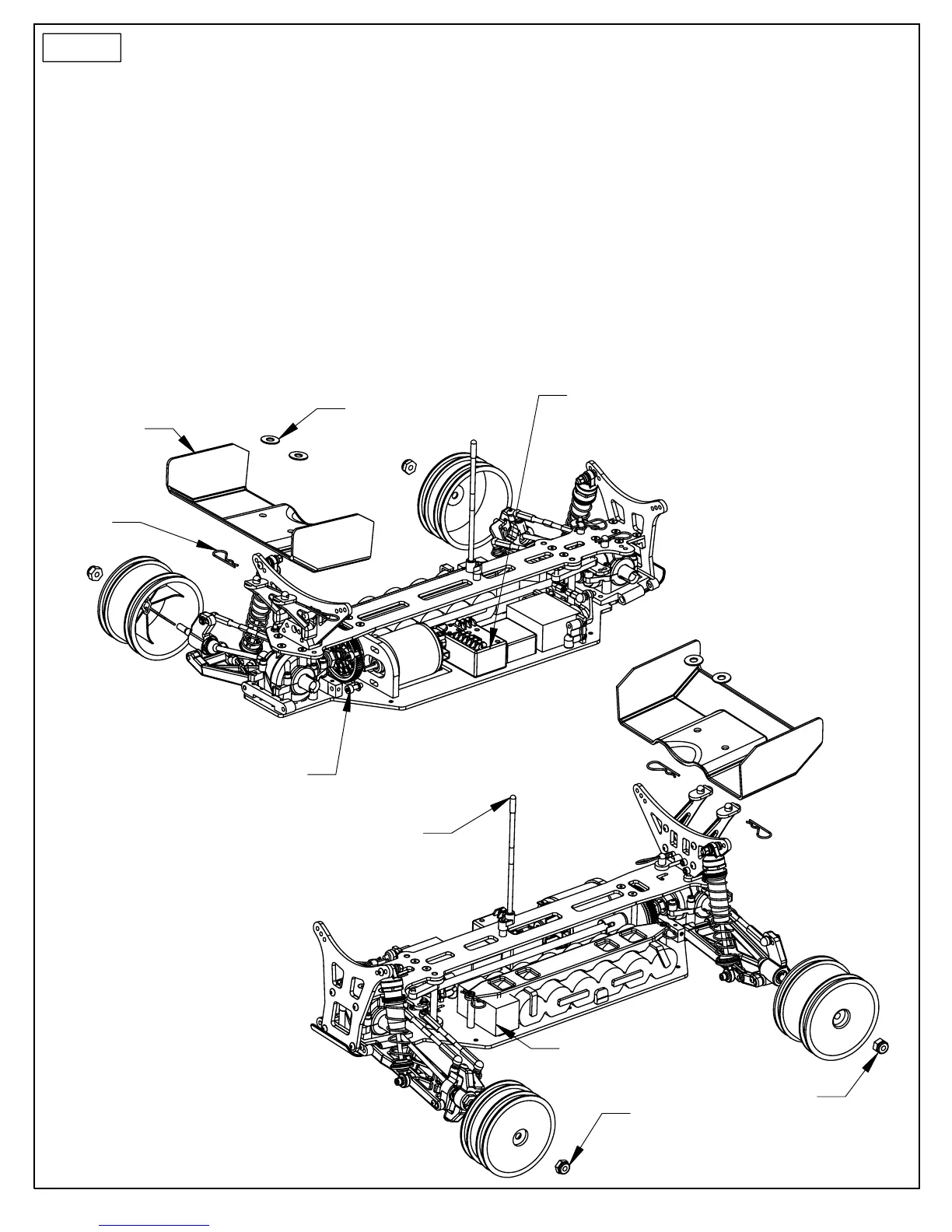

BJ4 ILLUZION WING
SPEED CONTROL AND
RECEIVER CAN BE MOUNTED
THE WAY SHOWN, OR FLIPPED
AROUND WITH THE SPEED CONTROL
NEXT TO THE SERVO.
ANTENNA TUBE
WITH CAP
8-32 LOCKNUT
8-32 THIN
LOCKNUT
FOAM BATTERY SPACER
STEP 3
