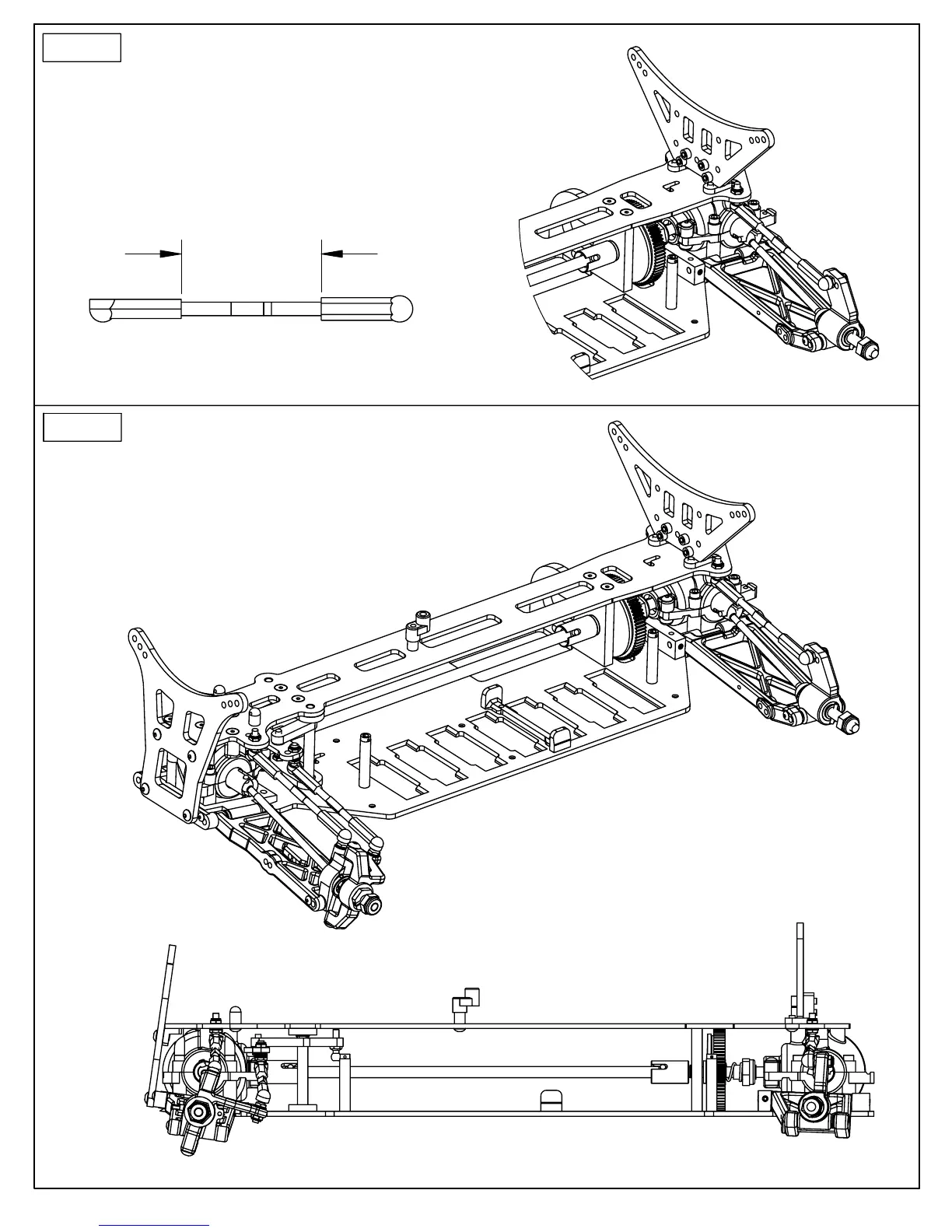

REAR TURNBUCKLE ASSEMBLY:
COMPARE SUSPENSION ASSEMBLY
1.25
REAR CAMBER TURNBUCKLE 2.00": x 2
SCALE 1:1
1. TWIST THE BALL CUPS ONTO EACH BLUE TITANIUM TURNBUCKLE
UNTIL YOU GET THE DIMENSION SHOWN FOR EACH EACH PART.
2. LOCATE THE NOTCH ON EACH TURNBUCKLE AND ROTATE THEM
SO THAT IT IS LOCATED ON THE OUTSIDE OF THE CAR ON THE
LEFT AND THE INSIDE ON THE RIGHT. SNAP ALL THE REAR
TURNBUCKLES INTO PLACE WHERE SHOWN. MAKE SURE
THAT ALL THE CVD BONES ARE IN THE SLOTS OF THE
OUTDRIVE HUBS.
STEP 3
STEP 4
