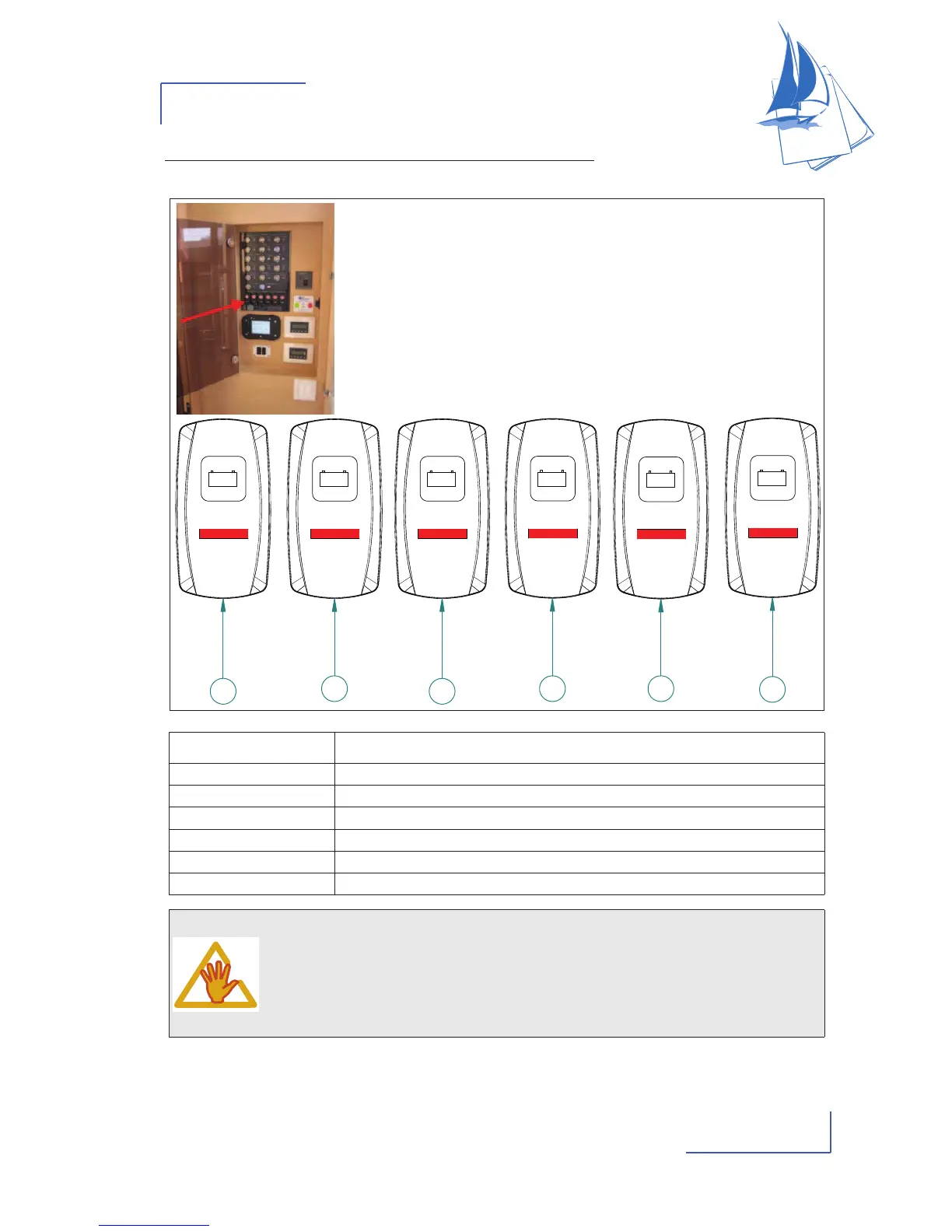

Control panel for electrically controlled battery breakers
Location: Companionway - Starboard
Reference Designation
1 Negative ancillaries
2 Service positive
3 Engine negative
4 Positive engine
5 Generator positive
6 Generator negative
- Turn off all battery breakers before leaving the vessel: risk of complete
discharging of whole battery bank.
- Avoid touching the battery breakers when they are live.
- Never switch off the battery breakers when the boat's engine is running (risk
of serious damage to the charging circuit).
8
+
-
+
-
+
-
+
-
+
-
+
-
1
2
3
4 5
6
DC INSTALLATION
