Jeanneau 64 - Page 70

- 70 -

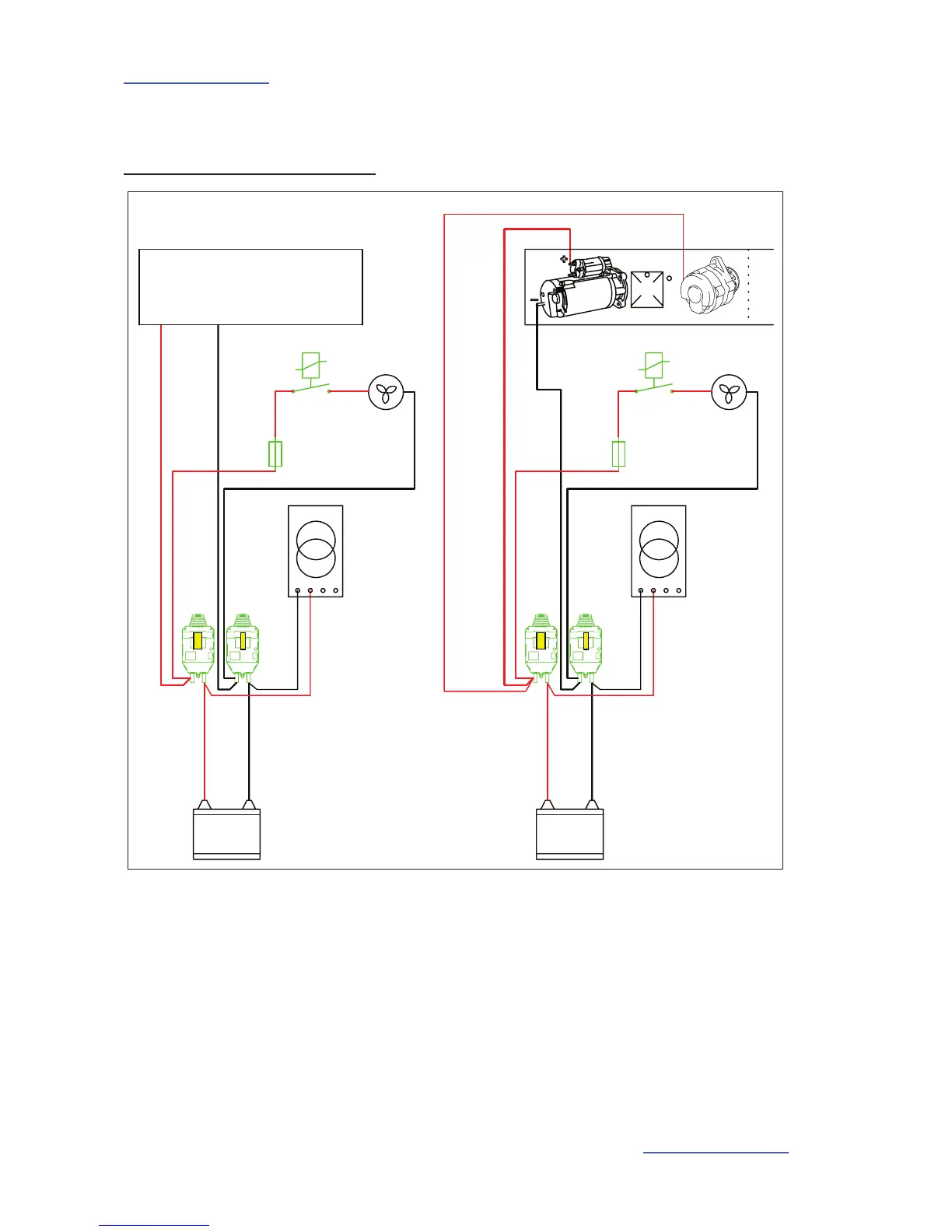

Layout diagram - Battery cables
12
V circuit (Generator & Engine)
-
+
xxA
1DM -95mm²
1DM -95mm²
VM22
1VM1
1VM100
1DM
1AT -35mm²
1BA -95mm²
1BA -95mm²
1CB -10mm²
1CB1 -10mm²
12v 115A
1CB2 -10mm²
+
-
-
+
GE2 -70mm²
GE1 -70mm²
GE1 -70mm²
CB30 -10mm²
CB30 -10mm²
+
-
GE2 -70mm²
GENERATOR
xxA
GE13
GE12
GE13
2
1
+
-
230V/12V 25A
2
1
+
-
230V/12V 25A
