2. SIGNAL INPUT
퓨즈를󰼿교체할󰼿경우에는󰼿지정된󰼿부품을󰼿사용하여야󰼿하며,
파워PCB상의󰼿FU1자리에󰼿꽂아󰼿주십시오.

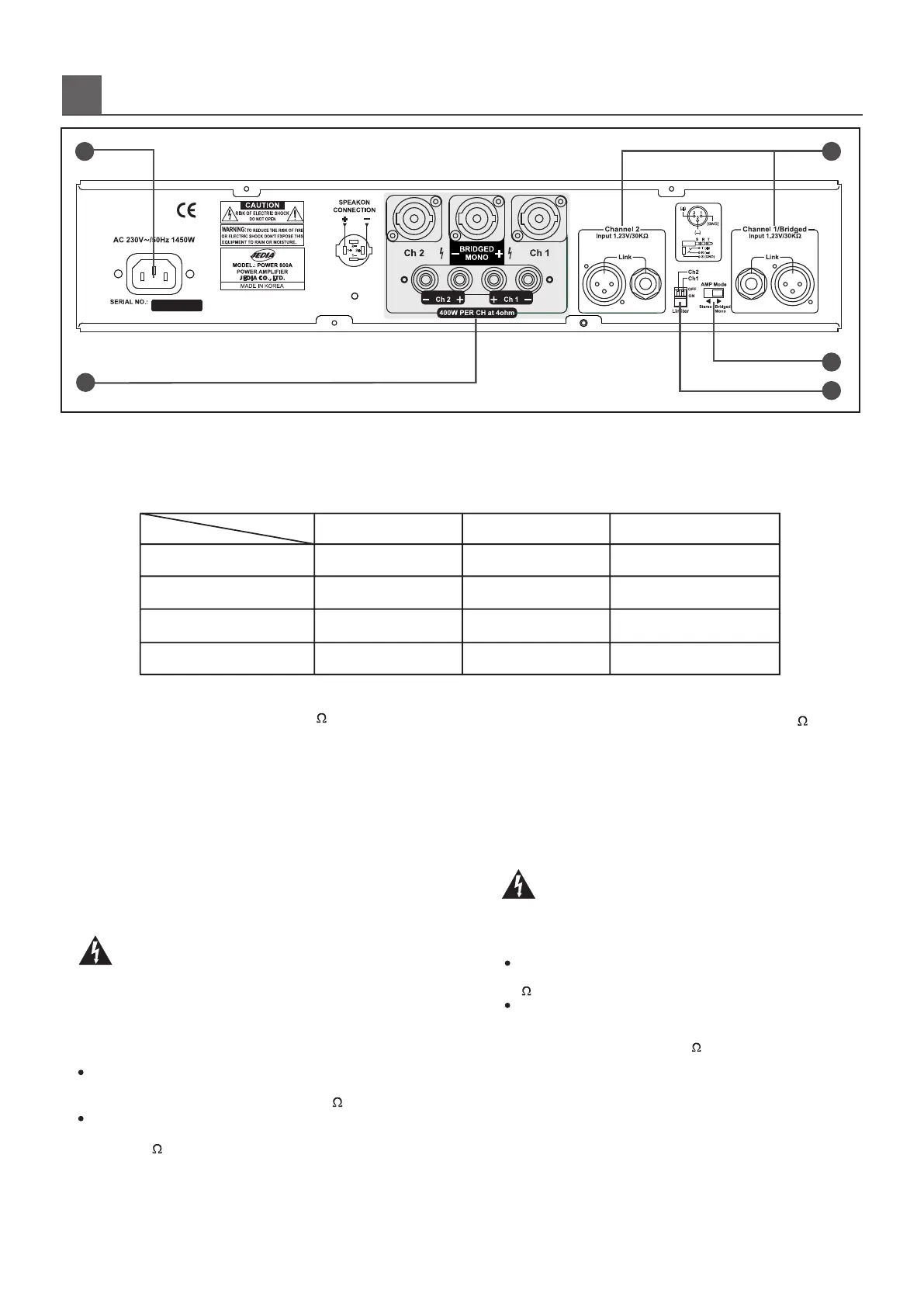

R
EAR PANEL CONTROLS
(후면기능)
1. AC POWER
전원󰼿코드를󰼿꽂기󰼿전에󰼿전원󰼿스위치를󰼿꺼주시기󰼿바랍니다.
1.󰼿교류󰼿전원󰼿공급
2.󰼿입력단자
감전의󰼿위험이󰼿있으니󰼿스피커󰼿결선󰼿작업을󰼿하기전에󰼿반드시󰼿
기기의󰼿전원을󰼿꺼주시기󰼿바랍니다.
스피커󰼿결선시에는󰼿극성에󰼿주의󰼿하십시오.
스피커󰼿결선시에는󰼿전력󰼿손실과󰼿댐핑팩터의󰼿감소를󰼿최소화󰼿
하기󰼿위하여󰼿충분히󰼿굵은󰼿선을󰼿최단거리로󰼿결선󰼿하십시오.
3.󰼿LIMITER󰼿SWITCHES
4.󰼿OUTPUT󰼿TERMINALS
3
Normal input level is 1.23V (+4dBm) 30K balanced with
channel 1,2 XLR and 1/4" phone jack input terminal, for
the extension to another amplifier, connect link jack to another
amplifier input jack.
5. AMP MODE
바란스형󰼿입력잭으로서󰼿입력󰼿감도는󰼿+4dBm(1.23V)󰼿30K󰼿󰼿󰼿󰼿입니다.
5.󰼿운용모드
스테레오
각󰼿채널이󰼿분리되어󰼿운용할󰼿경우에󰼿사용되며󰼿스피커󰼿최소󰼿부하는󰼿
4󰼿󰼿󰼿󰼿입니다.
3. LIMITER SWITCHES
4. OUTPUT TERMINALS
WARNING : To prevent electric shock do not operate
the amplifier with any of the conductor portion of the
speaker wire exposed.
SPEAKER CABLING : Larger wire sizes and shorter
lengths minimize both loss of power and degradation
of damping factor.
Do not place speaker cables next to input wirring.
Please connect power plug after main power switch "off",
when fuse is blown-up please replace it, after disconnect
power cord. Fuse located in FU1 on power PCB.
When the audio signal drives the amp's output circuit beyond
it's power capability, it clips, flattening the peaks of the
waveform. The clip limiter detects this and quickly reduces the
gain to minimize the amount of overdrive. Limiting occurs only
during actual clipping. Each channel has its own clip limiter and
you can switch it on or off independently.
Turn the amplifier off befor touching the output connections.
출력󰼿신호가󰼿정격을󰼿초과하게󰼿되면󰼿일그러짐이󰼿발생하게󰼿됩니다.󰼿
이때󰼿리미터󰼿스위치는󰼿일그러짐이󰼿발생하지󰼿않는󰼿레벨로󰼿신호를
신속히󰼿줄여주게󰼿됩니다.󰼿󰼿
채널󰼿1,2는󰼿각각󰼿독립적으로󰼿동작하게󰼿되며,󰼿실제로󰼿일그러짐이
발생했을때󰼿CLIP/LIM󰼿LED가󰼿켜지게󰼿됩니다.
다이나믹󰼿레인지는󰼿+20dB󰼿입니다.
MODEL
VOLTAGE
220~240VAC (FU1)
T2AH 250V(55T)
T4AH 250V(55T)
T6.3AH 250V(55T)
T8AL 250V(S51)
120VAC (FU1)
T4AH 250V(55T)
T8AL 250V(S51)
T12AL 250V(65TL)
T15AL 250V(65TL)
DC FUSE (FU101,F2U01)
T4AH 250V(55F)
T5AH 250V(55F)
T6.3AH 250V(55F)
T8AL 250V(N51)
POWER 200A
POWER 300A
POWER 600A
POWER 800A
2
3
5
1
4
STEREO
Both channels operate separately : for stereo or 2-channel operation,
speaker impedance for each channel at least 4 .
브릿지󰼿모노
채널1+󰼿콘넥터를󰼿스피커+단자,󰼿채널2+콘넥터를󰼿스피커-단자와󰼿
연결하여󰼿출력을󰼿증강하기위한󰼿방식으로󰼿신호󰼿입력을󰼿채널1에만
공급합니다.󰼿스피커󰼿최소󰼿부하는󰼿8󰼿󰼿󰼿입니다.
BRIDGE MONO
Both channels are connected as a bridge : for a speaker impedance
of at least 8 .
