시스템연결그림은일반적인설치방법으로다음사항을주의하십시오.
1.스피커라인연결시앰프의전원스위치를꺼주십시오.
2.스피커결선은결선도를참고하여주십시오.
3.앰프는2개의모드(스테레오,브릿지모노)로전환시킬수있으며,
4.잘못된결선은스피커에치명적인손상을초래합니다.
앰프가동작중일때는전환하지마십시오.
스테레오방식
결선하십시오.
모드스위치를스테레오쪽으로전환하고스피커극성에주의하여
Wiring the following instructions describe the most common
ways to install your amplifier into a sound system.
1. First, turn off power switch befor connection.
2. Refer to wirning diagram for speaker connection.
(stereo, bridge-mono)
3. L series amplifier maybe operated in one of two modes
4. JEDIA assumes no liability for damaged loads resulting from
careless amplifier use or deliberate over powering.

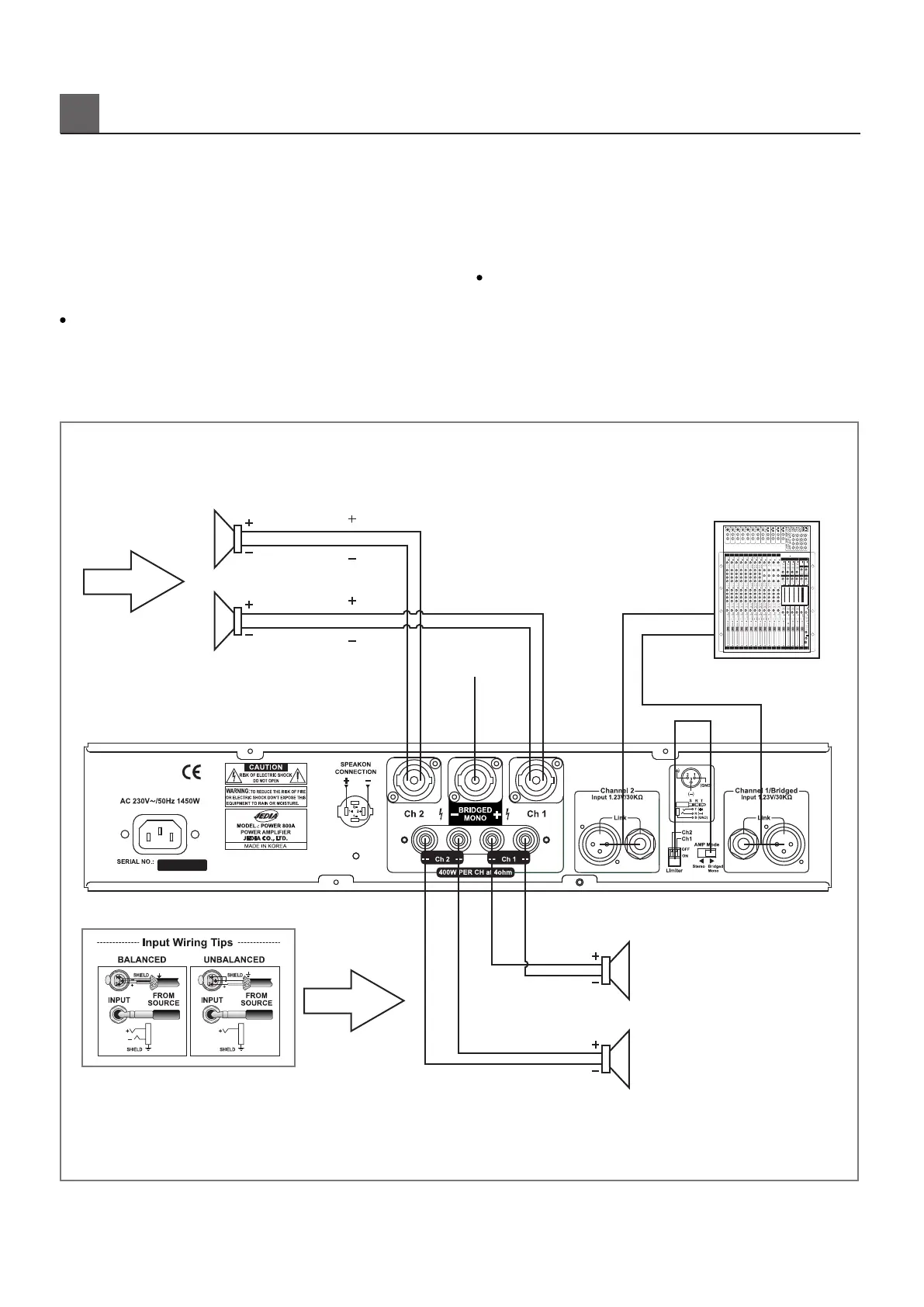

How to connect stereo(2-CHANNEL) MODE
connect the output wiring as shown.
To put the amplifier into stereo mode, first turn the amplifier off,
then slide the stereo-mono switch toward the left, and properly
C
ONNECTIONS
5
PIN1
PIN1
PIN1
PIN1
CH-1
CH-2
METHOD 1
CH-1
CH-2
CH-1
CH-2
METHOD 2
NO USE
TRIPAC series or
STAGE PRO MIXER
PROFESSIONAL AUDIO MIXER 8.4.4.2
TRIPAC
To Next Page
