Jedmed Ergo-Flex - DEVICE OPERATION - Leak Testing (continued); Leak Test Procedure Steps

15
Ergo-Flex
Operating / Service Manual
DEVICE OPERATION - Leak Testing (continued)

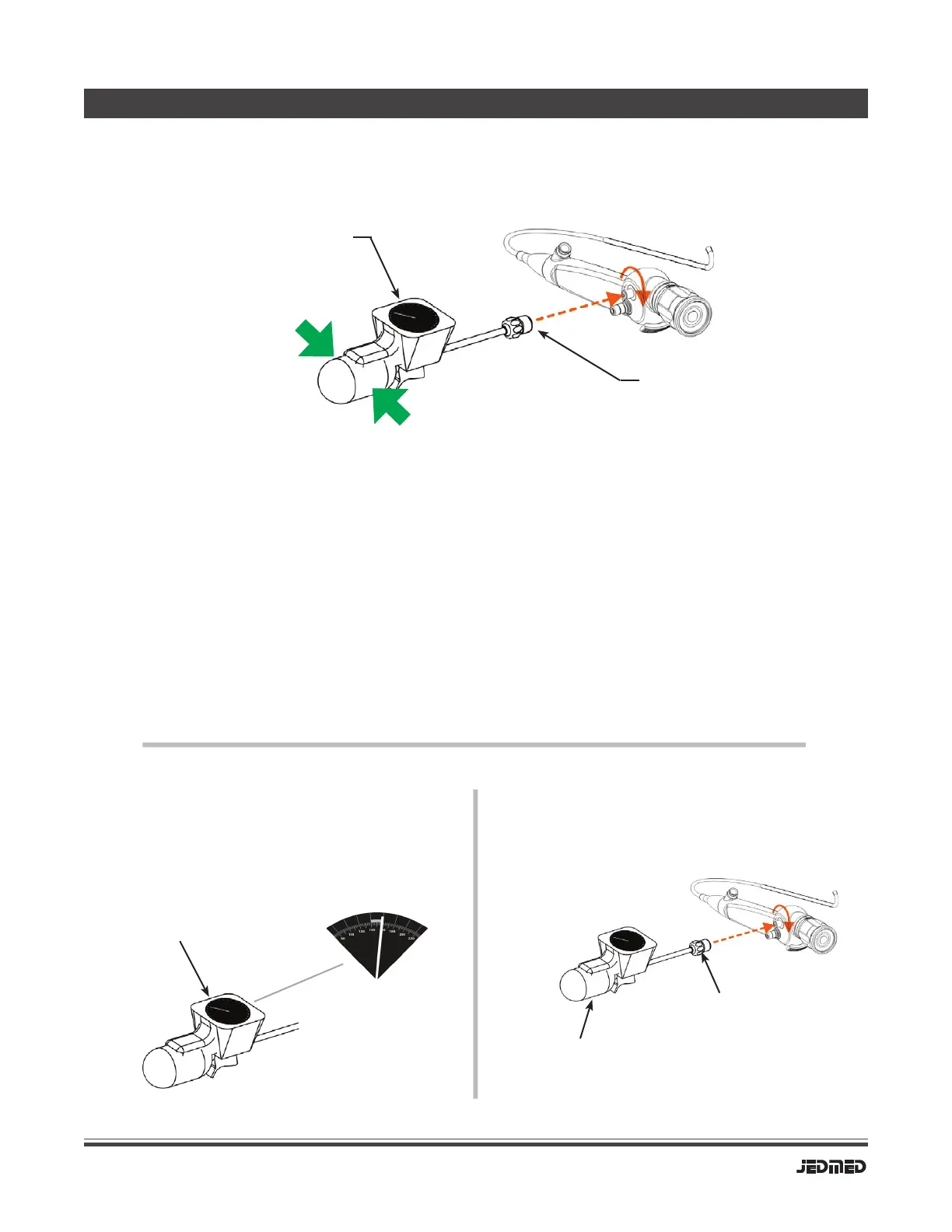

1. Connect leak tester connection to scope (align pin to notch, push inward rmly, gently turn 1/8 turn
clockwise). This creates an air-tight connection.
2. Squeeze hand bulb slowly until pressure on gauge reads 160 mmHg. Do not over-inate.
Note: Angulation section of insertion tube (rubber sleeve) normally bulges slightly
while inated.
3. Observe gauge. If pressure reading drops more than 10 mmHg within 1 minute, DO NOT USE;
scope must be returned to JEDMED for service (see page 25).
If pressure remains constant after 1 minute, instrument passes leak test.
Connection MUST be dry
before connecting!
160 mmHg
(do not exceed!)
Pump to inate
If pressure drops more than 10
mmHg within 1 minute, scope fails!
(DO NOT USE - contact JEDMED)
1) Connect Tester to Scope
2) Observe Pressure After 1 Minute
3) Disconnect Tester
1. Push lever to
release pressure
2. Turn 1/4 turn counter-clockwise
and withdraw.
Procedure
