DEVICE OPERATION - Connections
Basic Connections

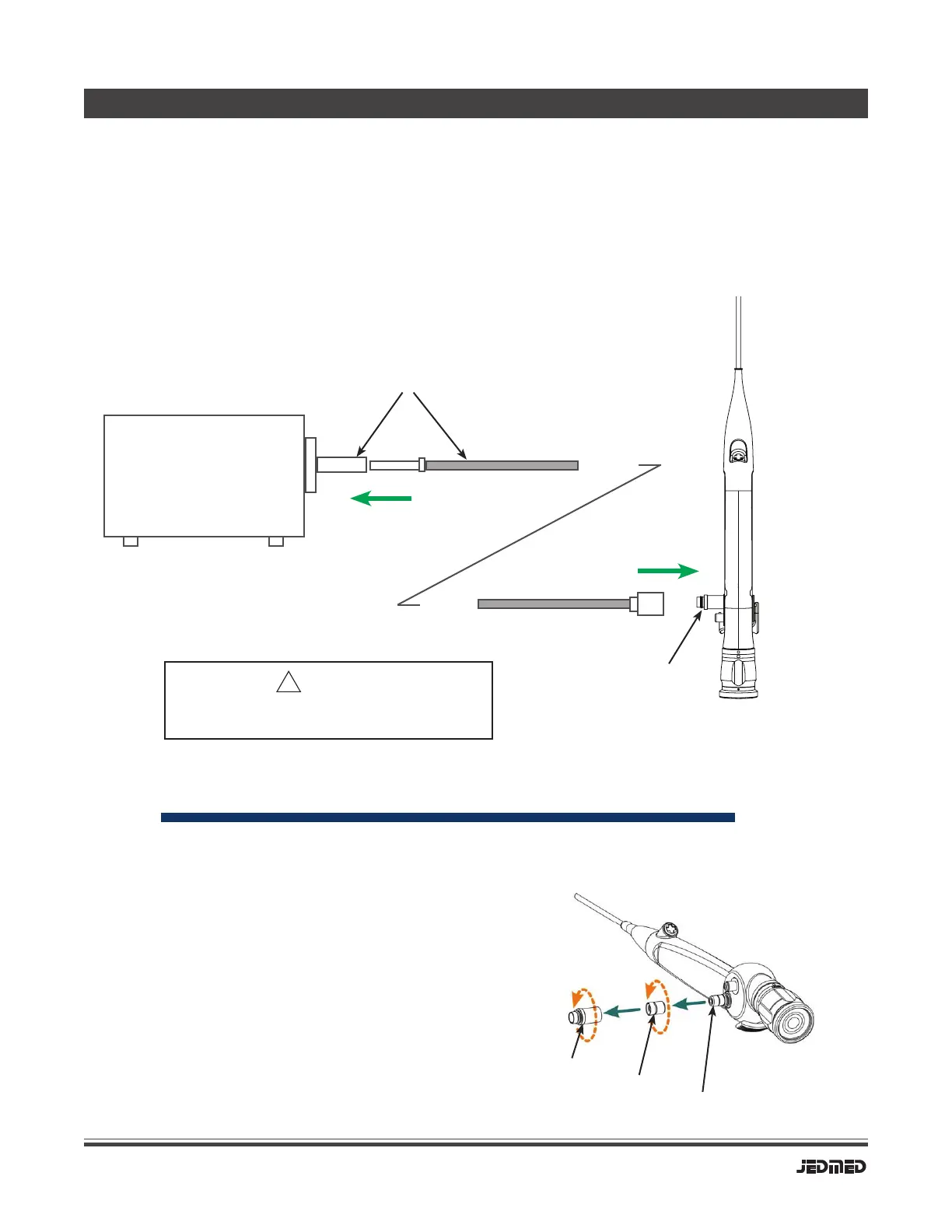

1. Connect suitable beroptic cable to Ergo-Flex.
Scope will accept Karl Storz, Wolf or ACMI (see bottom of page)
2. Connect other end on beroptic cable to suitable
beroptic light source.
Use only medical-grade beroptic light sources and
light cables to assure patient safety. See page 10-11.
Warning
!
Karl Storz adaptor (removable)
Wolf adaptor (removable)
ACMI port (xed)
1.
2.
3.
Light Port Adaptors
Fiberoptic Light
Source
(medical grade)
. . .
. . .
Type BF, medical-grade
Electrically isolated from patient
beroptic cable
Simply screw adaptors on
or off by hand.
Fiberoptic Connection
1
2
3
