FUSES
General Information
WARNING!
•
When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating
as the original fuse. Never replace a fuse with
another fuse of higher amp rating. The use of a
fuse with a rating other than indicated may result
in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.
Never replace a blown fuse with metal wires or any
other material. Failure to use proper fuses may
result in serious personal injury, fire and/or prop-
erty damage.
•
Before replacing a fuse, make sure that the igni-
tion is off and that all the other services are
switched off and/or disengaged.
•
If the replaced fuse blows again, contact an autho-
rized dealer.
•
If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering sys-
tem blows, contact an authorized dealer.
The fuses protect electrical systems against excessive
electrical current.
When a device does not work, you must check the fuse
element inside the blade fuse for a break/melt.
Also, please be aware that when using power outlets for
an extended period of time with the engine off, it may
result in vehicle battery discharge.
Power Distribution Center (PDC)
The Power Distribution Center is located in the engine
compartment near the battery. This center contains
cartridge fuses, mini fuses, and relays. The PDC top
cover is labeled with each serviceable fuse/relay loca-
tion, function, and size.
CAUTION!
When installing the power distribution center cover, it
is important to ensure the cover is properly posi-
tioned and fully latched. Failure to do so may allow
water to get into the power distribution center and
possibly result in an electrical system failure.

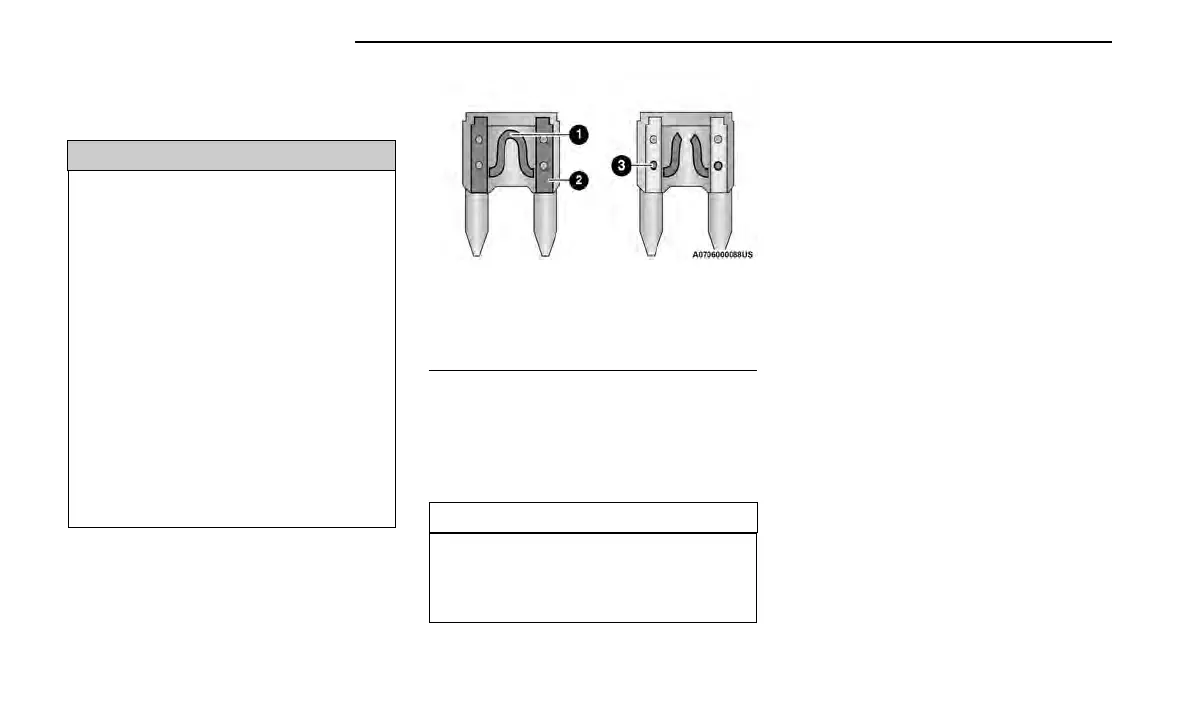

Blade Fuses
1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element
3 — Blade Fuse with a bad/not functional fuse element
(blown fuse)
324 SERVICING AND MAINTENANCE
