Jeep GLADIATOR 2022 - Power Windows - if Equipped

Wire Color Chart
Circuit Function Fuse Wire Color Locations
Aux Switch 1 F93 – 40 Amp Beige/Pink
Interior (passenger side under instrument panel) & Underhood (right side
near battery)
Aux Switch 2 F92 – 40 Amp Green/Pink
Interior (passenger side under instrument panel) & Underhood (right side
near battery)
Aux Switch 3 F103 – 15 Amp Orange/Pink
Interior (passenger side under instrument panel) & Underhood (right side
near battery)
Aux Switch 4 F108 – 15 Amp Dark Blue/Pink
Interior (passenger side under instrument panel) & Underhood (right side
near battery)
Battery F72 – 10 Amp Red/White Interior (passenger side under instrument panel)
Ignition F50 – 10 Amp Pink/Orange Interior (passenger side under instrument panel)
POWER WINDOWS — IF EQUIPPED
The power windows feature allows for movement of the
windows with the push of a button. The power window
switches are located on the instrument panel below the
climate controls. Push the switch downward to open the
window and pull upward to close the window.
The top left switch controls the left front window and
the top right switch controls the right front window. The
bottom left switch controls the left rear window and the
bottom right switch controls the right rear window.
WARNING!
Never leave children unattended in a vehicle, and do
not let children play with power windows. Do not leave
the key fob in or near the vehicle, or in a location
accessible to children. Occupants, particularly unat-
tended children, can become entrapped by the win-
dows while operating the power window switches.
Such entrapment may result in serious injury or
death.

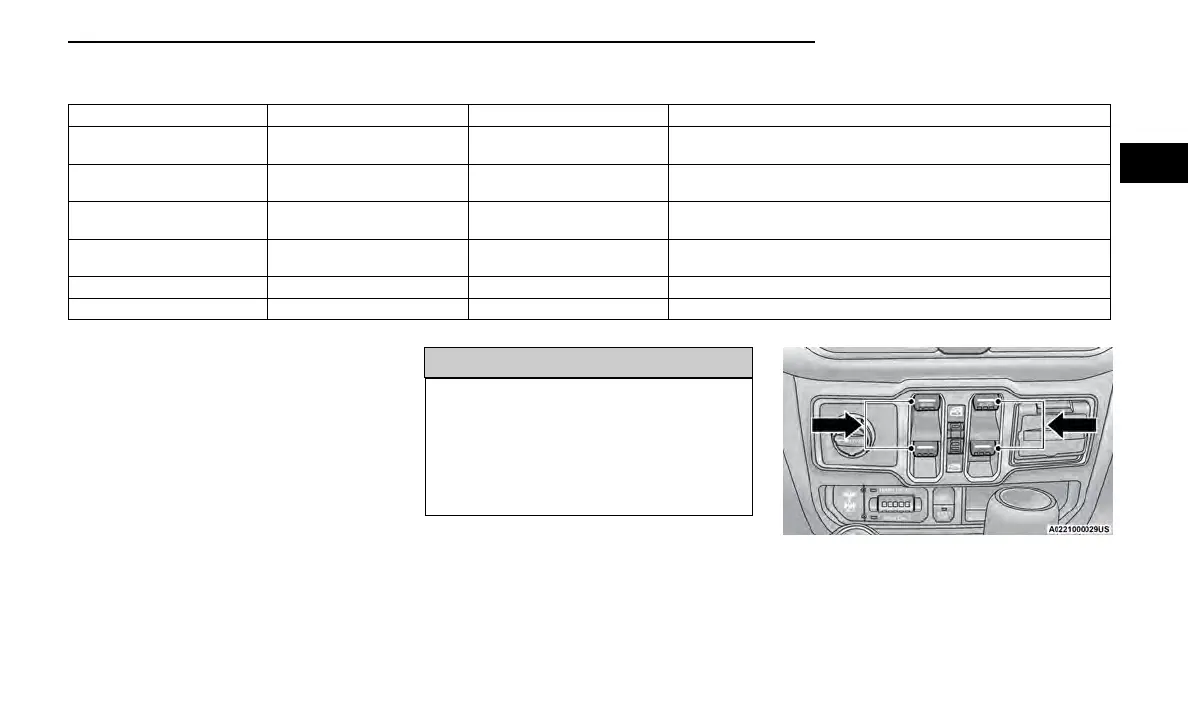

Power Window Switches
GETTING TO KNOW YOUR VEHICLE 69
2
