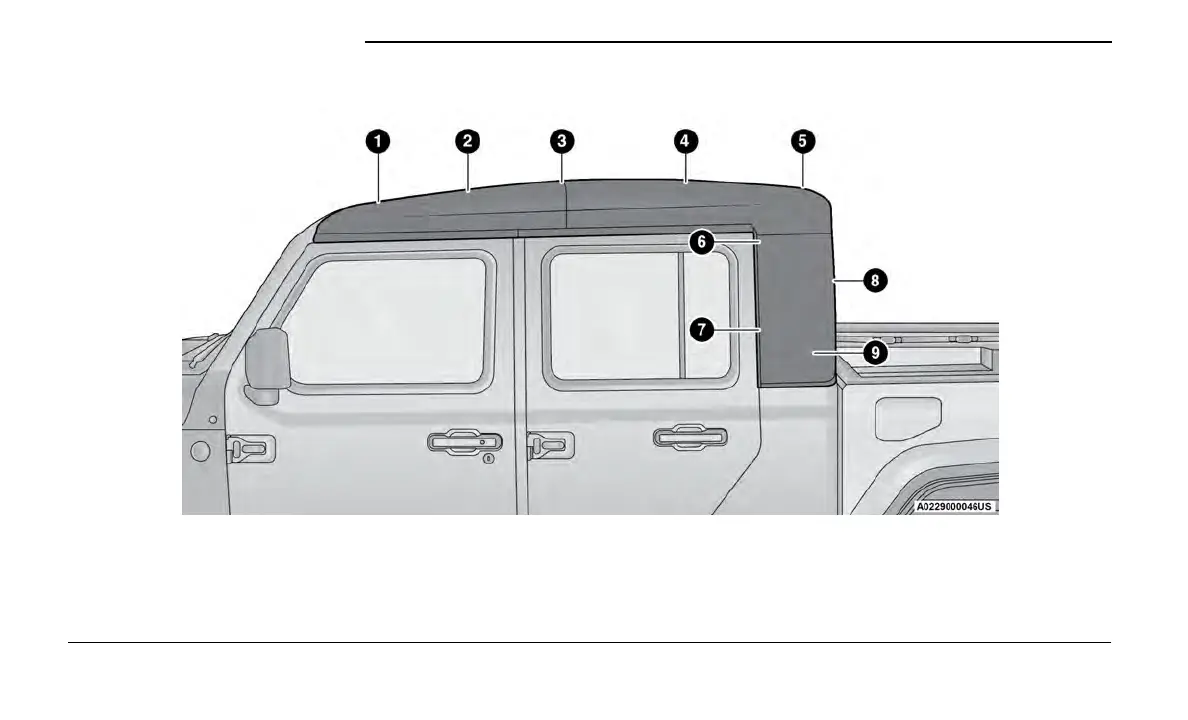

Side View Top And Components

1—#1Bow 6 — Quarter Panel Upper Hook And Loop

2—#2Bow 7 — Quarter Panel Vertical Retainer

3—#3Bow 8 — Rear Window Vertical Retainer

4—#4Bow 9 — Quarter Panel Cover Assembly

5—#5Bow

72 GETTING TO KNOW YOUR VEHICLE
