OFF-ROAD DRIVING TIPS
Side Step Removal — If Equipped
NOTE:
Prior to off-road usage, the side steps should be
removed to prevent damage.

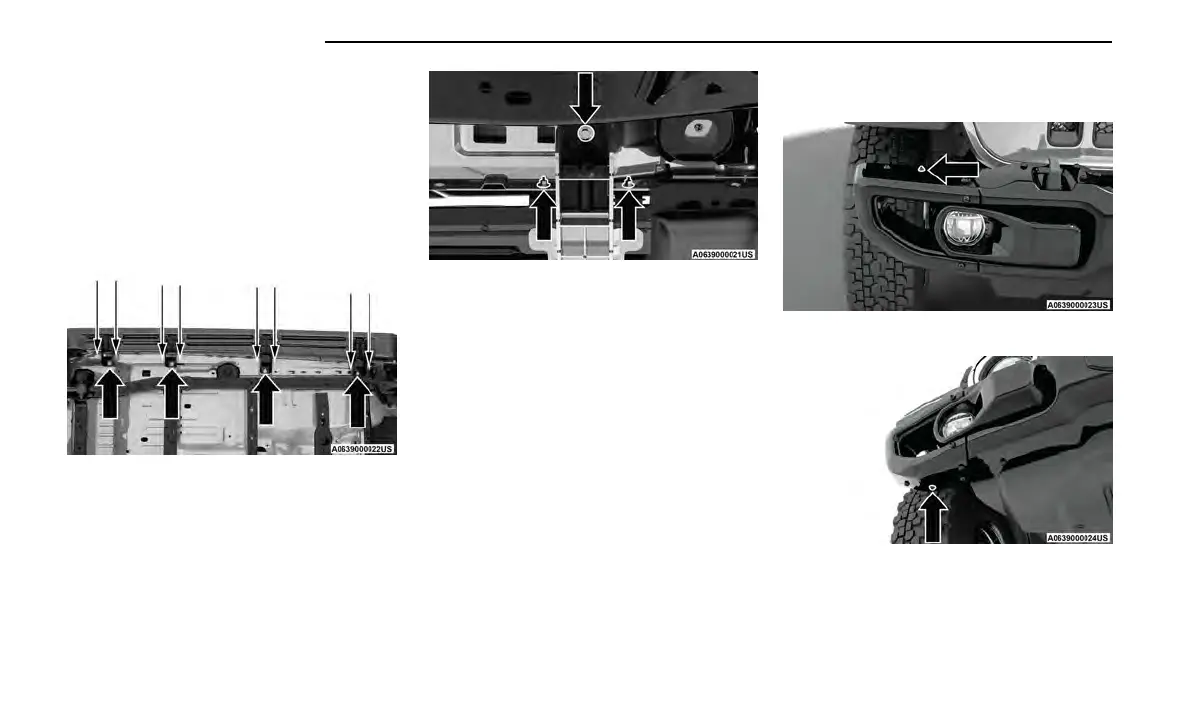

1. There are two nuts connecting to the body side and
one bolt connecting to the underbody on each
attachment bracket. There are four attachment
brackets on each side step.
2. Remove two nuts and one bolt from the underside
of the vehicle for each of the four brackets. Repeat
for other side of vehicle.
3. After all bolts and nuts have been removed, pull the
side step assembly off of the vehicle.
4. To reinstall the side steps align the studs to the
body side holes and fasten all nuts on all four brack-
ets. Then secure all four bolts to the underbody.
Repeat the reassembly procedure for the other side.
Bumper End Cap Removal — If Equipped
The end caps on your vehicle’s front bumper can be
removed by the following steps:
NOTE:
Bumper end caps are removable on steel bumpers only.
1. Loosen the two bolts that retain the GAWR bracket
(Bolts #1 and #2) to the end cap using a T45 Torx
bit screwdriver. Do not remove the bolts.
2. Remove the remaining eight bolts.
3. Gently remove the end cap from the vehicle and
store it where it will not get damaged.
4. Repeat this procedure on the other side.
Fastener Locations (One Side)
Underside Nuts
Bolt #1
Bolt #2
160 STARTING AND OPERATING
