'Jeep' UNIVERSAL and 'Jeep' DISPATCHER

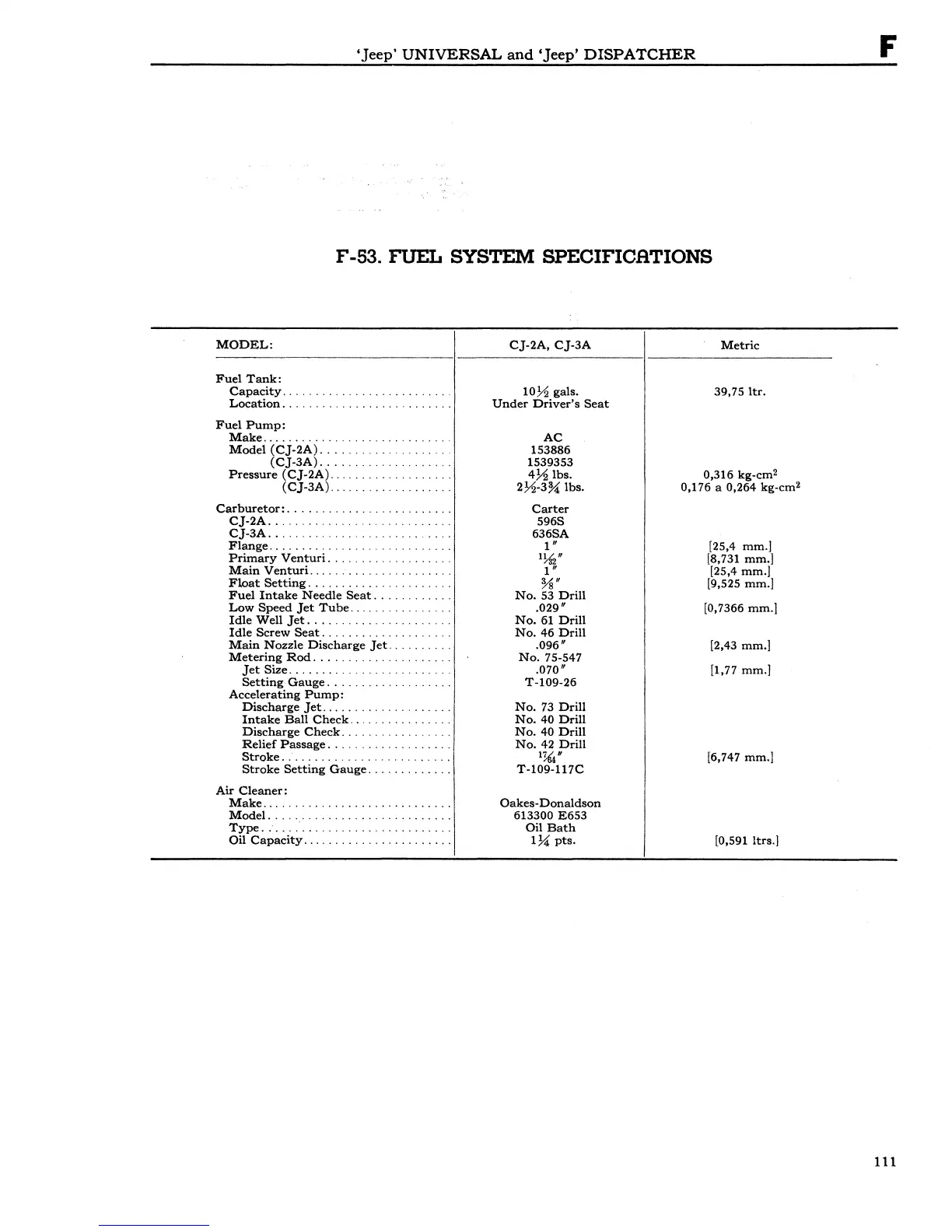

F -53. FUEL SYSTEM SPECIFIC.A.TIONS
MODEL:
Fuel Tank:
Capacity ......................... .
Location .................. .
Fuel Pump:
Make ............................ .
Model (CJ-2A) ........... .
(CJ-3A) ................... .
Pressure (CJ-2A) .................. .
(CJ-3A) .................. .
Carburetor: ........................ .
CJ-2A ........................... .
CJ-3A ........................... .
Flange ........................... .
Primary Venturi. ................. .
Main Venturi. .................... .
Float Setting ..................... .
Fuel Intake Needle Seat ........... .
Low Speed Jet Tube ............... .
Idle Well Jet ..................... .
Idle Screw Seat ................... .
Main Nozzle Discharge Jet ......... .
Metering Rod .................... .
Jet Size ........................ .
Setting· Gauge .................. .
Accelerating Pump:
Discharge Jet ................... .
Intake Ball Check ............... .
Discharge Check ................ .
Relief Passage .................. .
Stroke ......................... .
Stroke Setting Gauge ............ .
Air
Cleaner:
Make ............................ .
Model. .......................... .
Type . ." ... : ...................... .
Oil Capacity ...................... .
CJ-2A, CJ-3A
10}'2 gals.
Under Driver's Seat
AC
153886
1539353
4}'2lbs.
2}'2-3~ lbs.
Carter
596S
636SA
1"
~~·
1"
Vs"
No. 53 Drill
.029"
No. 61 Drill
No. 46 Drill
.096"
No. 75-547
.070"
T-109-26
No. 73 Drill
No. 40 Drill
No. 40 Drill
No. 42 Drill
lJt..
T-109-117C
Oakes-Donaldson
613300 E653
Oil Bath
04 pts.
Metric
39,75 ltr.
0,316 kg-cm2
0,176 a 0,264 kg-cm2
[25,4 mm.)
[8,731 mm.]
[25,4 mm.)
[9,525 mm.)
[0,7366 mm.]
[2,43 mm.]
[1,77 mm.]
[6,747 mm.]
[0,591 ltrs.]
F
