BRAKES

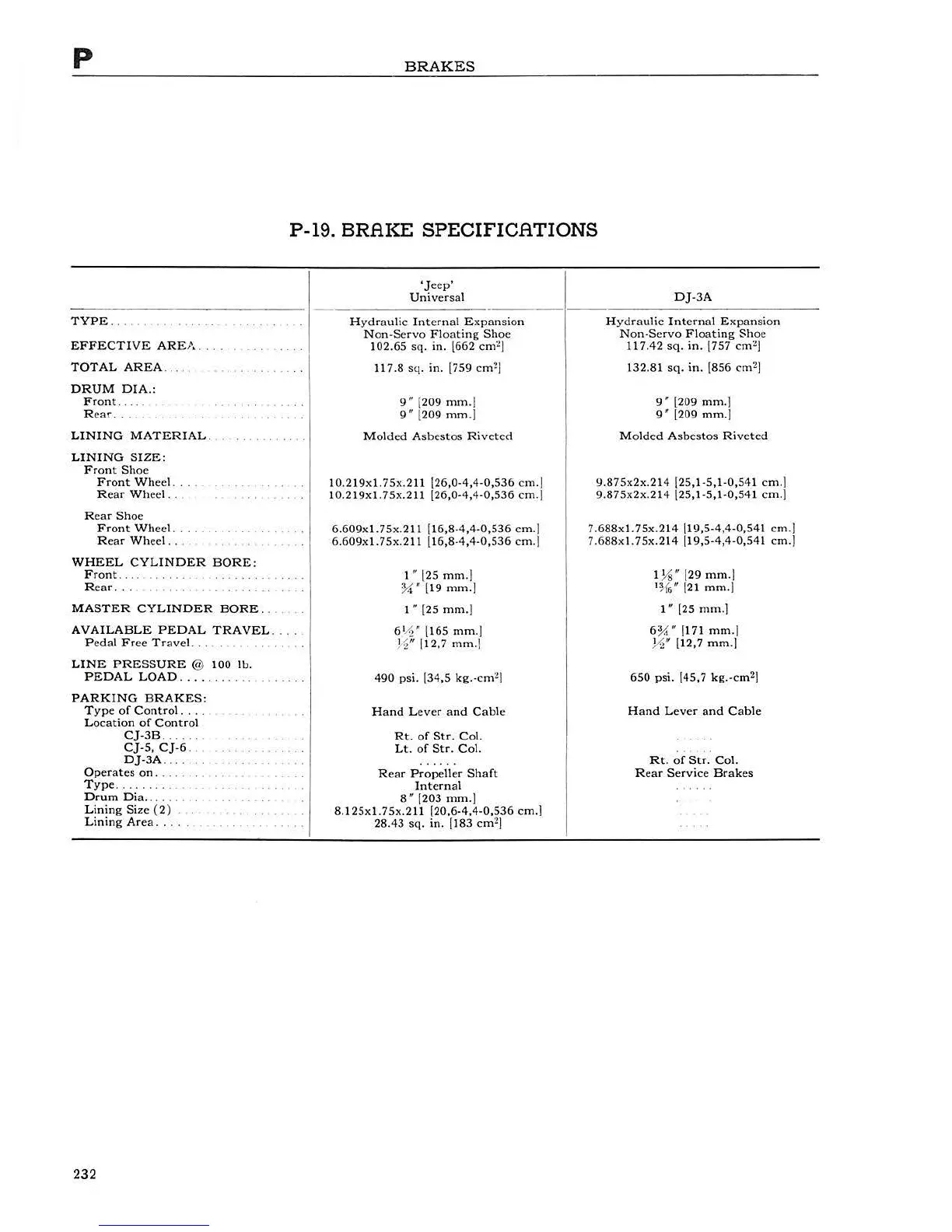

P-19. BRaKE SPECIFICaTIONS
TYPE . . .... .
EFFECTIVE AREA . .. .
TOTAL AREA . .
DRUM DIA .:
Front.
Rea r . . ...
LIN I NG MATERIAL .
LI N I
NG SIZE:
Fron t Sh oe
Front Wheel . .. .
Rear Whe el . .
Rear Shoe
Front Wh eel . . . . .. . .
Rear Wheel . . . .
WHEEL CYLINDER BORE:
Front .. . ... .... .... ... .
Rear .. . . ....... . .
MASTER CYLINDER BORE . . .
AVAI L ABLE PEDAL TRAVEL ... .
Pedal Fr ee Trav el.
LI
NE PRESSURE @ 100 lb.
PEDAL LOAD .... ..... . .
PARKING BRAKES:
Type of Control .... .
L
ocation of Control
Cj-3B . ... . . .
Cj -5, Cj-6. . .. ..... .. . .
D
]-3A ....... ... .. .
Operates on. . . . . . . . . . . . .
Type .. . . . . .. . ... . ..
D r um Dia . .. .. ............ .
Lining Size (2)
Lining Area .. .. .
232
'Jeep'
Universal
Hydr aulic Int e rna l Expansion
N on-Servo Fl oating Shoe
102.65 sq. in. (662 cm 2]
117.8
sq. in. (759 cm2J
9 '" [209 mm. ]
9 " [ 209 mm. ]
Mold ed Asb e stos Riv e ted
10.219xl.75x .211 [26,0- 4,4-0,536 em.]
10.219xl.75x.211 [ 26 , 0-4,4-0,536 em. ]
6.609xl.75x .211 [16,8-4,4- 0,536 em. ]
6.609
xl.75x.2 11 [16,8-4,4 -0 ,536 cm .J
I " [25 mm. J
x· [19 mm.]
1" [25 mm. )
61 -1" [165 mm.]
Vz " [12,7 mm. ]
490 psi. [ 34,5 kg. -em
2
]
Hand L ever and Cabl e
Rt. of Str. Col.
Lt. of Str. Col.
Rear Prop ell er Shaft
Internal
8 ' ] 203 mm. )
8.
125xl. 75x. 2 11 [20,6-4,4-0,536 em.]
28.43 sq. in. [183 em 2]
DJ -3A
H
ydraul ic Int erna l Expan sion
Non-Servo Floating Shoe
117.42 sq. in. [757 cm
2
]
132.81 sq. in. [ 856 cm2]
9 • [ 209 mm. ]
9• [209 mm .]
Molded Asbestos Riveted
9. 875x2x .214 [25,1-5,1-0,541 em .]
9.875x2x.214 [25,1·5,1-0,541 em. ]
7.688x 1.75x.214 [ 19,5 -4,4-0,541 em .]
7.6
88xl.75x.214 [19,5-4,4-0,541 em. ]
1
Ys.l 29 mm .]
1 ~
6
• [ 21 mm .]
1 " [25 mm. ]
6% " [171 mm. [
.!/:!" (12,7 mm. ]
650 psi. [45,7 kg. -cm2]
Hand Lever and Cab le
Rt. of Str. Col.
Rea r Servic e Brakes
