: F4-134 ~NGI;NE
c. The rocker arms are paired; that is, two. of. the
arms are ari:gled ,to the right and two are angled to
the left. One of' e_ach_ type is used on each end of
th~, rocker arm shaft .. Slide a rocker arm with 'the
ac;Ijusting screw end of the rocker arm angling
away from the bracket onto the shaft so that' the
adjusting screw is on the same -side· of .the ·shaft
as the mounting hole in the bracket.
d. Temporarily secure-the end bracket in place by
installing a rocker arm cover- stud in the tapped
opening in the top of the,support. "
e. Assemble the par\:s on 'the opposite ¢nd of the
rocker arm shaft repeating steps c and d above. ·
E-79. ENGINE ASSEMBLY
The engine assembly procedure in the following
paragraphs is given in the 'sequence to be followed
when the engine is. being completely overhauled.
Individual inspection; repair, and fitting ope~ations
previously covered in detail are made throughout ·
the assembly procedure. The assembly procedure
does not cover accessories. If a new cylinder block
.· •,'1;
10
fitted with pistons is used;, many of the operations
will noJ be, required. . · .. ·
Mount the cylinder block in an engine repa:ir stand.
'If an engine' stand is not available, perform the
following assembly operation in a manner designed
to protect personnel against .an accident·. and .the
en,~ine and its parts against d'i\ma~e.
~ote: With the adoption of· the 4~" 'starting
'D:lotor; a new flyWheel housing, rear engine plate,
and fly\Vheel ring gear were required: ··
E~so. lnstaJI Oil (;all~ry Plug
Coat plug thFeads with a suitable sealing .compound
and install. the plugs. in ~he front .and rear ends of
the oil gallery in the cylinder block anc;I t;he rear
end of the cyllnder head .. Torque the plugs 20 to
25 Jb-ft. [2,8 a, 3,4 kg,ll)..].. " .. _ . . _ .
There-is also a pipe plug (.Ys" [3,2 mm.] slotted,
headless) in the openi11g · in, the. main oil gallery
inside the cylinder block at N'o .. •2 cylinder -and
another pipe plug (_Ys" square-head) in the opening
. .. . . ~ . . ' . . . . - . .
m. is
-i
18

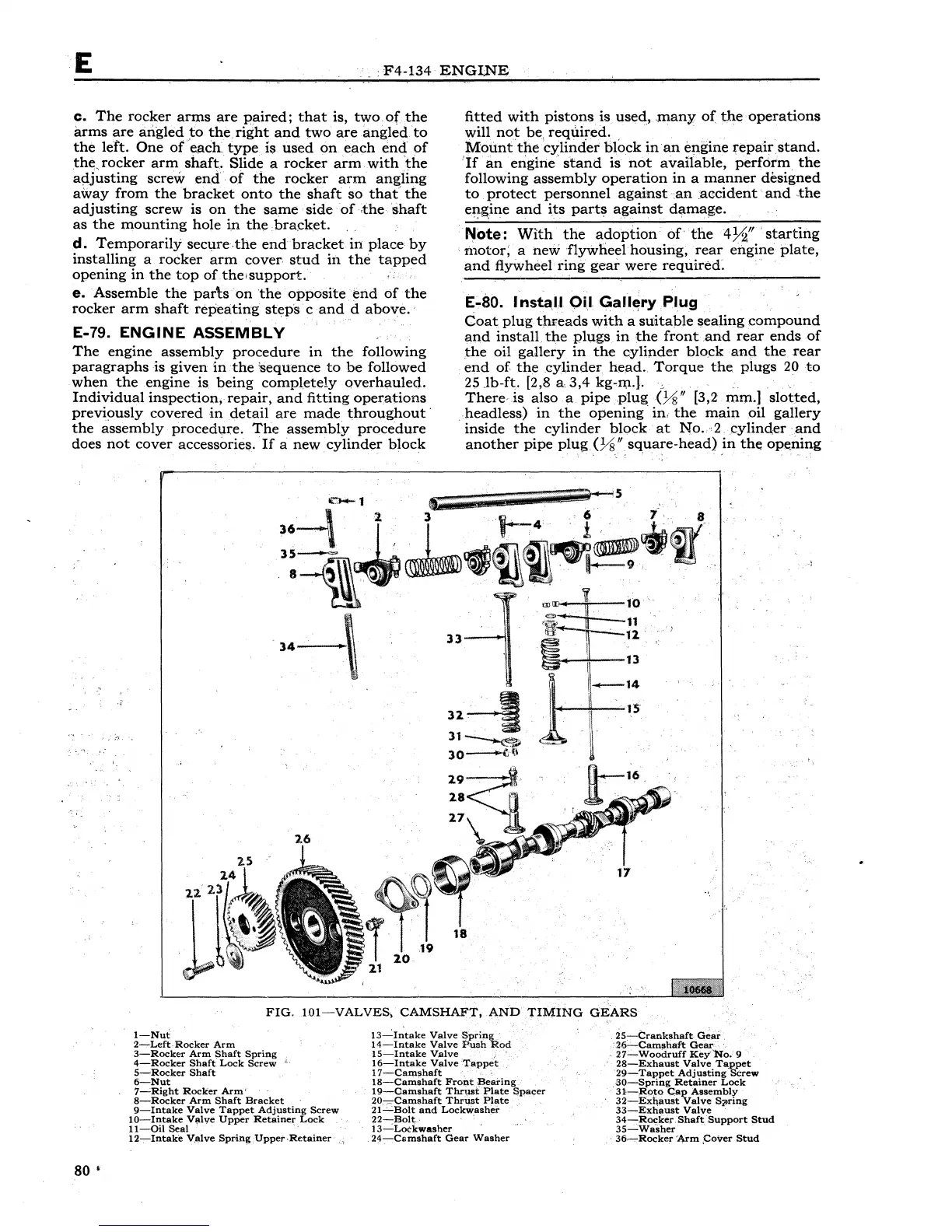

FIG. 101-VALVES\ CAMSHAF't, AND TIMING GEARS
80'
1-Nut
2-Left.Rocker Arm
3-Rocker Arm Shaft Spring .
4-Rocker Shaft Lock Screw '·
5-Rocker Shaft
6-Nut
7--'Right Rocker Arm•·
8-Rocker Arm Shaft Bracket
9-Intake Valve Tappet Adjusting Screw
~~=b~ra~~"'~lve Upper Retainer_Lock
12-Intake V:alve Spring:Uppei"-Retainer· ,.:
13___:Intake Valve Spring
14-Intake Valve Push Rod
15-lntake Valve . i '
16-lntake Valve Tappet
17-Cam~haft · .. ·.. ·,
18-Camshaft Frol;lt .. Beai-ing
19-Cainshaft Thr~t Plate Spacer
20_-,-Camshaft Thrli,st Plate
21-"-Bolt and LockWasher
22-Bolt.· · ·
i 3___:Lockwasher
2~-Csmshaft Gear Washer
2 5-c-Crankshaft G~ar
.•26c__Camshal't Gear··.:
... 27-'--Woodruff Key"No.'9
28-Exhaust Valve Ta,ppet
29-Tappet Adjusting Screw
. 30-Spring Retainer Lock
31-~l)tO Cap Assembly
32-Exty,ust Valve S;oring
33-Exhauat Valve · ·
34-Rc>c;ker.Shaft Support Stud
35-Washer
· 36---,Rocker 'A;rm ,Cover Stud
