21

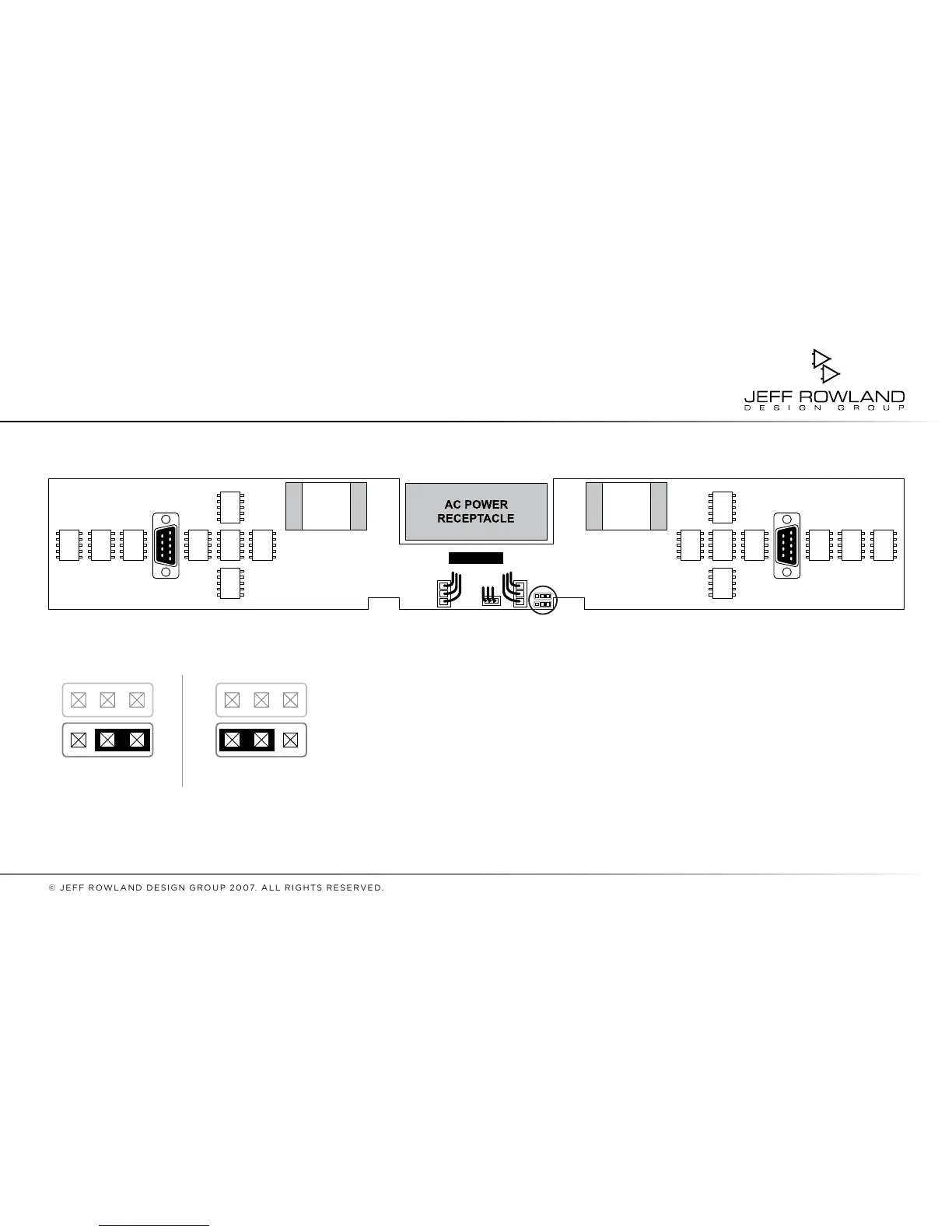

FIGURE 2: Location of jumpers on back of the rear panel
STEP 4: Locate jumper J17 on the rear panel board of the unit. Using needle-nose pliers,
move the jumper from between pins 2 and 3 to pins 1 and 2, DISPLAY BLANKING ON.
(See FIGURES 2 and 3)
STEP 5: Replace the bottom cover. Using a #2 Phillips screwdriver, reinstall the twelve
screws that secure the bottom cover to the chassis.
FIGURE 3: Display blanking settings
5-DISPLAY BLANKING ON
1 2 3 1 2 3
j-17 j-18
5-DISPLAY BLANKING OFF
(DEFAULT)
j-17 j-18
jUMPERS
DEFAULT POSITIONS
SHOWN
