23
STEP 8: Test the remote with the CONCERTO
Stereo Preamplifier to make sure that the
units operate properly together.
STEP 9
: After verifying proper operation,
replace the remote housing and reinstall the
two screws that secure the housing.
STEP 4: Locate jumper J18 on the rear
panel board of the unit. Using needle-nose
pliers, move the jumper from between pins
2 and 3 to pins 1 and 2. (See FIGURES 4 & 5)
STEP 5: Replace the bottom cover. Using
a #2 Phillips screwdriver, reinstall the
twelve screws that secure the bottom cover
to the chassis.
STEP 6: Using a #1 Phillips head screw-
driver, remove the two screws that secure
the remote transmitter housing. Open
the housing.
STEP 7:
Locate switch position
SW7
.
Adjust slider #1 of the switch to the upper
‘ON’ position. This switch now corresponds
with the new setting on jumper J18 of the
rear panel board.
FIGURE 7: Detail of switch
position sw7
SWITCH SW7

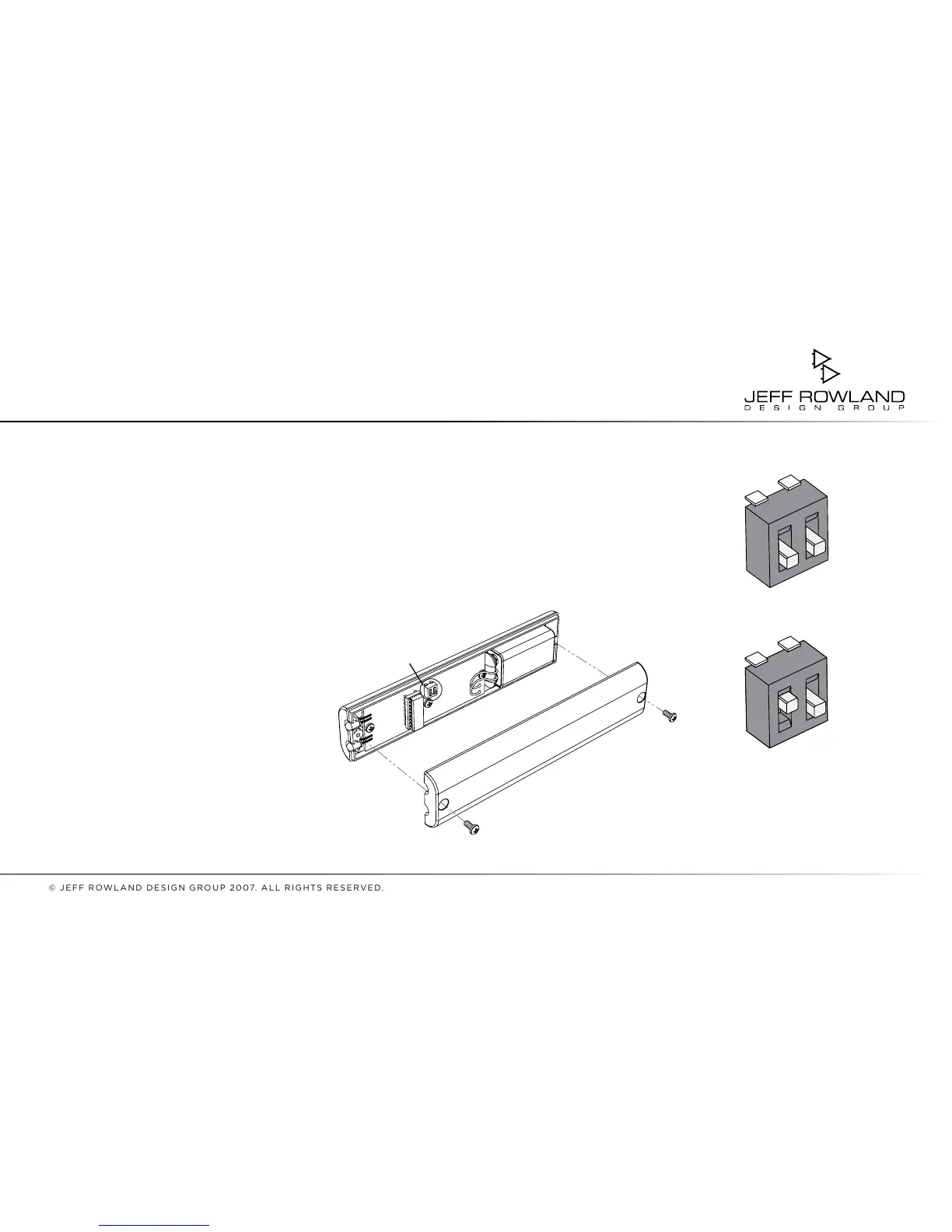

FIGURE 6: Remote transmitter housing
with details of switch position SW7
1
O
N
2
SWITCH SW7 POSITION 1
(DEFAULT)
SWITCH SW7 POSITION 2
1
O
N
2
