Rubber track maintenance
3.Mesh the track links in the sprocket and
place the other end of the track on the track-
stretching wheel.
4.

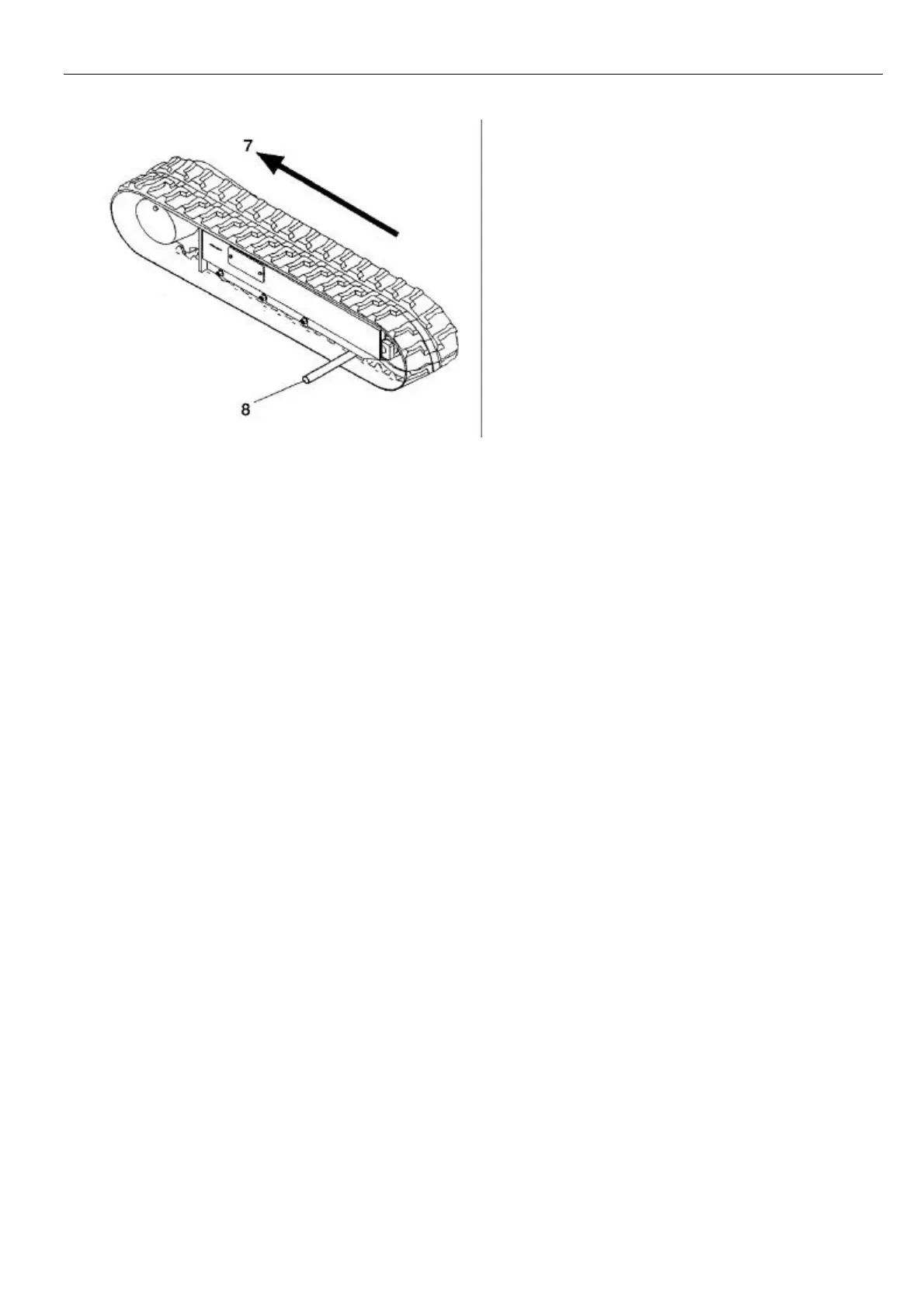

4.Rotate the driving gear in erverse (7) and
pull the track soles inside the frame (8)
5.Position the track using a steel tube and turn
the driving gear again.
6.Make sure track links mesh correctly in the
sprocket and in the track-stretching wheel.
7. Adjust track tension.
8.Set the tracked undercaaiage on the ground.
