Joint

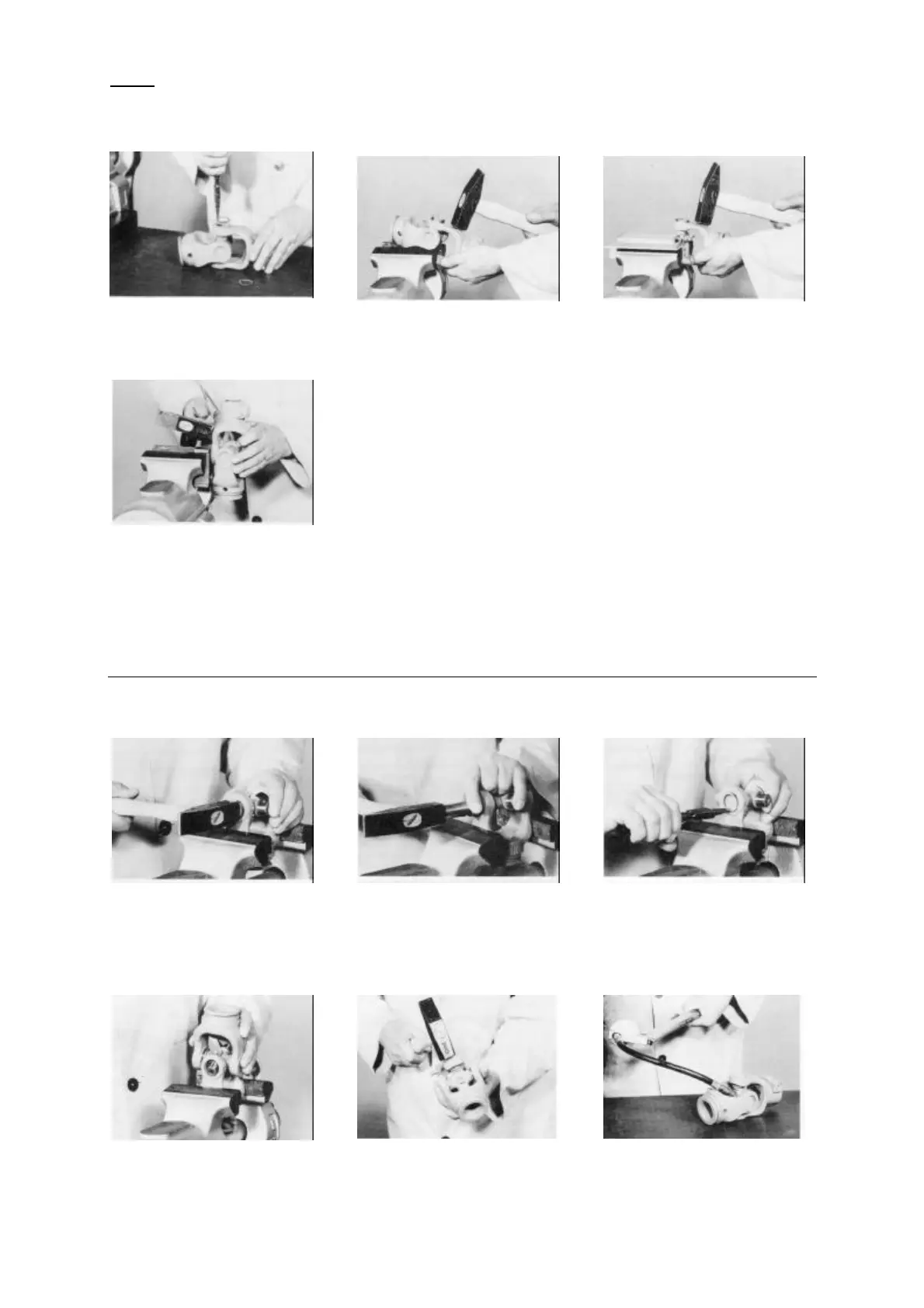

Dismantling
Assembly
Remove retaining ring.
Place joint as shown above and use light hammer blows to drive
up bearing bush.
As a function of size, fix
bearing bush into spezial
tool SW23 or SW27 and
remove bearing bush by
light hammer blows onto
the yoke or by rotating it.
Mount cross into yoke. Use
cross journals to guide
bearing needles when
inserting bushes.
Drive in bearing bush
until annular groove is
visible.
Mount retaining ring.
When mounting second
yoke, make sure that
tapered lubricating fitting
Relieve joint from stress
by applying hammer
blows to yoke ears.
Grease joint.
