Jensen CAR68 - Input; Output Wiring Diagram

5
CAR68 INSTALLATION
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
When replacing a fuse, make sure to use the correct type and
amperage. Using an incorrect fuse could cause damage. The unit
uses (1) 15 amp ATO blade-type fuse located on the back of the unit.
Wiring Notes:
Front / Rear camera inputs
Up to two cameras (not included) can be used.
We recommend optional JENSEN Backup Camera Part #
BUCAM200J for FRONT CAMERA and BUCAM300AJ or
BUCAM400AJ for REAR CAMERA
POWER
MAXIMUM OUTPUT 500mA
YELLOW
YELLOW
BLACK
Replace with
ATO Ty pe fuse
Only

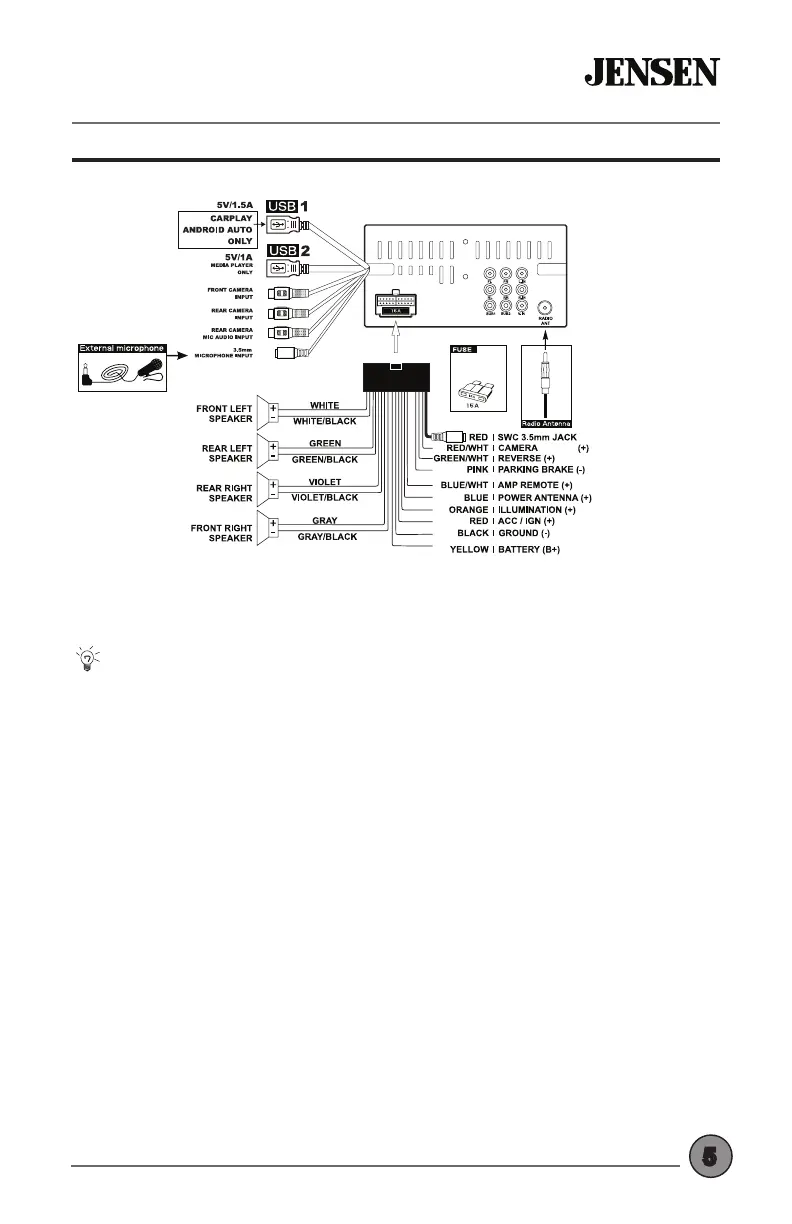

Input / Output Wiring Diagram
