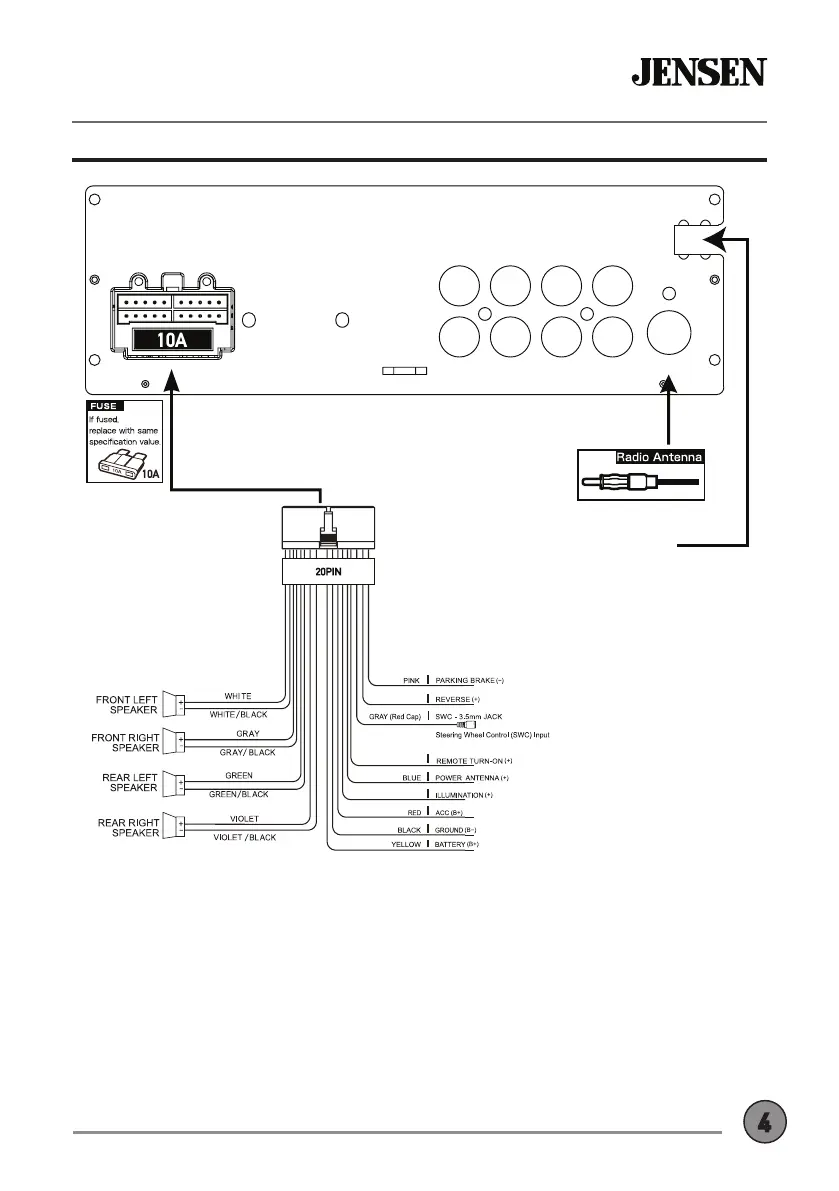

Wiring Diagram - Inputs/Outputs
CDR6221 INSTALLATION
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could
cause damage. The unit uses (1) 10 amp ATC mini style fuse located on the power connector.
Wiring Notes:
Rear camera input
A rear view camera (not included) can be used with the Camera input.
VIOLET/WHITE
BLUE/WHITE
ORANGE
RR OUT
FR OUT
RL OUT
FL OUTV OUT
CAM IN
SUB OUT
SUB OUT
ANT
(Compatible with most SWC Interfaces)
EXTERNAL MIC INPUT
To Next Page
