CONTROLS AND INDICATORS

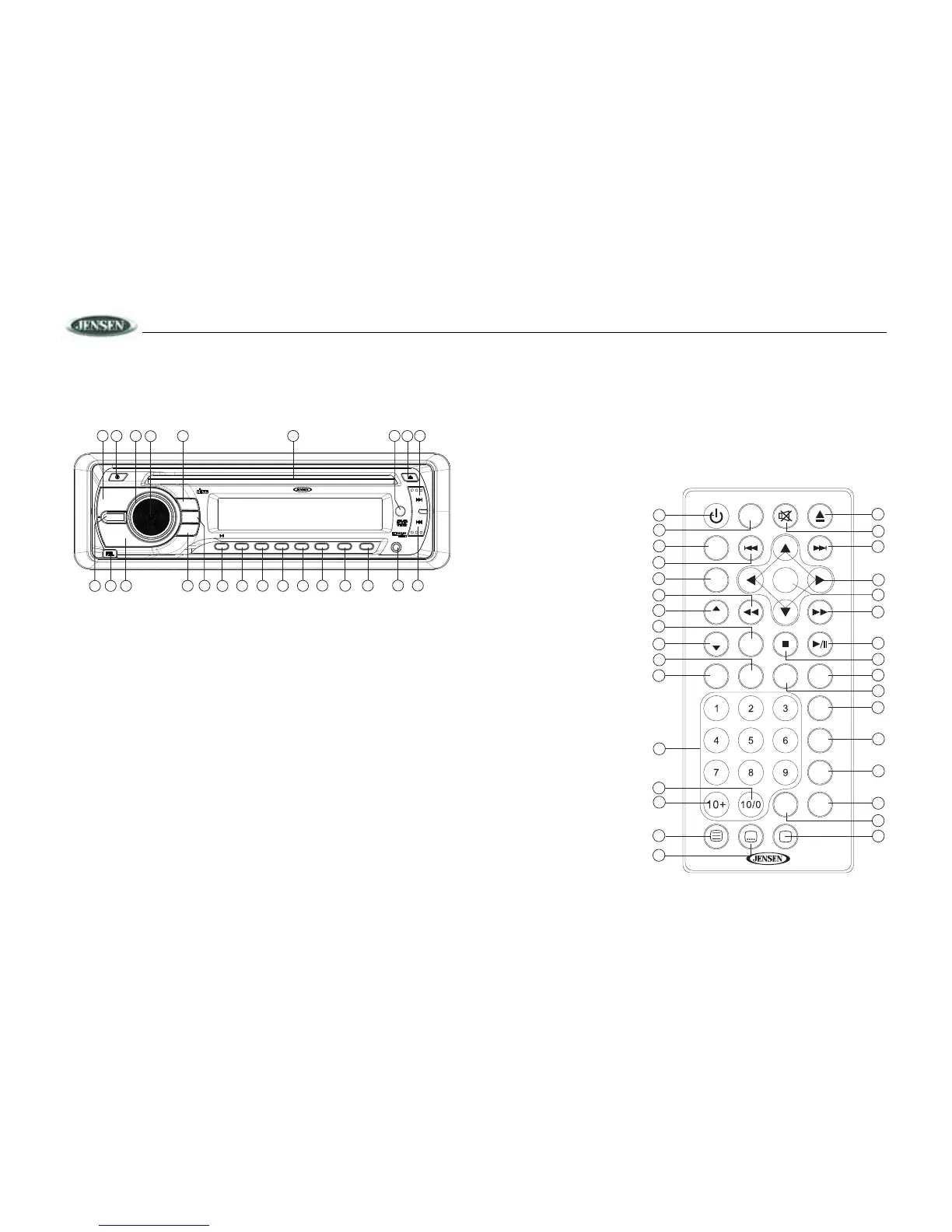

The buttons located on the unit and the remote control that perform the same function are
assigned the same number for reference on the diagrams and in the text.
Front Panel Operation
1. Power
2. Eject
3. Front Panel Release
4. Audio Control Button
5. Mode/Source Select
6. Volume Control Knob
7. Mute
8. Preset Equalizer
9. Local/Distant Reception Setting
10. Loudness Boost Setting
11. Auto Store/Preset Scan
12. Preset 1, Play/Pause
13. Preset 2, Intro Scan
14. Preset 3, Repeat Play
15. Preset 4, Random Play
16. Preset 5
17. Preset 6
18. Clock Display
19. Band Select
20. Fast Forward/Advance Chapter
21. Rewind/Previous Chapter
22. Auxiliary Input (AUX IN2)
23. Infrared Sensor
24. Disc Slot
Remote Control Operation
Using the Remote Control
Point the remote control towards
the player front face remote
sensor IR (2). The operation
angle is approximately 30
degrees in each direction of the
front of the remote sensor.
