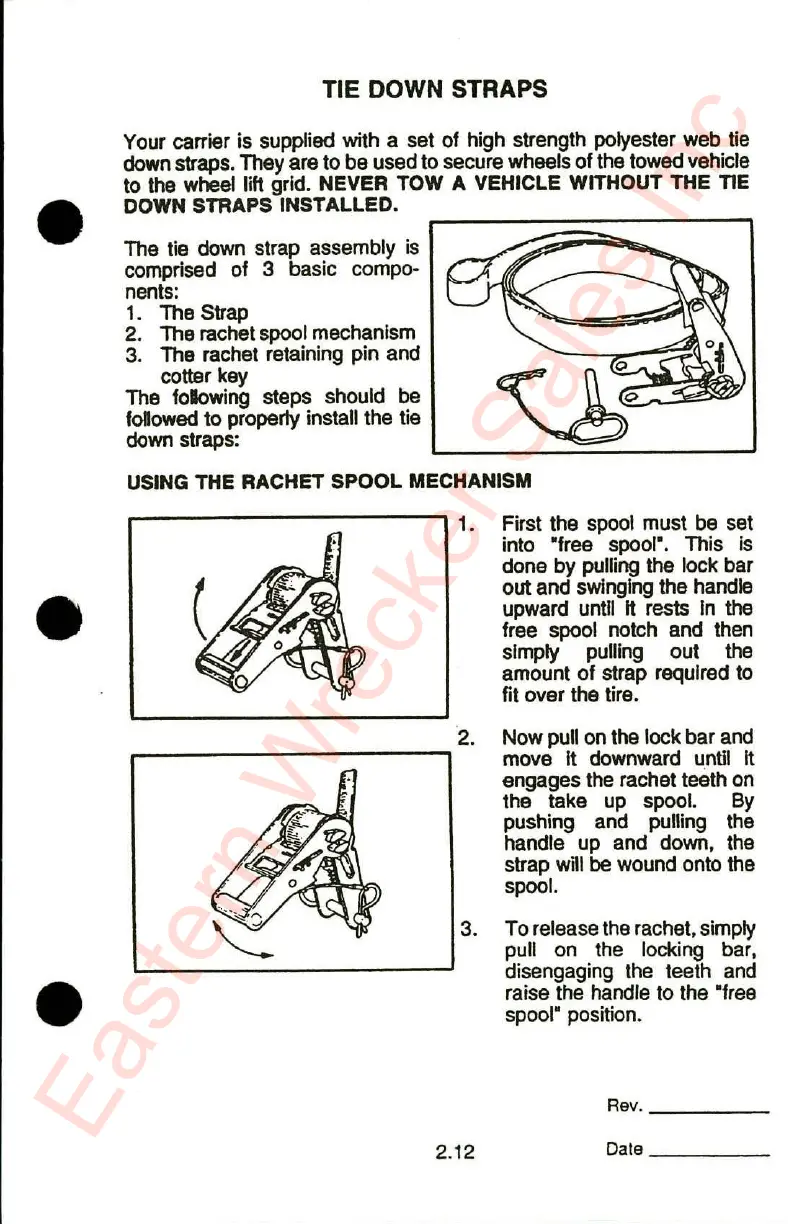

TIE DOWN STRAPS
•
Your carrier is supplied with a set of high strength polyester web tie
down straps. They are to be used to secure wheels of the towed vehicle
to the wheel lift grid. NEVER TOW A VEHICLE WITHOUT THE nE
DOWN SmAPS INSTALLED .
The tie down strap assembly is
comprised of 3 basic compo-
nents:
1. The Strap
2. The rachet spool mechanism
3. The rachet retaining pin and
cotter key
The folewing steps should be
foDowedto properly install the tie
down straps:
USING THE RACHET SPOOL MECHANISM
1. First the spool must be set
into "free spoo'". This is
done by pulling the lock bar
out and swinging the handle
upward until It rests In the
free spool notch and then
simply pulling out the
amount of strap required to
lit over the tire.
2. Now pull on the lock bar and
move It downward until It
engages the rachet teeth on
the take up spool. By
pushing and pulling the
handle up and down. the
strap will be wound onto the
spool.
3. To release the rachet, simply
pull on the locking bar,
disengaging the teeth and
raise the handle to the "free
spool" position.
•
•
Revo _
2.12
OaI8 _
Eastern Wrecker Sales Inc
