NOTICE!
Signal cables must not be laid parallel to high-voltage current lines or mains cables. Lay supply and signal
lines in separate channels. An angle of 90° is required at line crossings. If signal lines are longer than 2 m,
shielded cables must be used.
ATTENTION!
To avoid premature wear of the gear, always ensure the correct rotation direction of the motor: counter-
clockwise (to the left), looking toward the fan wheel.

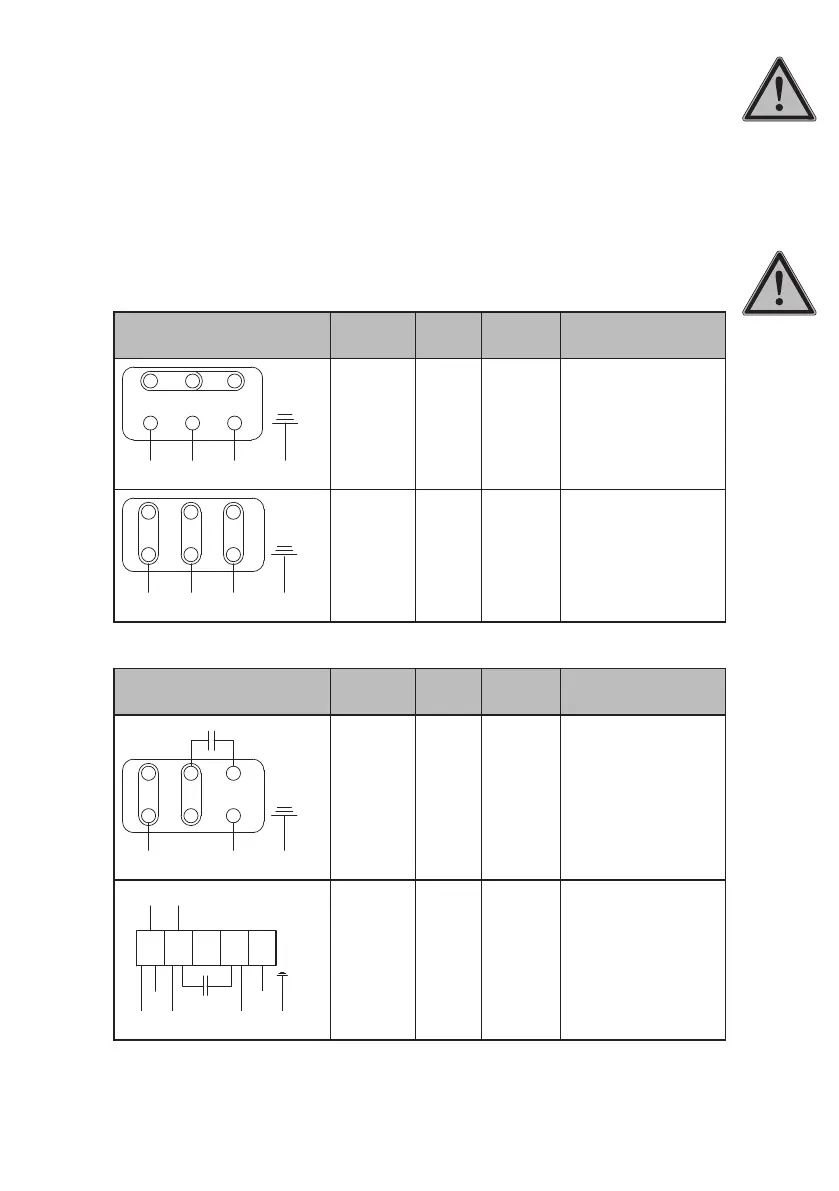

7.4.1 Drive motor connection
IMPORTANT!
Note the data on the motor rating plate
Connection MEMDOS Phases Motor
supplier
Note
W2
U2
V2
U1 V1 W1
L1 L2 L3 PE
E 4...156,
E 160...380
3~ All Y-connection (Standard)
W2
U2
V2
U1 V1 W1
L1 L2 L3 PE
E 4...156,
E 160...380
3~ All Delta connection
MEMDOS E three-phase motors
Connection MEMDOS Phases Motor
supplier
Note
Z1
TB2
U2
U1 Z2
TB1
L N PE
CB
E 4...156 1~ ATB
U1
Z1
U2
PE
C
1
2
3
4
5
T1 L
N
T2
Z2
E 4...156 1~ EMG 230 V AC
or 120 V AC (CSA)
