Jesco MEMDOS E - Dimensional Drawings

4. Dimensional drawings
90
75
31
C

9
130
~ 376
B 97
18
32
70
~ 80 ~ 107
L
A
L

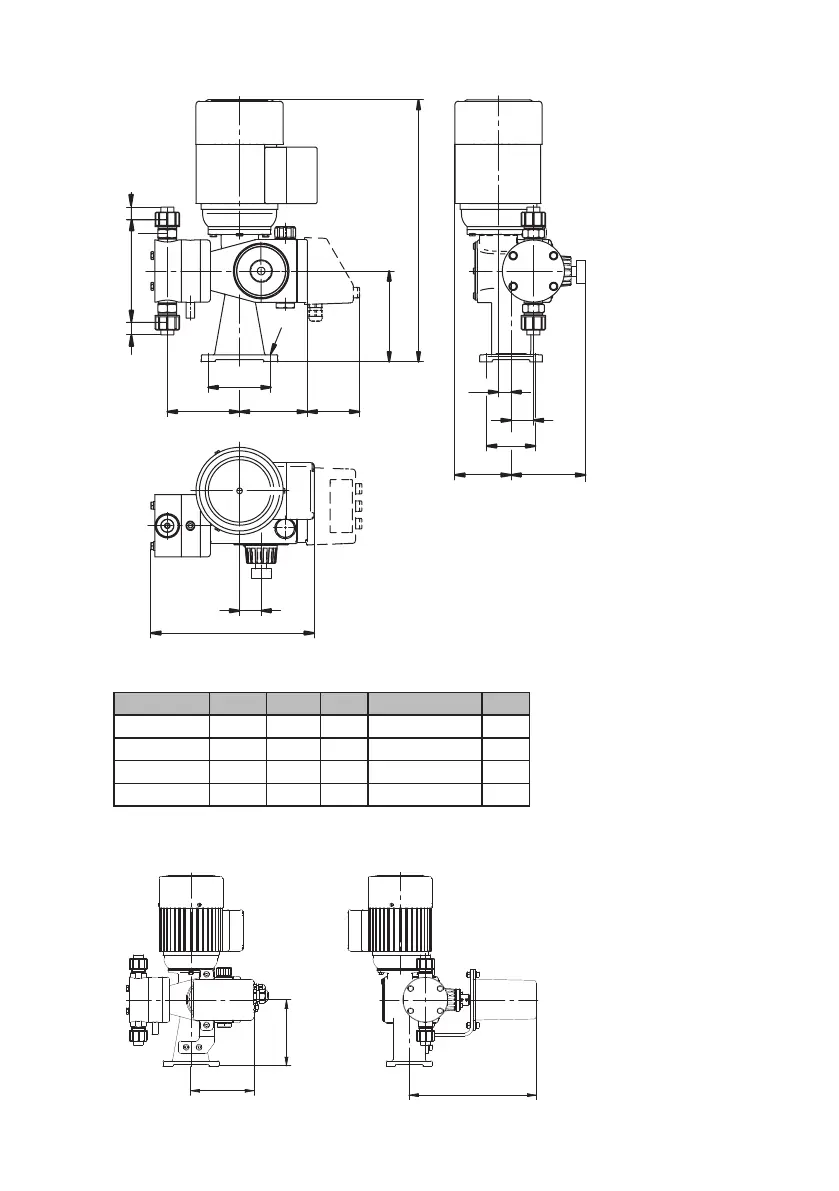

Dimensional drawing MEMDOS E/DX 4..0.156
E/DX A B C Connection L
4...26 118 95 222 6/12 13
50 153 104 234 6/12 13
75, 76 153 104 234 ø 16 internal 17
110...156 246 117 259 ø 16 internal 22
All dimensions in mm
268~
133
177
124
250~
130
Dimensional drawing MEMDOS E 4..0.156 ATE
(ATEX Motor: 473.5)
Dimensional drawings | Operation & Maintenance Instructions | 9
