ELECTRIC SUPPLY CONNECTION
Input wires should be connected to main terminal box below the
electrical box in back of headstock on headend plinth. The
connecting wires/cable should be big enough for more than 3HP
motor as well as short from the power source. Main motor rotation
must be clockwise viewed from the pulley end. Should motor run in
wrong direction, interchange any two of the three phase leads.
Appropriate wiring diagrams are included in this manual.
WARNING:
All electrical power connections must be provided by a qualified
electrician.
Proper grounding and fused main disconnects are necessary.

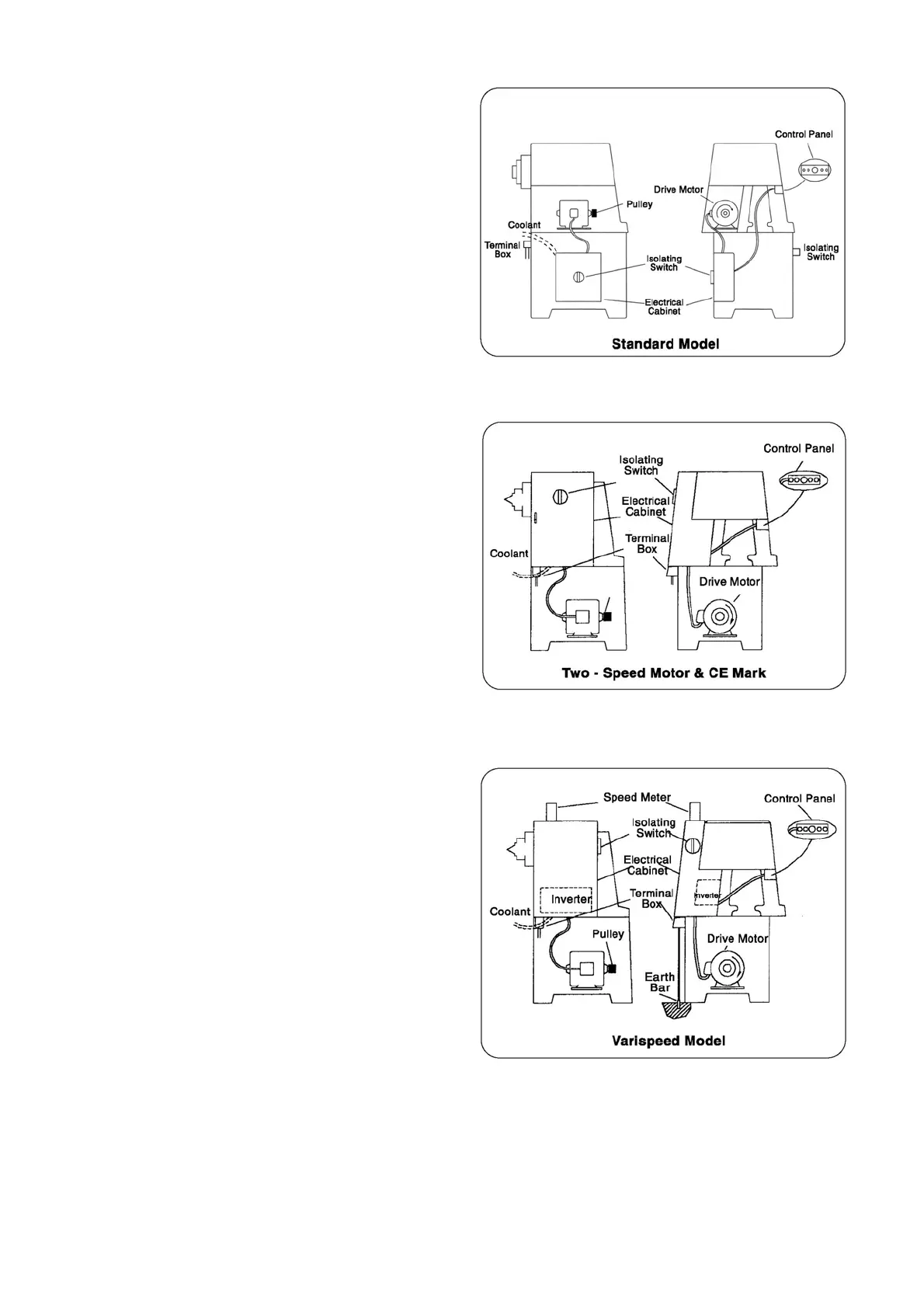

Fig.3
Fig.4
Fig.5
