Jesco PRINCE - Lathe Dimensional Drawings; Conventional Lathe Overall Diagram

6

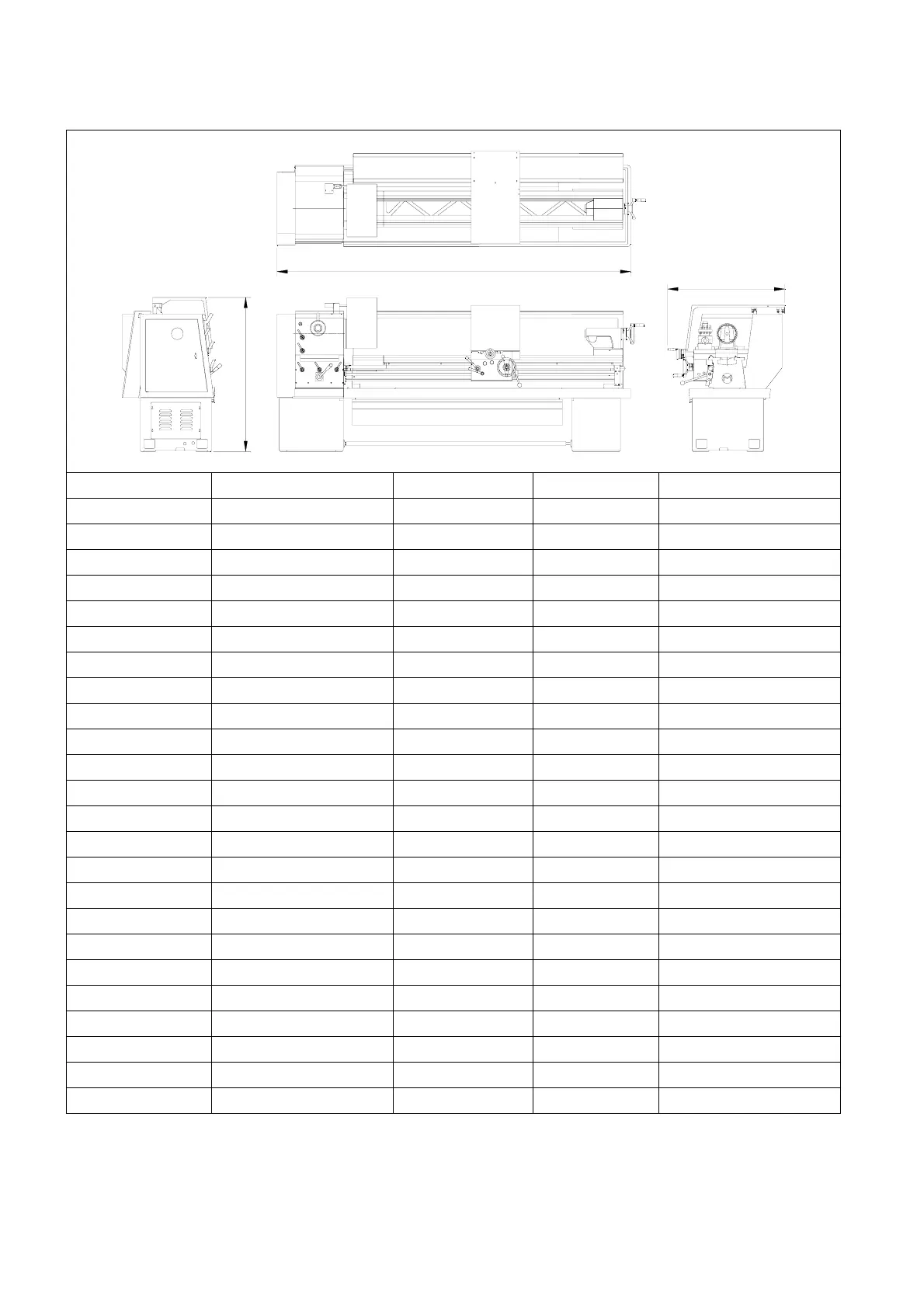

CONVENTIONAL LATHE Overall drawing
A
B
C
Model A B C
Prince 1330 Prince 750 1550 724 1175
Prince 1340 Prince 1000 1800 724 1175
Studturn 1430 Studturn 750 1610 888 1223
Studturn 1440 Studturn 1000 1864 888 1223
Champion 1530 Champion 760 1955 1031 1232
Champion 1540 Champion 1000 2205 1031 1232
Champion 1550 Champion 1250 2455 1031 1232
Major 1840 Major 1800-1000 2237 1086 1325
Major 1860 Major 1800-1500 2745 1086 1325
Major 1880 Major 1800-2000 3254 1086 1325
Major 2040 Major 2000-1000 2237 1086 1349
Major 2060 Major 2000-1500 2745 1086 1349
Major 2080 Major 2000-2000 3254 1086 1349
Major 2240 Major 2200-1000 2237 1086 1375
Major 2260 Major 2200-1500 2745 1086 1375
Major 2280 Major 2200-2000 3254 1086 1375
General 2660 General 2600-1500 3900 2000 1700
General 2680 General 2600-2000 4425 2000 1955
General 3060 General 3000-1500 3900 2000 1700
General 3080 General 3000-2000 4425 2000 1955
Trainer 1330 Trainer 1330 1640 1060 1580
Trainer 1340 Trainer 1340 1940 1060 1580
Trainer 1430 Trainer 1430 1640 1060 1900
Trainer 1440 Trainer 1440 1940 1060 1900
.
