Jester Operating Manual Technical Specification
50 of 52 Jester Manual 73-403-00 Issue 3.2
External Floppy Drive
If required, an external floppy drive can be connected to the desk, via USB 1.1
External Storage Devices (Memory Sticks)
The primary method of storage for the Jester is via USB Memory Sticks (also known
as Flash Disks or Mass Storage Devices). These can be connected via the USB
port.
Video Output
15 pin D connector, VGA text output. VGA is non-interlaced, 80x50 visible
characters, 640x400 visible pixels, 800x449 total pixels, 31.5kHz line rate, 70Hz
frame rate, 64 colours. An alternative monitor resolution may be available – see
Displays Setup in Super User for details.

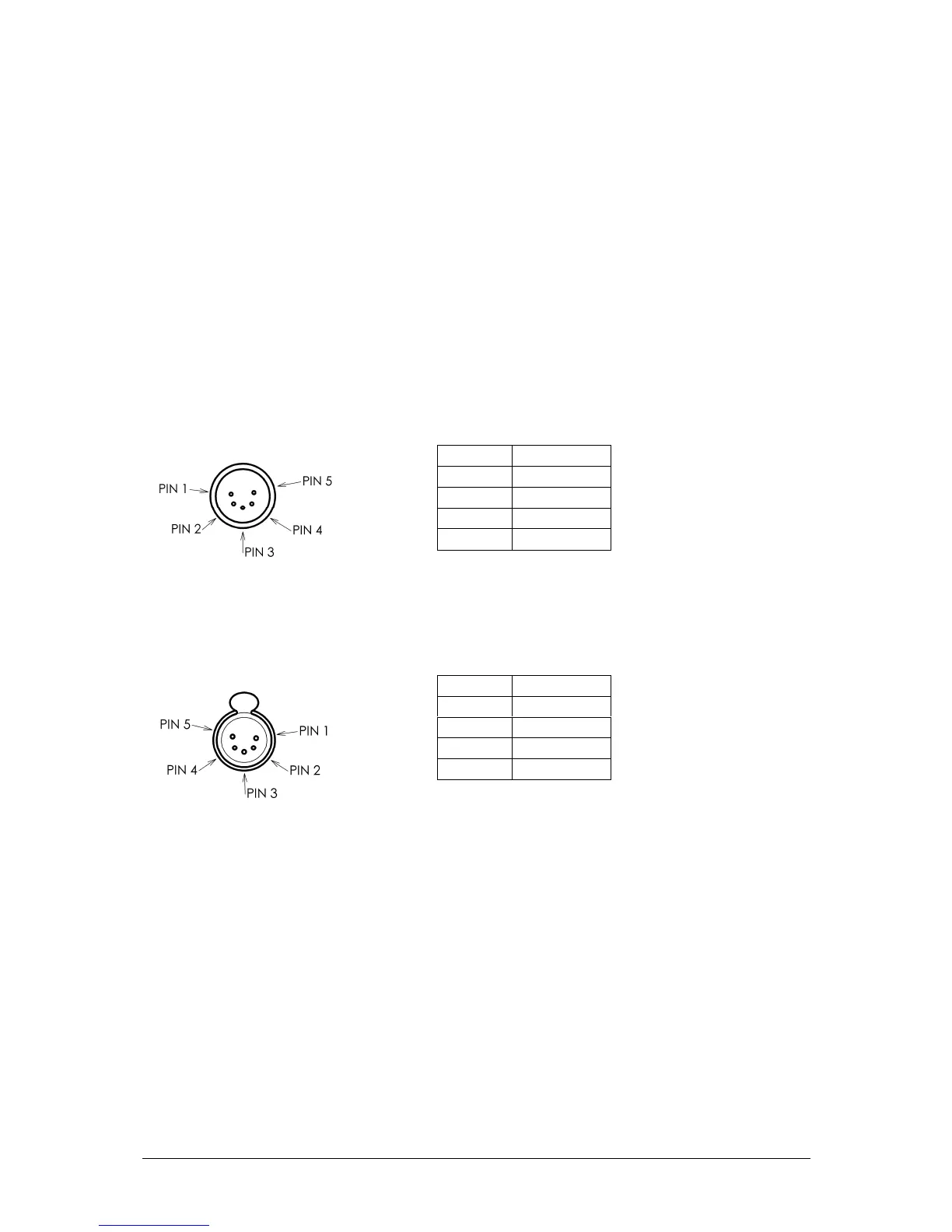

DMX Input
Pin 1 Ground
Pin 2 Signal -
Pin 3 Signal +
Pin 4 Not Used
Pin 5 Not Used
The desk has a DMX Input interface, via 5 pin XLR. This is merged with the desk
channels and output via the DMX Output.
DMX Output
Pin 1 Ground
Pin 2 Signal -
Pin 3 Signal +
Pin 4 Not Used
Pin 5 Not Used
The desk has a DMX output interface, via 5 pin XLR. Data on channels 1 – 512 only.
The end of a DMX chain should always be terminated.

Jester Zero 88 Specifications

General

Type	Lighting Console
Channels	24
DMX Outputs	1
MIDI Support	Yes
Monitor Output	Yes
DMX Channels	512
Control Protocol	DMX512
Display	LCD
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	0 - 40 °C
Storage Temperature	-20°C to 60°C
