Technical Specification Jester Operating Manual
Jester Manual 73-403-00 Issue 3.2 49 of 52

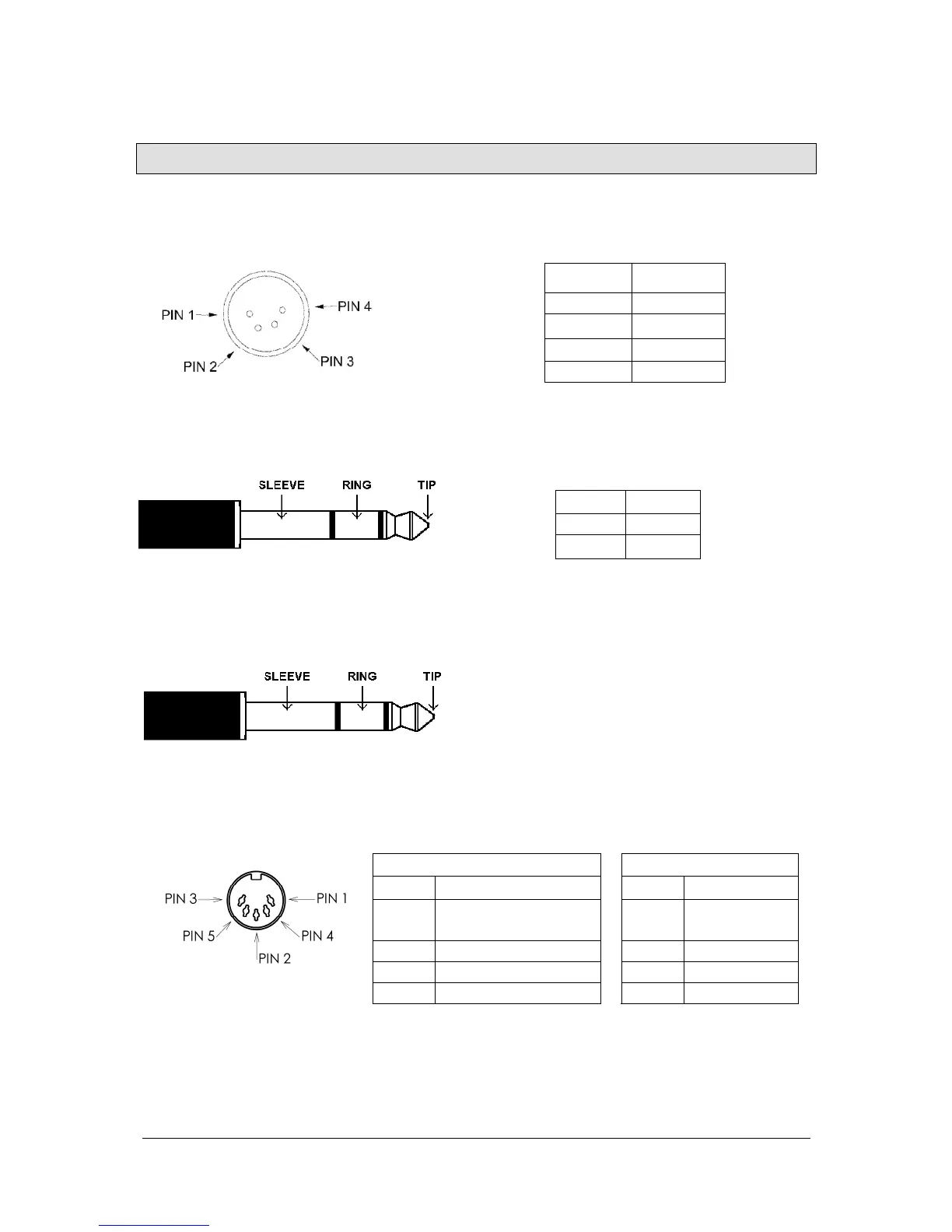

Technical Specification
This section of the manual lists all the various inputs, outputs and connections to the
desk.
Power Supply
Pin 1 0V
Pin 2 +5V
Pin 3 +12V
Pin 4 Not Used
Shell Ground
An inline external power supply unit is used to power the Jester. This is connected to
the desk via a 4-pin XLR connector.
Audio In
Tip Left
Ring Right
Sleeve
Ground
The desk has an audio port on the rear panel, in the form of a stereo ¼ inch jack
sockets. This is used for the Sound Input functions on the desk.
Remote Input
A jack connector provides a remote switch. Short tip to sleeve to simulate a button
push.
MIDI
MIDI Input MIDI Thru
Pin 1 Not Used Pin 1 Not Used
Pin 2 Not Used Pin 2 Signal
Ground
Pin 3 Not Used Pin 3 Not Used
Pin 4 Opto isolated Input
Pin 4 Output
Pin 5 Opto Isolated Input
Pin 5 Output
The desk has MIDI connections, via 5-pin DIN.
USB Port
One external USB port on the front panel.

Jester Zero 88 Specifications

General

Type	Lighting Console
Channels	24
DMX Outputs	1
MIDI Support	Yes
Monitor Output	Yes
DMX Channels	512
Control Protocol	DMX512
Display	LCD
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	0 - 40 °C
Storage Temperature	-20°C to 60°C
