Jet GH-1640ZX Operating Instructions

59

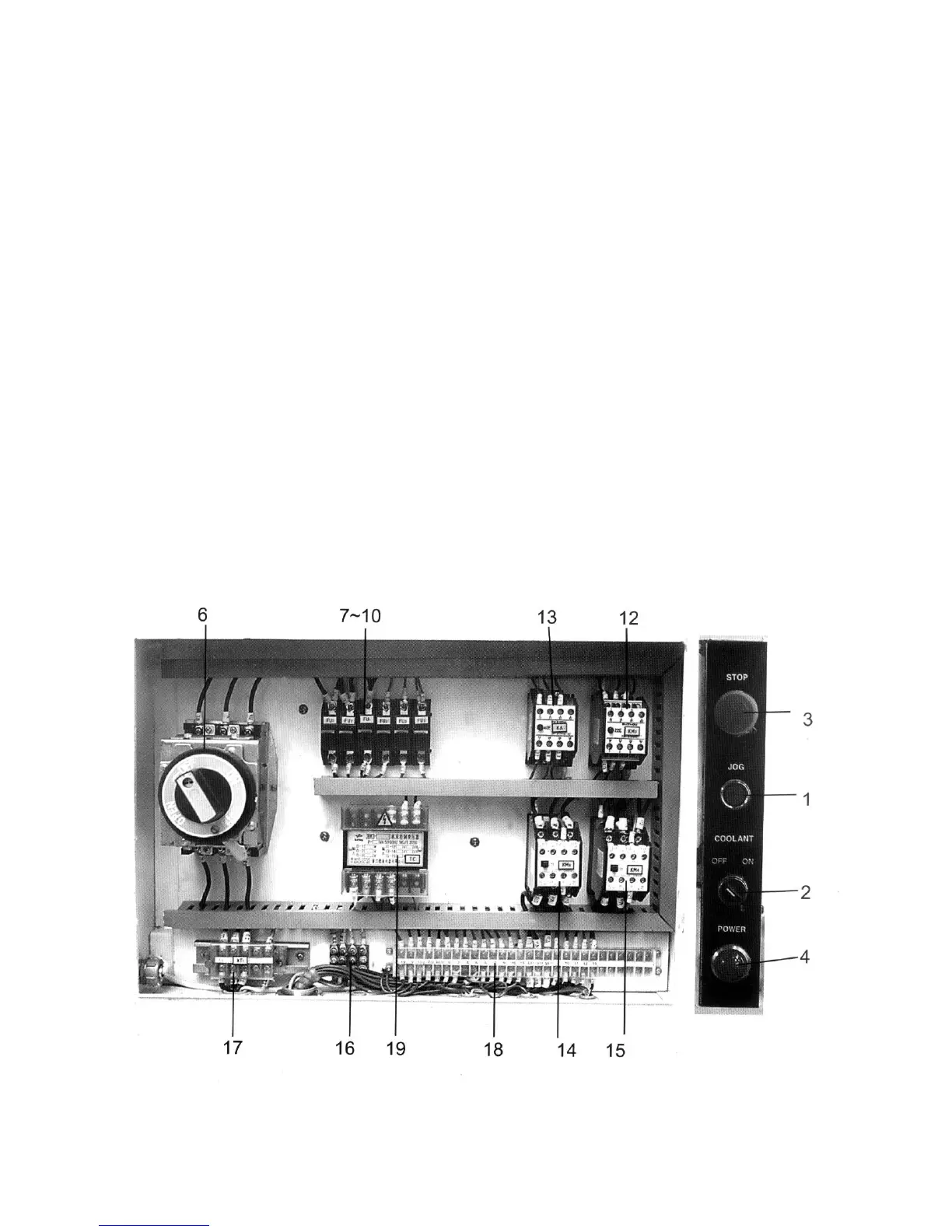

Electrical Cabinet
Index Part
No. No. Description Size Qty.
1 .......... ZX-SB1 .........................Jog Button ..........................................................LAY3-11...................... 1
2 .......... ZX-SA2 .........................Coolant Control Button .......................................LAY3-11X/2 ................ 1
3 .......... ZX-SB2 .........................Emergency Stop .................................................LAY3-012S/1 .............. 1
4 .......... ZX-HL ...........................Power Indicator Light ..........................................XD11-30/20 ................ 1
5 .......... ZX-SA3 .........................Rotary Switch .....................................................HZ3-452 ..................... 1
6 .......... ZX-QF ...........................Master Switch (40A) ...........................................D215-40 ..................... 1
7 .......... ZX-FU1 .........................Fuse (3A) ...........................................................JRT1-16A ................... 1
8 .......... ZX-FU2 .........................Fuse (2A) ...........................................................JRT1-16A ................... 1
9 .......... ZX-FU3 .........................Fuse (2A) ...........................................................JRT1-16A ................... 1
10 ........ ZX-FU5 .........................Fuse (2A) ...........................................................JRT1-16A ................... 1
............ ZX-FB ...........................Fuse Block ............................................................................................ 1
11 ........ ZX-Q .............................Temperature Relay .............................................JW6 ............................ 1
12 ........ ZX-KM2 ........................A.C. Contactor ....................................................3TB40 ........................ 1
13 ........ ZX-KA ...........................A.C. Contactor ....................................................3TB80 ........................ 1
14 ........ ZX-KM3 ........................A.C. Contactor (for 14,16,18” models) .................3TB43 ........................ 1
............ GH-2280ZX-KM3 ..........A.C. Contactor (for 22” models) ..........................3TB44 ........................ 1
15 ........ ZX-KM4 ........................A.C. Contactor (for 14,16,18” models) .................3TB43 ........................ 1
............ GH-2280ZX-KM4 ..........A.C. Contactor (for 22” models) ..........................3TB44 ........................ 1
16 ........ ZX-XB ...........................Copper Plate (for grounding).................................................................. 1
17 ........ ZX-XT1 .........................Wiring Board ......................................................JT1 ............................. 1
18 ........ ZX-XT2 .........................Wiring Board ......................................................JX0............................. 1
19 ........ ZX-TC ...........................Control Transformer ............................................JBK3-100-TH.............. 1
20 ........ ZX-SQ2.........................Stroke Switch .....................................................LXW 5-11N1 ................ 1
