9
Fig 5

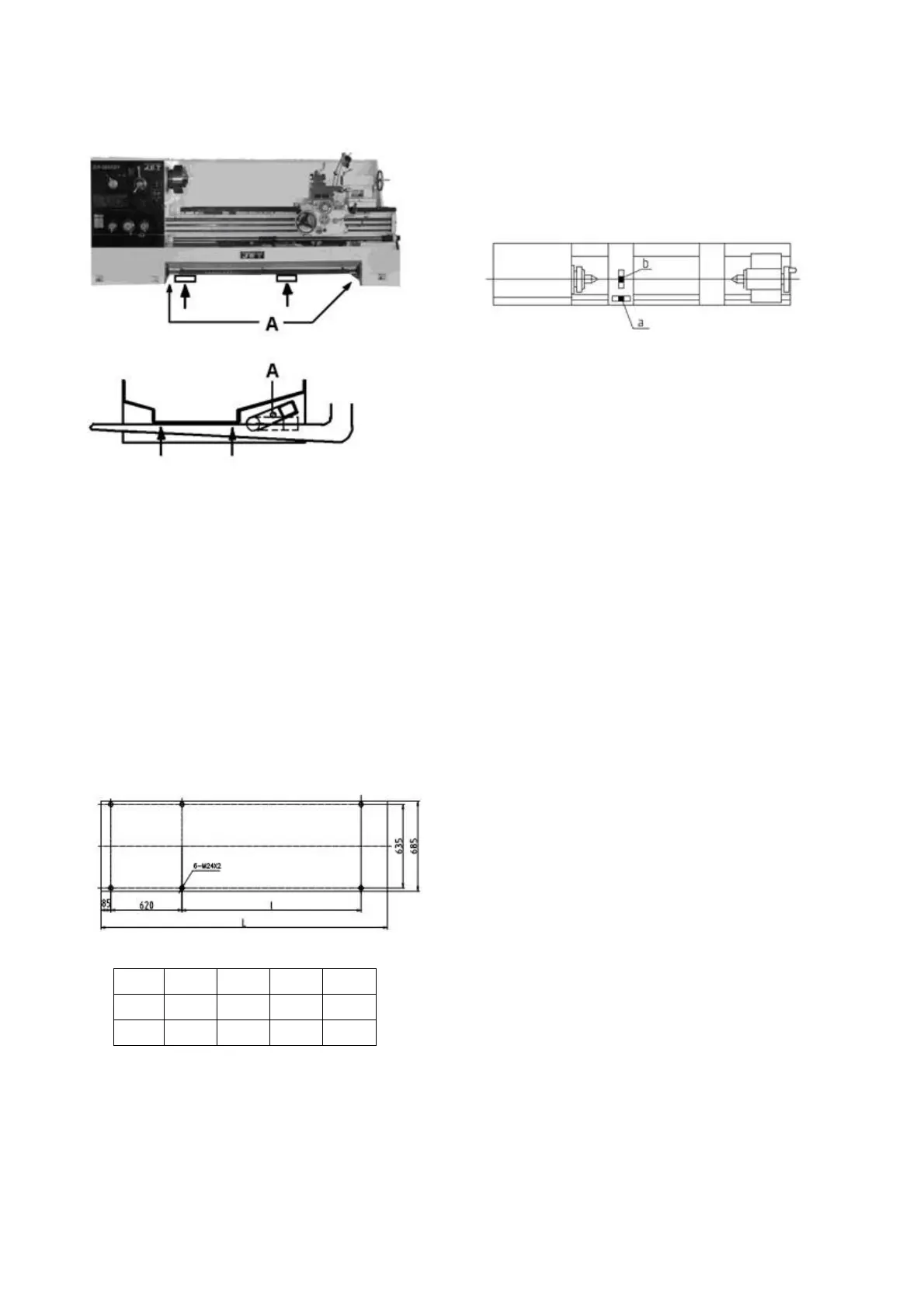

To lift the machine by forklift (Fig 5), the 2 foot pedal
upper stroke limit screws (A) must be removed, so that
the foot pedal can swing up freely and give space for the
forks.
Attention:
The machine is left weighted. The center of weight is
near the headstock.
Foundation:
The machine should be mounted on a solid foundation.
GH-2040-2640 / 2060-2660 / 2080_2680 / 26120 ZH
Size 1000 1500 2000 3000
l 1560 2060 2560 3560
L 2495 2995 3495 4495
Levelling:
Use a machinist’s precision level on the bed ways
and check to make sure that the lathe bed is level.
The lathe bed must be level to be accurate.
a) Deviation over bed length max 0,02/1000mm
b) Deviation over bed length max 0,04/1000mm
5.3 Mains connection
Mains connection and any extension cords used
must comply with applicable regulations.
The mains voltage must comply with the information
on the machine licence plate.
The mains connection must have a
25 A surge-proof fuse.
Only use power cords marked H07RN-F
Connections and repairs to the electrical equipment
may only be carried out by qualified electricians.
Connection takes place on the terminal box on the
back of the machine.
5.4 Initial lubrication
The lathe must be serviced at all lubrication points
and all reservoirs filled to operating level before the
lathe is placed into service!
Failure to comply may cause serious damage to the
lathe!
(see chapter 8 for lubrication).
After one month of operation the oil must be
changed on headstock, gearbox and apron.
The coolant tank has to be filled with coolant (see
chapter 8.7)
