Jet GH-20 ZH Series Operating Instructions

19

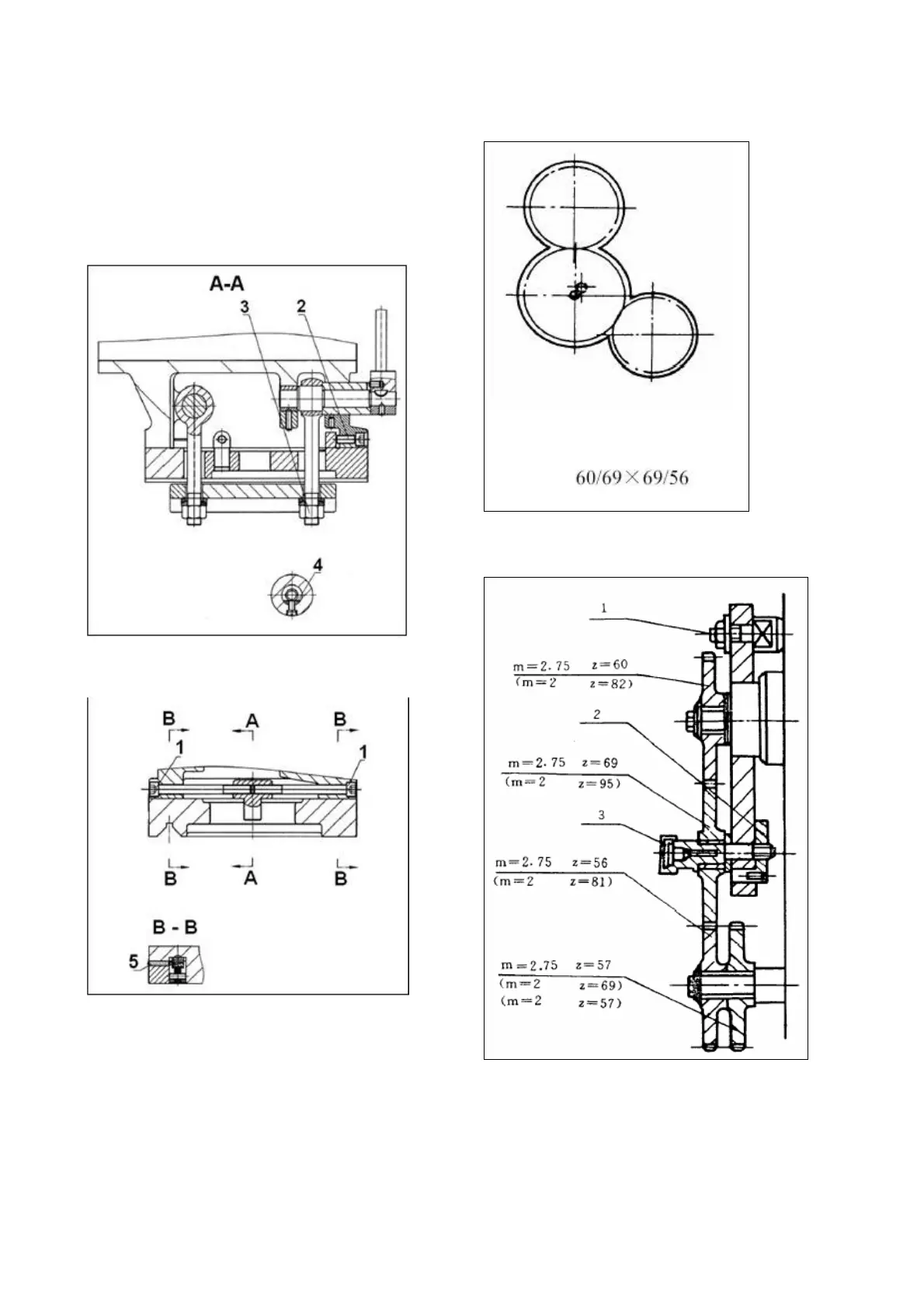

Tailstock
Cross displacement of the tailstock can be realized.
Loosen set screw (2, Fig 23)
Adjust displacement with screws (1, Fig 24)
Fig 23
Fig 24
Change gear bracket
For most threads the standard setting can be used
(Fig 25, 26)
Fig 25
Fig 26
