Jet HBS-1018W - Electrical Schematic for HBS-916 W; Electrical Panel Layout

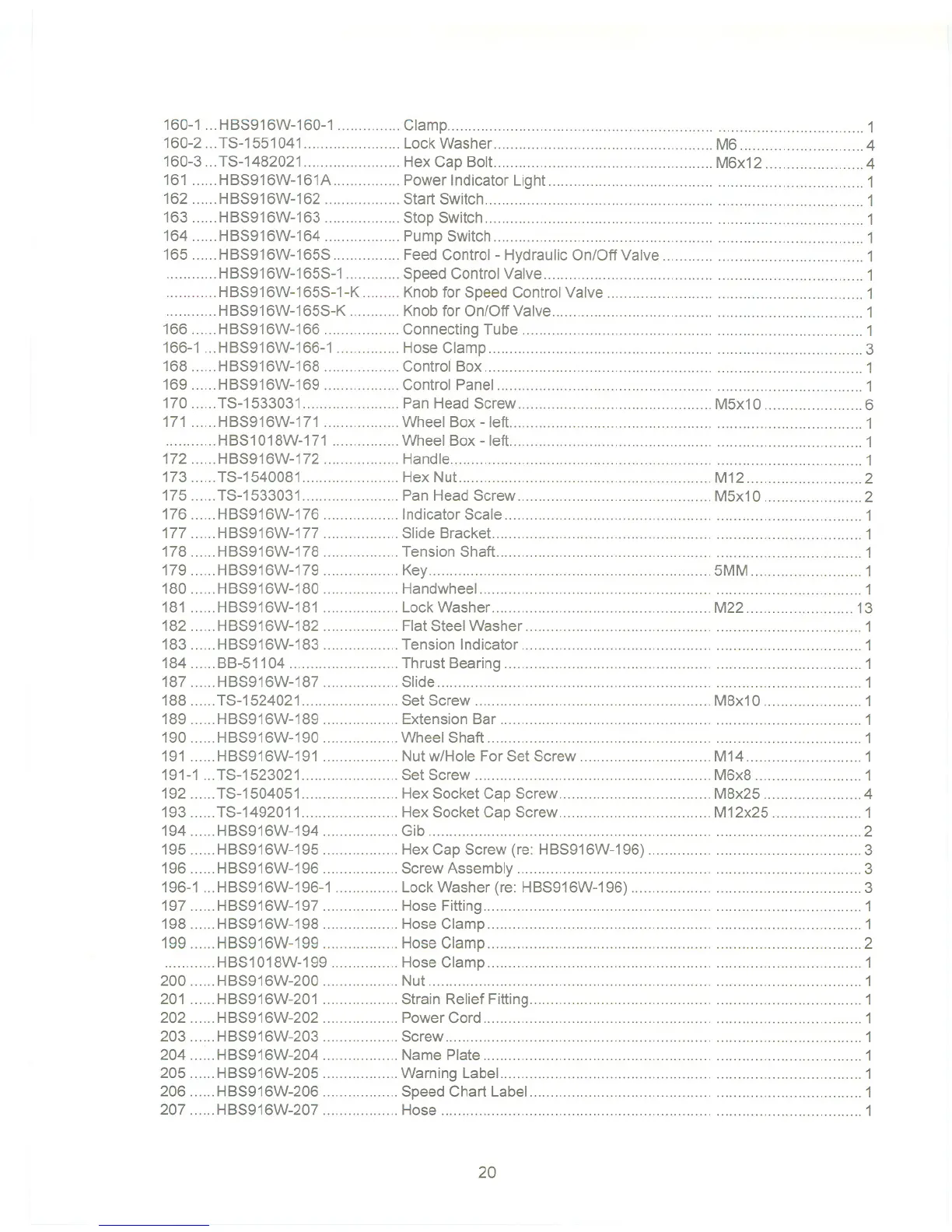

160-1 ... HBS916W-160-1 Clamp 1
160-2 ...TS-1551 041 Lock Washer M6 4
160-3... TS-1482021 Hex Cap Bolt M6x12 4
161 HBS916W-161A Power Indicator Light ""'''''''''''''''''''''''''''''' 1
162 HBS916W-162 Start Switch 1
163 HBS916W-163""'''''''''''''' Stop Switch 1
164 HBS916W-164 Pump Switch 1
165 HBS916W-165S FeedControl- HydraulicOn/OffValve """""" 1
HBS916W-165S-1 Speed Control Valve 1
HBS916W-165S-1-K Knobfor Speed ControlValve ""'''''''''''''''''''''''''''''' 1
HBS916W-165S-K Knobfor On/Off Valve 1
166 HBS916W-166 ConnectingTube 1
166-1 ...HBS916W-166-1 Hose Clamp """"""""""'''''''''''''' 3
168 HBS916W-168 Control Box 1
169 HBS916W-169.." Control Panel 1
170 TS-1533031 Pan HeadScrew M5x10 6
171 HBS916W-171 Wheel Box -left 1
HBS1018W-171 Wheel Box -left 1
172 HBS916W-172 Handle 1
173 TS-1540081 Hex NuL M12 2
175 TS-1533031 Pan HeadScrew M5x10 2
176 HBS916W-176 IndicatorScale """"""""'''''''''''''''''' 1
177 HBS916W-177 Slide Bracket """""""""'''''''''''''''' 1
178 HBS916W-178 Tension Shaft 1
179 HBS916W-179 Key 5MM 1
180 HBS916W-180 Handwheel 1
181 HBS916W-181 LockWasher M22 13
182 HBS916W-182 Flat SteelWasher 1
183 HBS916W-183 Tension Indicator 1
184 BB-51104 Thrust Bearing 1
187 HBS916W-187 Slide 1
188 TS-1524021 Set Screw M8x10 1
189 HBS916W-189 Extension Bar 1
190 HBS916W-190 Wheel Shaft 1
191 HBS916W-191 Nut w/Hole For Set Screw M14 1
191-1 ...TS-1523021 Set Screw M6x8 1
192 TS-1504051 Hex Socket Cap Screw M8x25 4
193 TS-1492011 Hex Socket Cap Screw M12x25 1
194 HBS916W-194 Gib ... 2
195 HBS916W-195 Hex Cap Screw (re: HBS916W-196) 3
196 HBS916W-196 ScrewAssembly 3
196-1 ...HBS916W-196-1 LockWasher (re: HBS916W-196) 3
197 HBS916W-197 Hose Fitting 1
198 HBS916W-198 Hose Clamp 1
199 HBS916W-199 Hose Clamp 2
HBS1018W-199 HoseClamp 1
200 HBS916W-200 Nut 1
201 HBS916W-201 Strain Relief Fitting 1
202 HBS916W-202 Power Cord 1
203 HBS916W-203 Screw 1
204 HBS916W-204 Name Plate 1
205 HBS916W-205 Warning Label 1
206 HBS916W-206 Speed Chart Label 1
207 HBS916W-207 Hose """""""'''''''''''''''''''' 1
20
