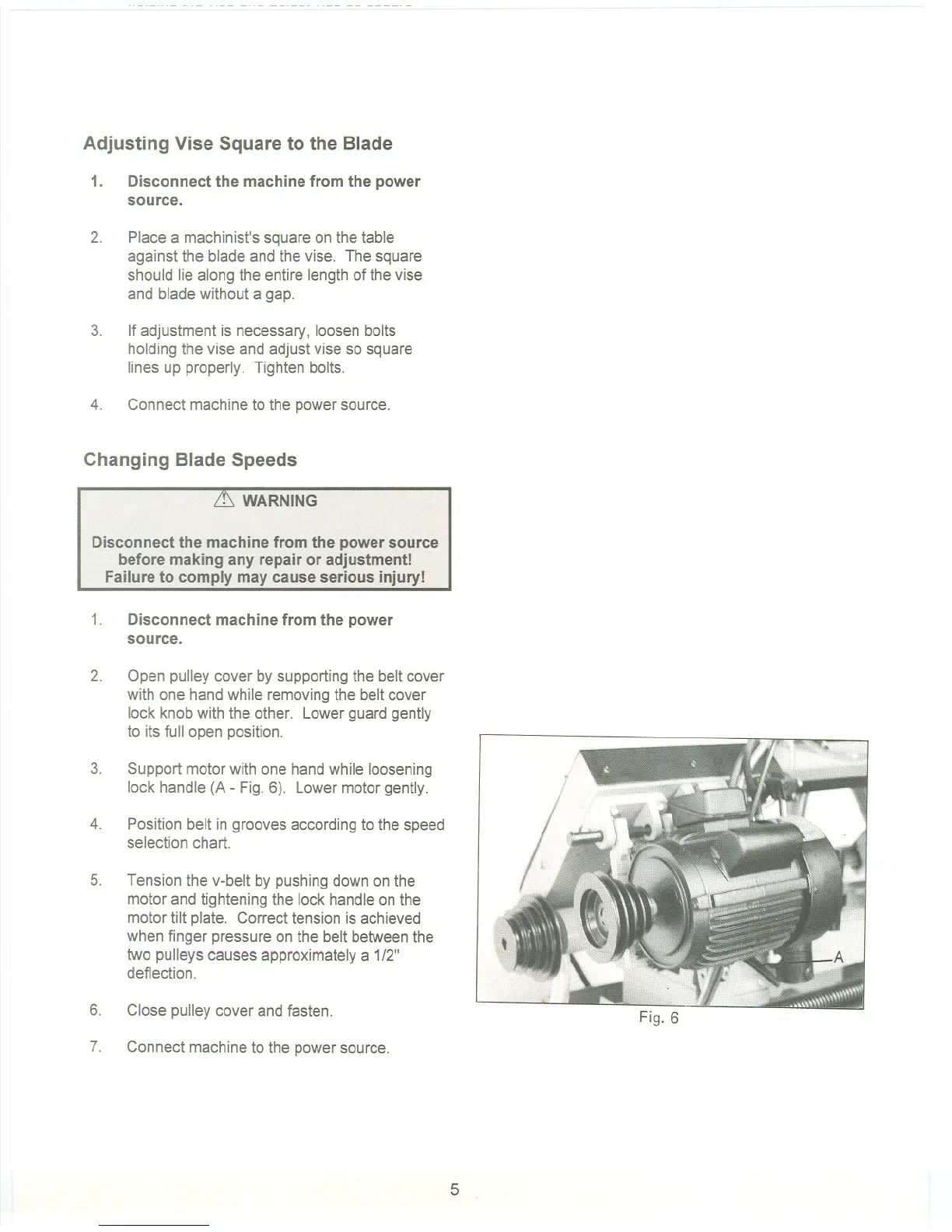

Adjusting Vise Square to the Blade
1.
Disconnect the machine from the power
source.
2.
Place a machinist's square on the table
against the blade and the vise. The square
should lie along the entire lengthof the vise
and blade without a gap.
3.
If adjustment is necessary, loosen bolts
holding the vise and adjust vise so square
lines up properly. Tighten bolts.
4.
Connect machine to the power source.
Changing Blade Speeds
it. WARNING
Disconnect the machine from the power source
before making any repair or adjustment!
Failure to comply may cause serious injury!
1.
Disconnect machine from the power
source.
2.
Open pulley cover by supporting the belt cover
with one hand while removingthe beltcover
lock knob with the other. Lower guard gently
to its full open position.
3.
Support motor with one hand while loosening
lock handle (A - Fig.6). Lower motor gently.
4.
Position belt in grooves according to the speed
selection chart.
5.
Tension the v-belt by pushingdown on the
motor and tightening the lock handle on the
motor tilt plate. Correct tension is achieved
when finger pressure on the belt betweenthe
two pulleys causes approximately a 1/2"
deflection.
6.
Close pulley cover and fasten.
Fig. 6
7.
Connect machine to the power source.
5
