Be sure to wear personal protection
gear such as safety goggles and ear
protection. Use a suitable dust
exhaust system.
The use of incorrect mains supply or a
damaged power cord can lead to
injuries caused by electricity.
4. Machine specifications
4.1 Technical data
JPT-310HH:
Planing
Jointing width max 307 mm
Table length 1400mm
Height above floor 850mm
Fence size 1100 x 150mm
Fence tilt 0 - 45°
Depth of cut max.3 mm
Thicknessing
Thicknessing width max 307 mm
Thicknessing height 4 - 225 mm
Thicknessing table length 540mm
Min. length of work piece 150mm
Feed speed 3.5 m/min(230V)
Feed speed 7 m/min(400V)
Depth of cut max. 4,5 mm
Number of knives 56 carbide inserts
Cutter block diameter 72 mm
No load speed n
o
5500 rpm
Dust port diameter 100mm
Overall (LxWxH) 1400x750x1000mm
Net Weight 230 kg
Mains 230V ~1/N/PE 50Hz
Output power 2,2 kW (3 HP) S1
Reference current 12.5 A
Extension cord (H07RN-F) 3x1,5mm²
Installation fuse protection 16A
Mains 400V ~3/PE 50Hz
Output power 2,2 kW (3 HP) S1
Reference current 5 A
Extension cord (H07RN-F) 4x1,5mm²
Installation fuse protection 16A
JPT-410HH:
Planing
Jointing width max 407 mm
Table length 1660mm
Height above floor 850mm
Fence size 1100 x 150mm
Fence tilt 0 - 45°
Depth of cut max.3 mm
Thicknessing
Thicknessing width max 407 mm
Thicknessing height 4 - 225 mm
Thicknessing table length 600mm
Min. length of work piece 150mm
Feed speed 7 m/min(400V)
Depth of cut max. 4,5 mm
Number of knives 72 carbide inserts
Cutter block diameter 72 mm
No load speed n
o
5500 rpm
Dust port diameter 120mm
Overall (LxWxH) 1660x870x1000mm
Net Weight 315 kg
Mains 230V ~1/N/PE 50Hz
Output power 2,2 kW (3 HP) S1
Reference current 13 A
Extension cord (H07RN-F) 3x1,5mm²
Installation fuse protection 16A
Mains 400V ~3/PE 50Hz
Output power 3 kW (4 HP) S1
Reference current 6,5 A
Extension cord (H07RN-F) 4x1,5mm²
Installation fuse protection 16A
4.2 Noise emission
Determined according to EN 861
(Inspection tolerance 4 dB)
Work piece pine wood:
W=100mm, L=1000mm, moisture 8,5%
Planing:
Acoustic power level
(according to EN ISO 3746):
Idling LwA 81,7 dB(A)
Operating LwA 94,3 dB(A)
Acoustic pressure level
(according to EN ISO 11202):
Idling LpA 72,1 dB(A)
Operating LpA 85,9 dB(A)
Thicknessing:
Acoustic power level
(according to EN ISO 3746):
Idling LwA 80,7 dB(A)
Operating LwA 87,8 dB(A)
Acoustic pressure level
(according to EN 11202):
Operating position 1:
Idling LpA 69,2 dB(A)
Operating LpA 85,7 dB(A)
Operating position 2:
Idling LpA 70,0 dB(A)
Operating LpA 89,5 dB(A)
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels.
Although there is a correlation
between emission and imission levels,
these do not constitute a basis for
determining the necessity of additional
safety measures.
Workplace conditions which could
influence the noise imission level
include the duration of resonance,
spatial particulars, other noise sources
etc. For example, the number of
machines and other work being
performed. The permissible workplace
levels can vary from country to
country.
This information is intended to allow
the user to make a better estimation of
the hazards and risks involved.
4.3 Dust emission
The planer thicknesser has been dust
emission inspected.
JPT-310HH:
At an air velocity of 20 m/s on the dust
port dia 100mm:
Vacuum pressure 900 Pa
Volume flow 565 m³/h
JPT-410HH:
At an air velocity of 20 m/s on the dust
port dia 120mm:
Vacuum pressure 950 Pa
Volume flow 810 m³/h
The machine meets a workplace dust
emission limit of 2 mg/m³.
4.4 Content of delivery
Planer thicknesser assembly
Jointer fence assembly.
Cutter block guard
5 spare carbide inserts
10 spare Torx-screws
2 Torx screw drivers
Operating manual
Spare parts list
4.5 Machine description

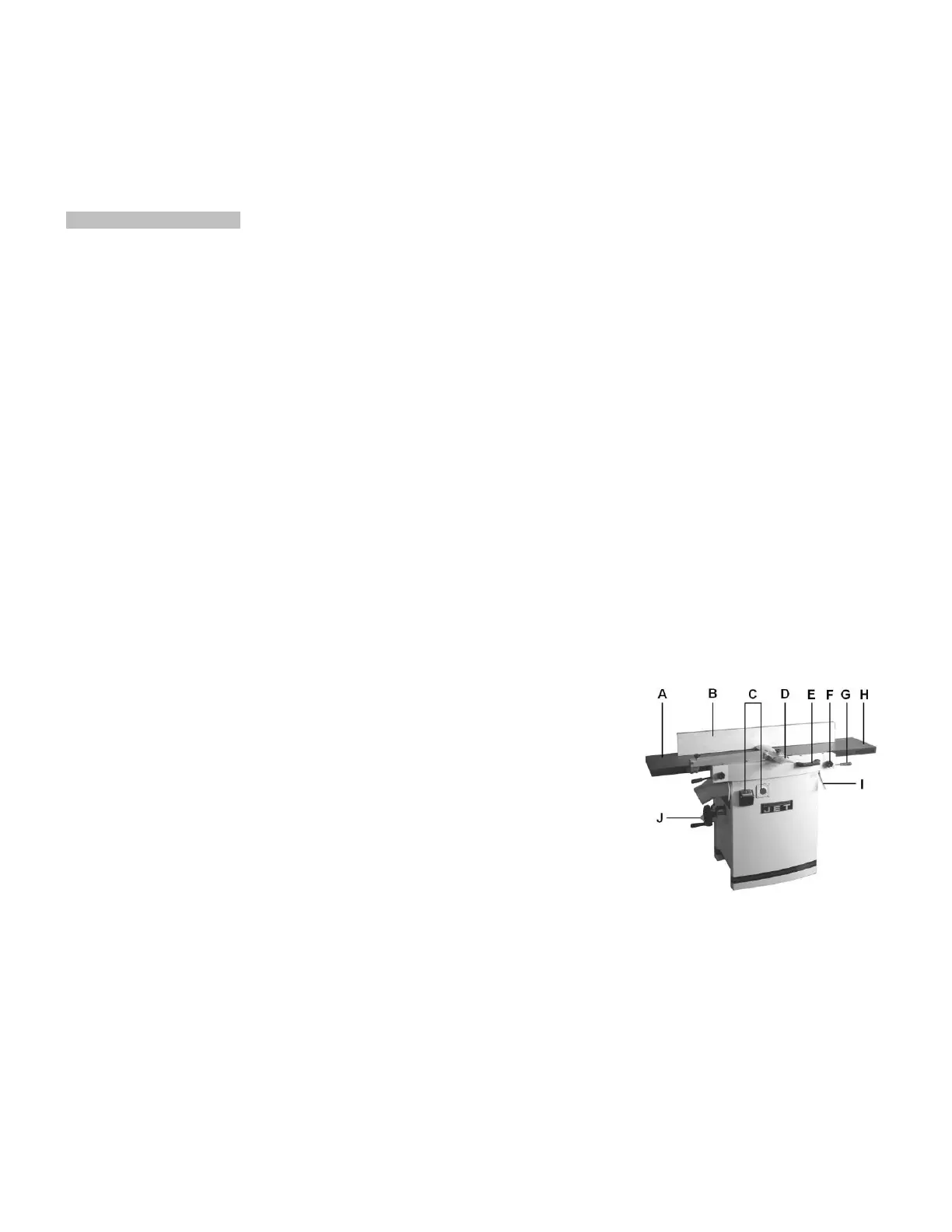

Fig 1
A….Outfeed table
B….Jointer fence
C….ON/OFF switch, E-stop button
D….Cutterblock guard
E.....Table tilt handle
F….Table adjustment lock
G….Table adjustment handle
H….Infeed table
I…..Table-cabinet lock
J…..Mains plug
