28

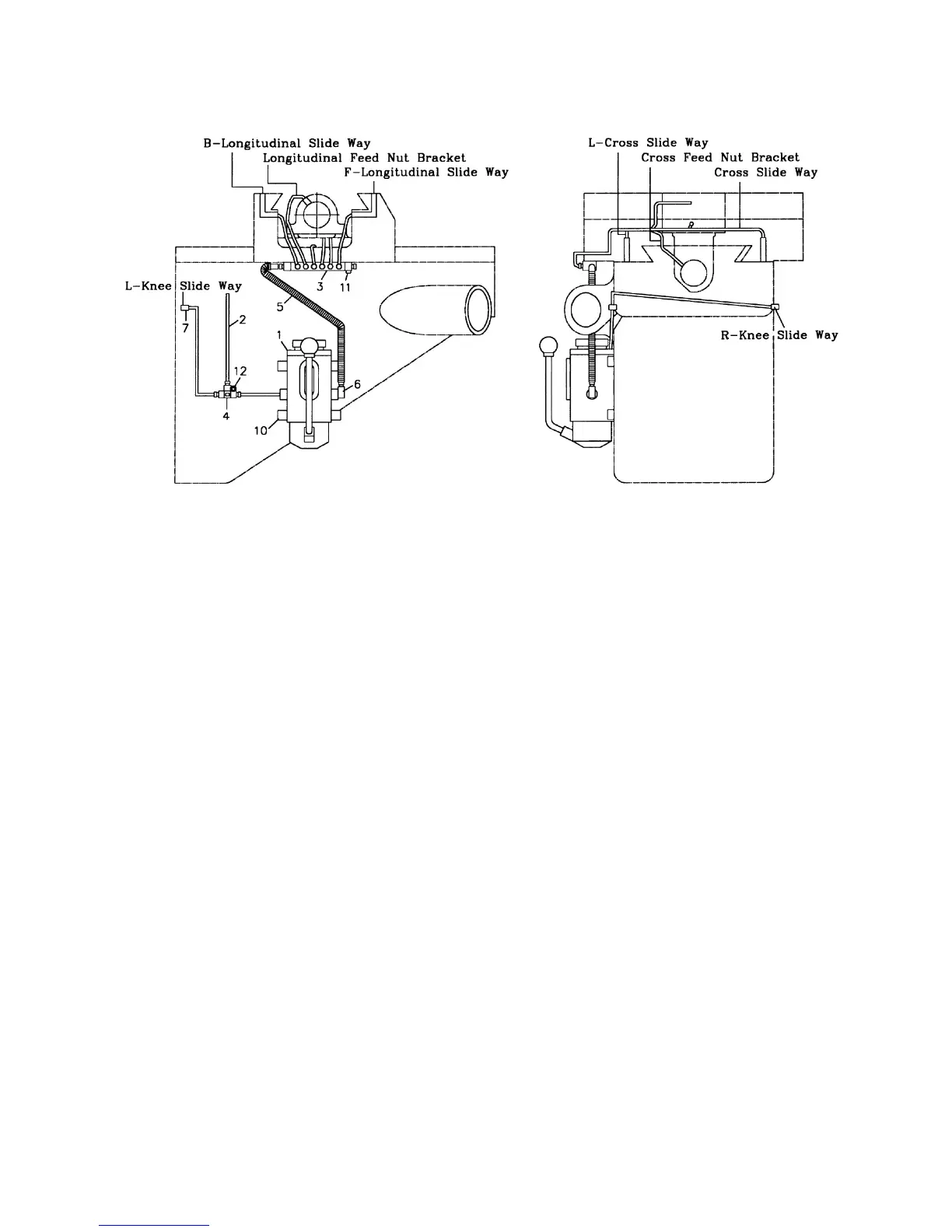

13.5.1 JVM-836 One Shot Lubrication System – Exploded View
13.5.2 One Shot Lubrication System – Parts List
Index No Part No Description Size Qty
1 ................ JVM836-HP ............... Hand Oiling Pump.................................................... ...................................... 1
2 ................ JVM836-ALMP .......... Aluminum Pipe......................................................... Ø4 ................................. 1
3 ................ JVM836-DB ............... Oil Regulating Distributor ......................................... ...................................... 1
4 ................ JVM836-TJ ................ T-Joint ...................................................................... Ø4 ................................. 1
5 ................ JVM836-FST ............. Flexible Steel Tube .................................................. ...................................... 1
6 ................ JVM836-CJ ............... Check Joint .............................................................. Ø4-1/8PT ...................... 2
7 ................ JVM836-EJ................ Elbow Joint .............................................................. Ø4-1/8PT ...................... 2
10 .............. TS-1514021 .............. Hex Socket Cap Screw ............................................ M6x16 ........................... 4
11 .............. TS-1503061 .............. Hex Socket Cap Screw ............................................ M6x25 ........................... 2
12 .............. TS-1502061 .............. Hex Socket Cap Screw ............................................ M5x25 ........................... 1
To Next Page
